Mixer elements

3-wing mixing propeller 1.4404 mirror finish polished

3- blade wing mixing propeller cast propeller marine propeller SS316 mirror finish polished
Polished propellers are the clear choice wherever an extremely smooth surface finish is required.
Ideal for pharmaceutical, food and other sanitary applications.
The design produces downward fluid motion with clockwise rotation as viewed from above.
Our sanitary grade propellers are investment cast, finish machined to tight tolerances, polished and buffed.
Mirror finish polished propellers for screws at the end of shaft. Also aviable with hole.
Available as blank, with a thread or with a fitting after arrangement.

from £ 268.52

excl. 20% tax

2-arm cup stirrer Ø 600mm for containers

2-arm cup stirrer IBC-BEC-600 Ø 600mm for container agitators
Material stainless steel 1.4404
The cup stirrer is fixed in the shaft end by means of an M16 grub screw.
The cup stirrer can be inserted through container openings Ø 140 mm.
The agitator blades fold apart automatically by centrifugal force to Ø 600 mm.
The shown polishing is the standard for these stirring elements.
The very stable, solid stirring arms can be dismantled without tools. This ensures easy cleaning.
There are no screws in the product chamber.
Maximum speed 300 rpm.

£ 610.62

excl. 20% tax

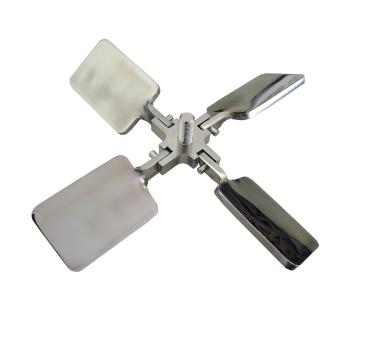

4-blade folding stirrer Ø 350mm for container stirrer.

4-arm folding stirrer Ø 350mm for container agitators / stirrer / mixer
Material stainless steel 1.4571/1.4404
The stirring element is fixed in the shaft end by means of an M16 grub screw.
The stirring element can be inserted through container openings Ø 140 mm.
The stirring blades fold out automatically by centrifugal force to Ø 350 mm.
The stirring blades can be dismantled without tools. This ensures easy cleaning.
No screws in the product chamber.
Very stable design with 8 mm blade thickness.
Maximum speed 300 rpm.
Also available with food grade surface (polished).

£ 542.84

excl. 20% tax

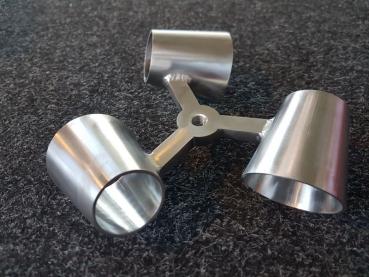

Cup stirrer type SRT-Fluidjet material 1.4571 / 1.4404 with dynamic pressure mixing principle.

Cup stirrer type SRT-Fluidjet material 1.4571 / 1.4404 with dynamic pressure mixing principle.
Even at low speeds sufficient circulation is achieved to ensure efficient and gentle mixing.
Hardly any shear is introduced into the product.
Standard M16 female thread Ø 200mm to Ø 400mm
Standard M20 female thread Ø 500mm to Ø 600mm
Advantages:
Almost no air entry
Almost no dripping
Low stirring times
Almost no foaming
Stirring of high viscosities with low power requirement

Highly polished (mirror polished) version on request.
Also available height adjustable on the shaft.

Price on request

1 to 7 (from a total of 7)

Propeller Ø			Standard thread
100mm			M16
125mm			M16
150mm			M16
175mm			M16
200mm			M16
225mm			M16
250mm			M16

Propeller Ø			Standard inner thread
100mm			M16
125mm			M16
150mm			M16
175mm			M16
200mm			M16
225mm			M16
250mm			M16
