109L stainless steel agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse
Technical description:

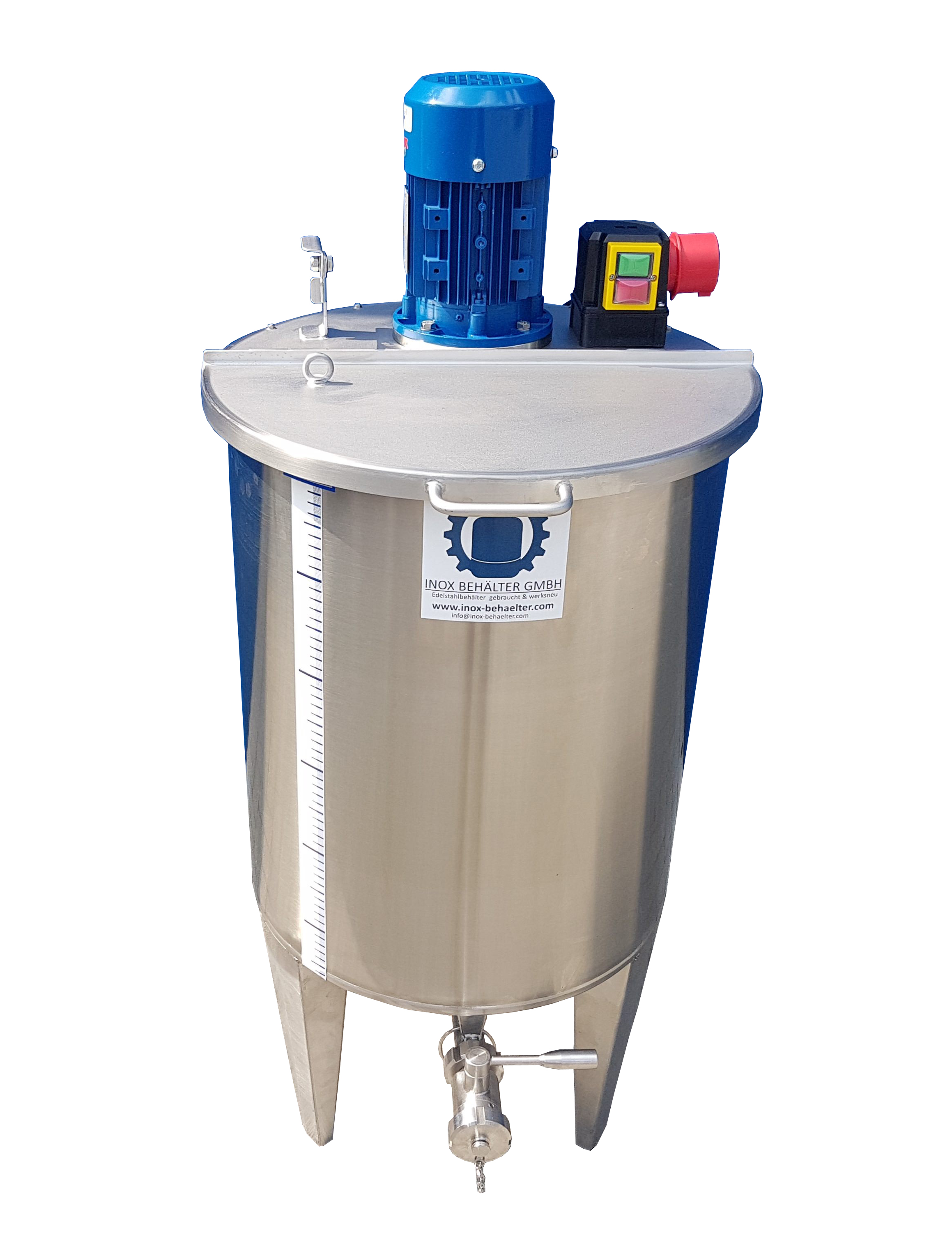

Brand new stainless steel agitator vessel
Suitable for liquids up to 500mPas
Type: CILC100BRWP
Volume: 109L
Type: Vertical design on feet
Design: Single wall
Material (in contact with product): 1.4301 stainless steel (AISI304)
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: hinged cover, 1/2 screwed, 1/2 hinged

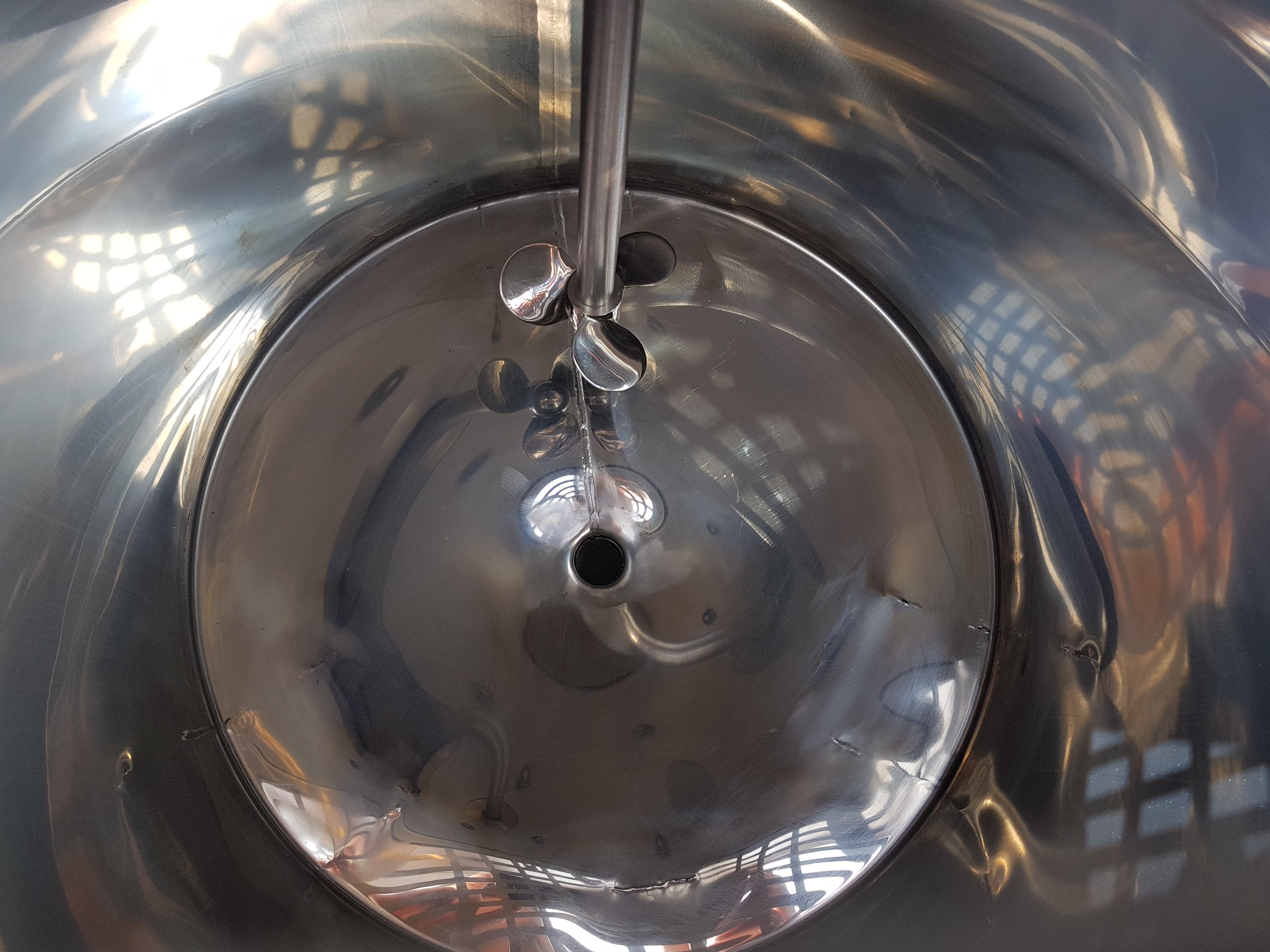

Bottom: conical bottom with pipe DN25 DIN11851 pulled forward
Tank dimensions:
Container diameter: 477mm
Total height: 930mm (plus agitator motor)
Cyl. height: 600mm
Height of the feet: 330mm
Equipment:

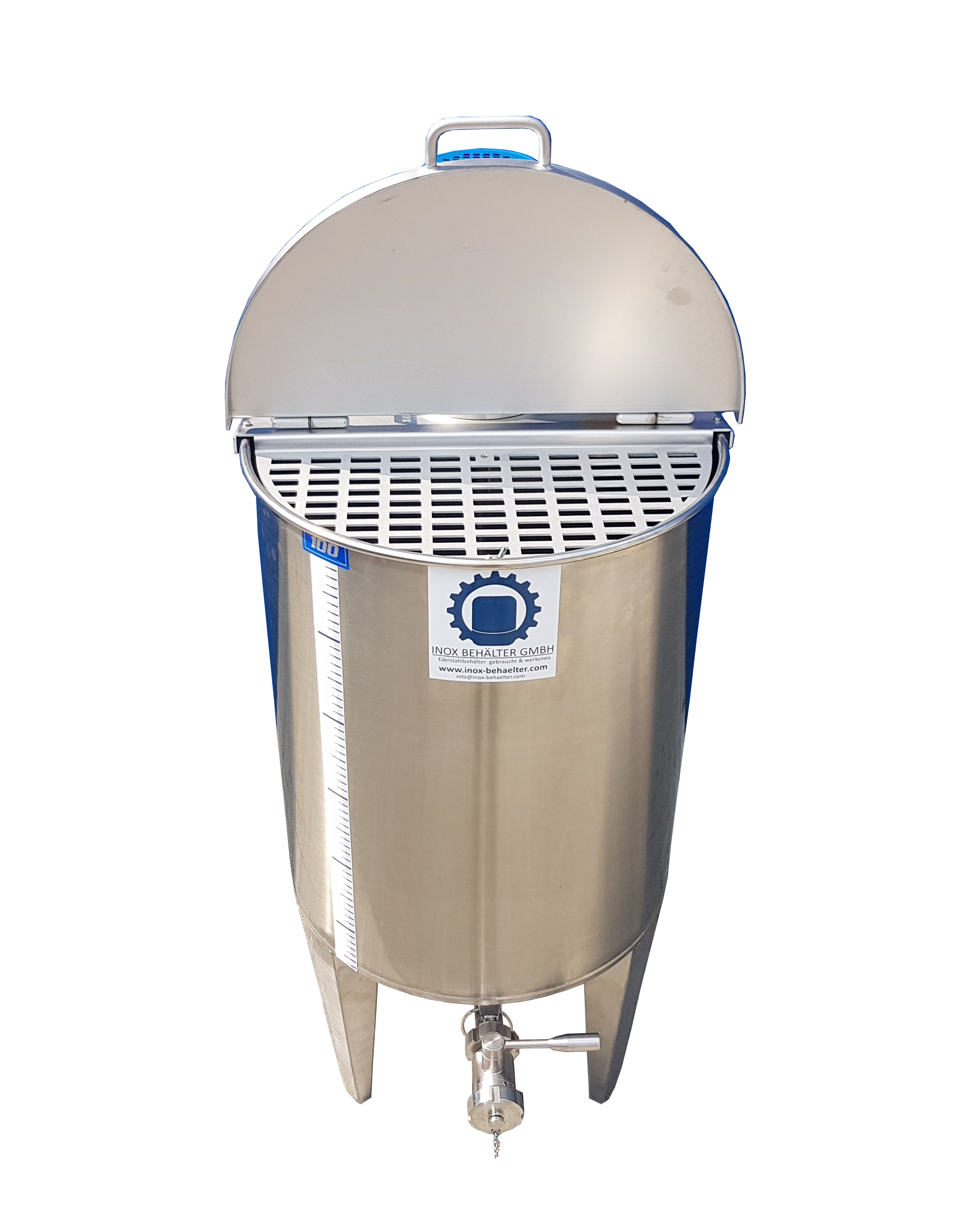

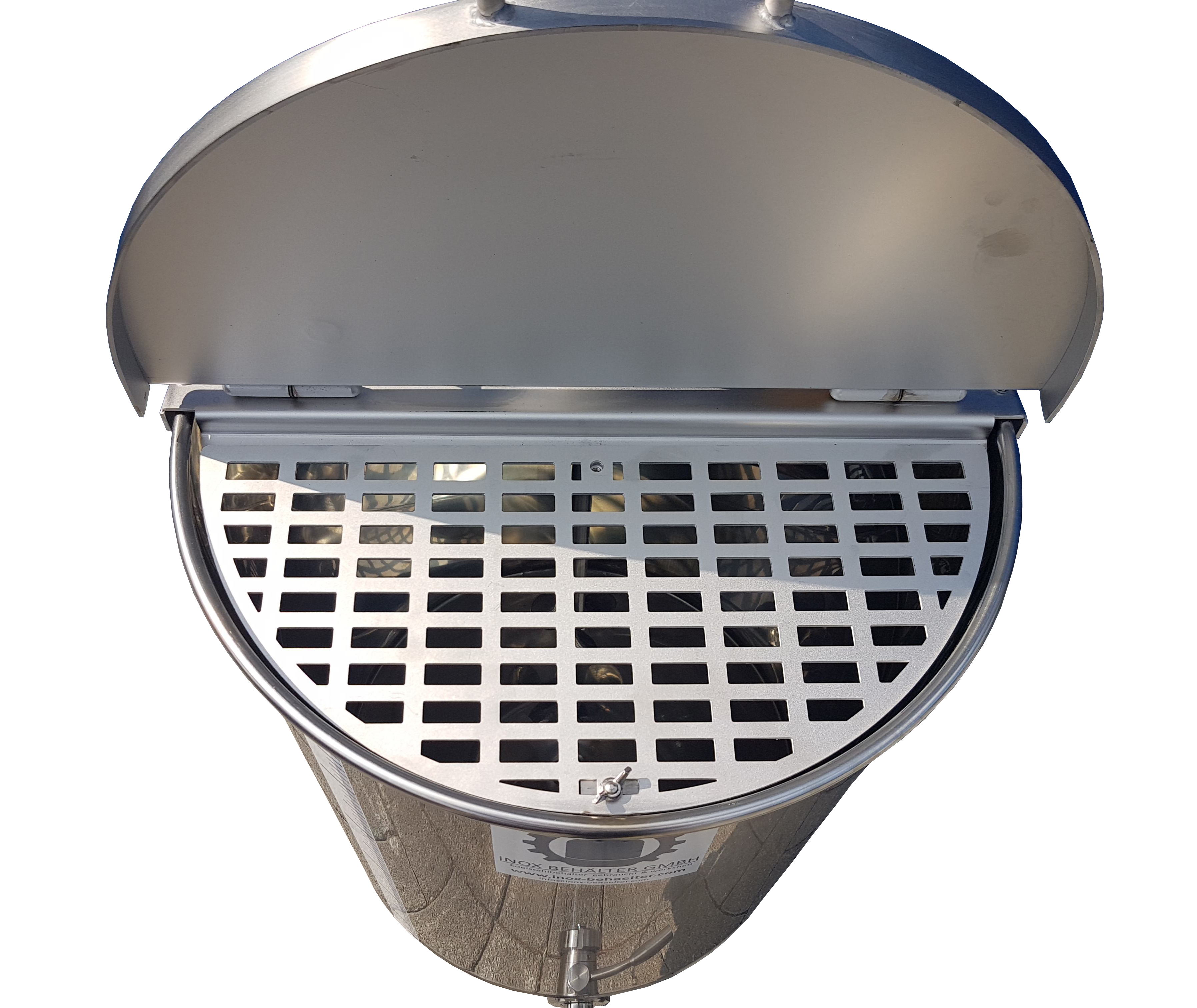

-Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
-Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851
Agitator:
Propeller agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRT0-25-1000
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Massive agitator shaft attached to the stirrer motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø125mm screwed in at the end of the agitator shaft
-Stainless steel flange with V-ring seal, EPDM
Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, phase inverter, zero voltage trigger
Option for: Variable speed control by attached frequency converter: +625 EUR
Option for: outlet and ball valve DN50 DIN11851: +80 EUR
