*Some products require additional shipping charges*

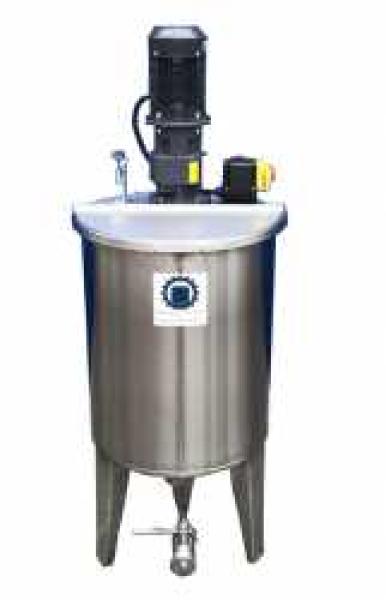

109L stainless steel agitator tank
An offer from INOX Behälter GmbH
http://www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp
Technical description:
Brand new stainless steel agitator vessel
Suitable for liquids up to 2000mPas
Type: CILC100BRWS
Volume: 109L
Type: Vertical design on feet
Design: Single wall
Material (in contact with product): 1.4301 stainless steel (AISI304)
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: hinged cover, 1/2 screwed, 1/2 hinged
Bottom: conical bottom with pipe DN25 DIN11851 pulled forward
Tank dimensions:
Container diameter: 477mm
Total height: 930mm (plus agitator motor)
Cyl. height: 600mm
Height of the feet: 330mm
Equipment:

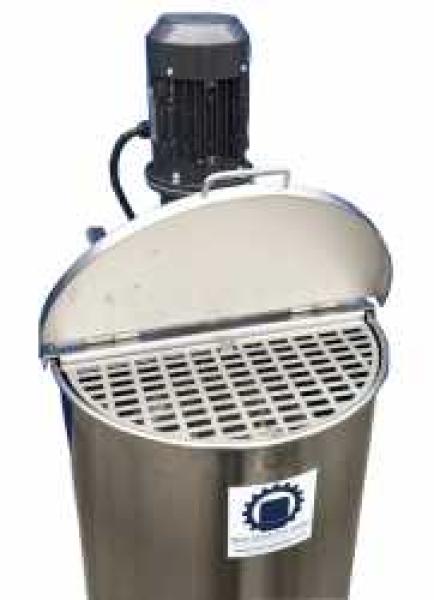

-Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
-Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851
Agitator:
Slow running gear agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRTGMK/0.12-100
Power: 0,12 kW
Speed: 100 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the gear motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece of 3-blade mixing propeller Ø175mm screwed in at the end of the agitator shaft. Mixing propeller made of cast stainless steel, surface mirror finish polished
-Stainless steel flange with V-ring seal, EPDM
Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, phase inverter, zero voltage trigger
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: outlet and ball valve DN50 DIN11851: +80 EUR
