337L stainless steel agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp
Technical description:

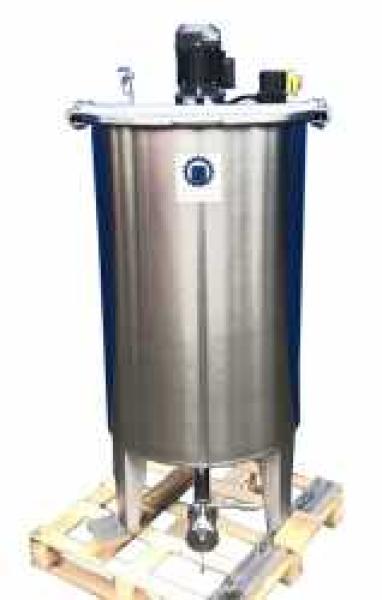

Brand new stainless steel agitator vessel
Suitable for liquids up to 500mPas
Type: CILC300RWP
Volume: 337L
Dimensions approx.: Ø 650mm x cyl. height 1000mm
Total height approx.: 1390mm (plus agitator motor)
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA (IIId), outside satin
Weld seams in the container pickled, passivated and brushed
-Upright design on three feet

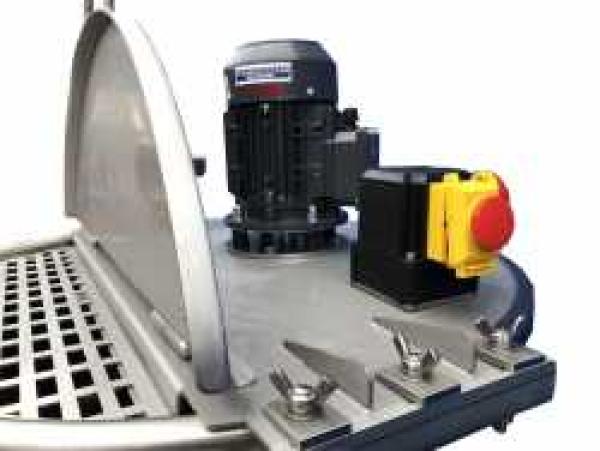

-Top shelf: hinged lid, 2/3 screwed, 1/3 hinged
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable

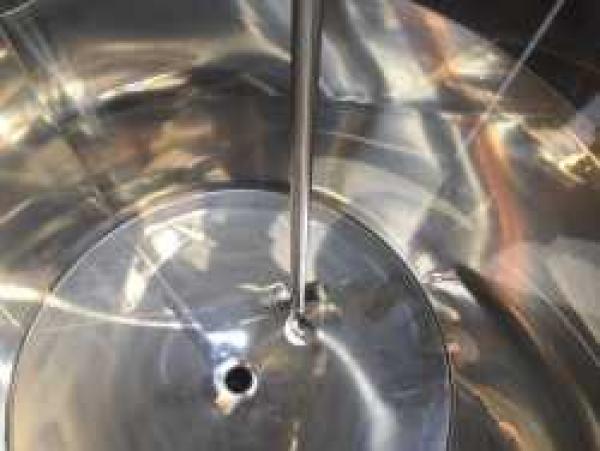

-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Outlet fitting ball valve DN50 DIN11851

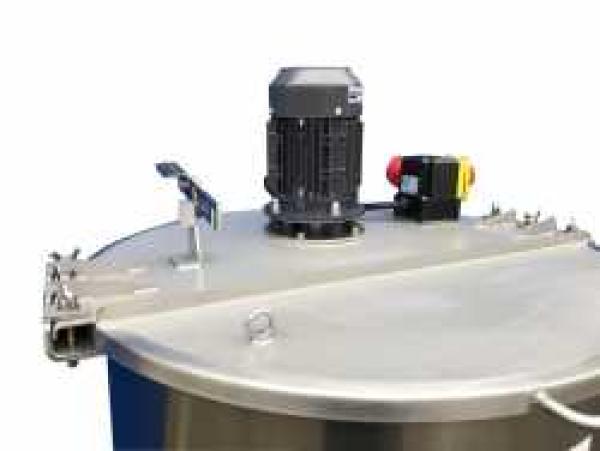

-Agitator flange on the upper bottom
-Type plate
Agitator:
Propeller agitator for low viscosity liquids
Type: SRT0-37-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,37 kW
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø 125mm at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, gasket V-ring, EPDM, motor oscillating on neoprene rubber metal buffers
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +300 EUR
