510L stainless steel agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp
Technical description:

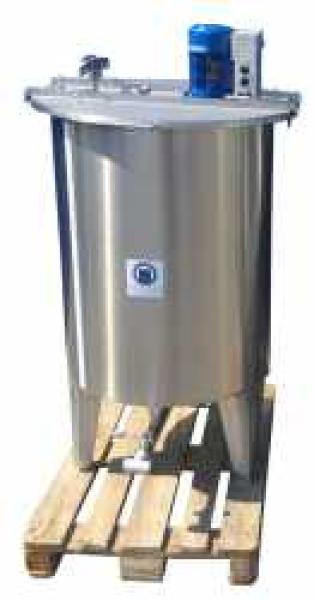

Brand new stainless steel agitator vessel
Suitable for liquids up to 600mPas
Type: CILC500RWP
Volume: 510L
Dimensions approx.: Ø 790mm x cyl. height 1000mm
Total height approx.: 1400mm (plus agitator motor
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA (IIId), outside satin
Weld seams in the container pickled, passivated and brushed
-Upright design on three feet

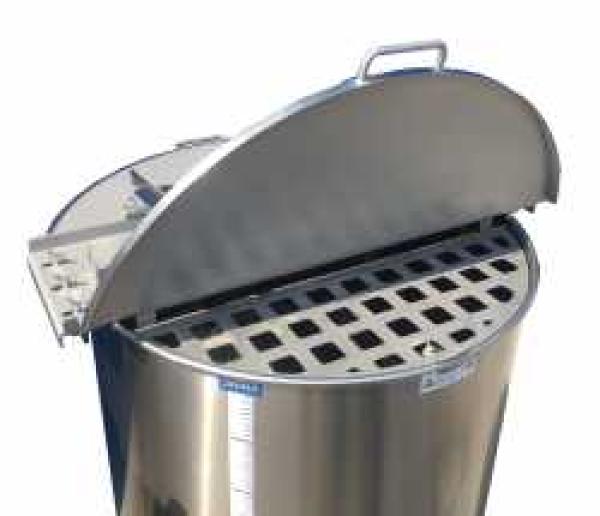

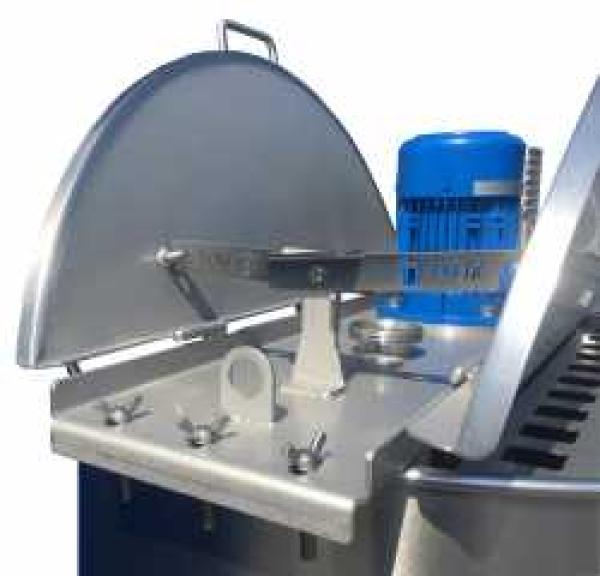

-Top shelf: hinged lid, central cross-member with 2 hinged lid halves with latching function (can be locked in 90° open position)
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable

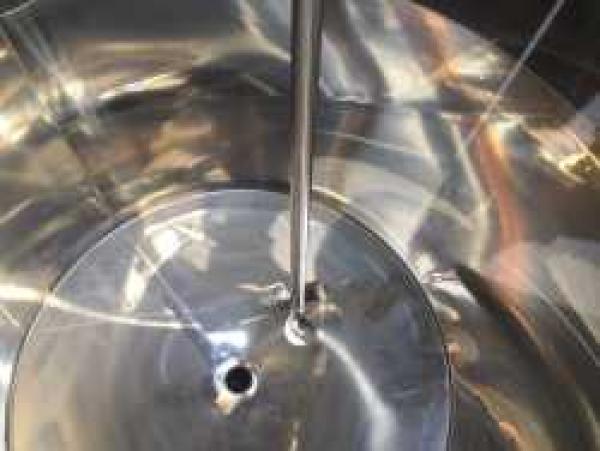

-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Drainage fitting ball valve 1DN50 DIN11851
-Agitator flange on the upper bottom
-1x spare socket DN50 DIN11851 on the top with blind cap
-Type plate
Agitator:
Propeller agitator for low viscosity media
Type: SRT0-75-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø 150mm at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, sealing V-ring, EPDM
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Option for: Variable speed control by attached frequency converter: +745 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR
