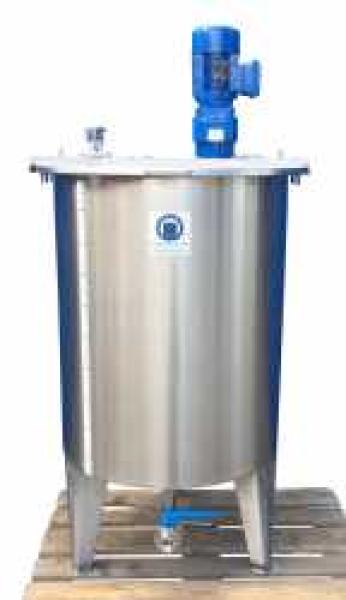

510L stainless steel agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp
Technical description:
Brand new stainless steel agitator vessel
Suitable for liquids up to 3000mPas
Type: CILC500RWS
Volume: 510L
Dimensions approx.: Ø 790mm x cyl. height 1000mm
Total height approx.: 1650mm
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA, outside satin
Weld seams in the container pickled, passivated and brushed, outside brushed
-Upright design on three feet

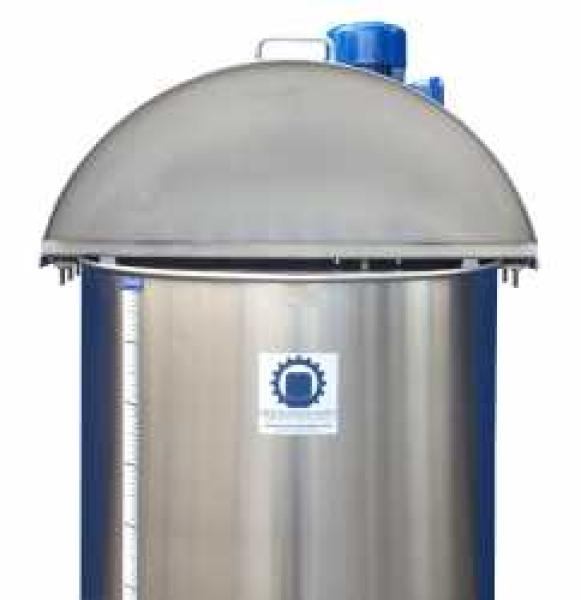

-Top shelf: hinged lid, central cross-member with 2 hinged lid halves with latching function (can be locked in 90° open position)
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable
-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Outlet fitting ball valve DN50 DIN11851
-Agitator flange on the upper bottom
-1x spare socket DN50 DIN11851 on the top with blind cap
-Type plate
Agitator:
Beam agitator
Type: SRTGMK/0.75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kW
Speed: 190 rpm
Voltage: 3PH 400V
-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the agitator motor with sleeve coupling
-Agitator shaft balanced for concentricity in the speed range
-2 pieces 2-blade beam stirrer Ø 395mm height adjustable on the shaft, weld seams stained, passivated and brushed
-Stainless steel flange, sealing V-ring, EPDM
Agitator control:
CEE plug switch on the container with on/off switch, phase inverter, zero voltage release and emergency stop
Option for: Variable speed control by attached frequency converter: +745 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp
Technical description:
Brand new stainless steel agitator vessel
Suitable for liquids up to 3000mPas
Type: CILC500RWS
Volume: 510L
Dimensions approx.: Ø 790mm x cyl. height 1000mm
Total height approx.: 1650mm
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA, outside satin
Weld seams in the container pickled, passivated and brushed, outside brushed
-Upright design on three feet
-Top shelf: hinged lid, central cross-member with 2 hinged lid halves with latching function (can be locked in 90° open position)
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable
-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Outlet fitting ball valve DN50 DIN11851
-Agitator flange on the upper bottom
-1x spare socket DN50 DIN11851 on the top with blind cap
-Type plate
Agitator:
Beam agitator
Type: SRTGMK/0.75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kW
Speed: 190 rpm
Voltage: 3PH 400V
-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the agitator motor with sleeve coupling
-Agitator shaft balanced for concentricity in the speed range
-2 pieces 2-blade beam stirrer Ø 395mm height adjustable on the shaft, weld seams stained, passivated and brushed
-Stainless steel flange, sealing V-ring, EPDM
Agitator control:
CEE plug switch on the container with on/off switch, phase inverter, zero voltage release and emergency stop
Option for: Variable speed control by attached frequency converter: +745 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR
For more information, please visit the home page for this product.
