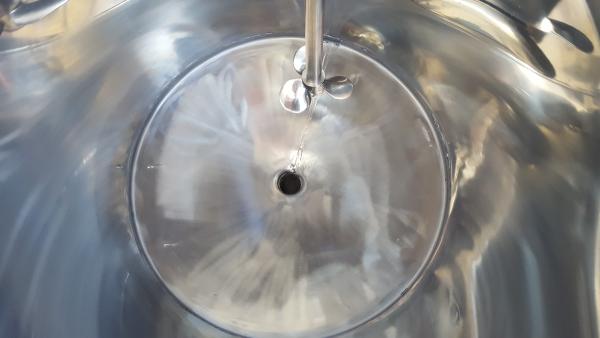

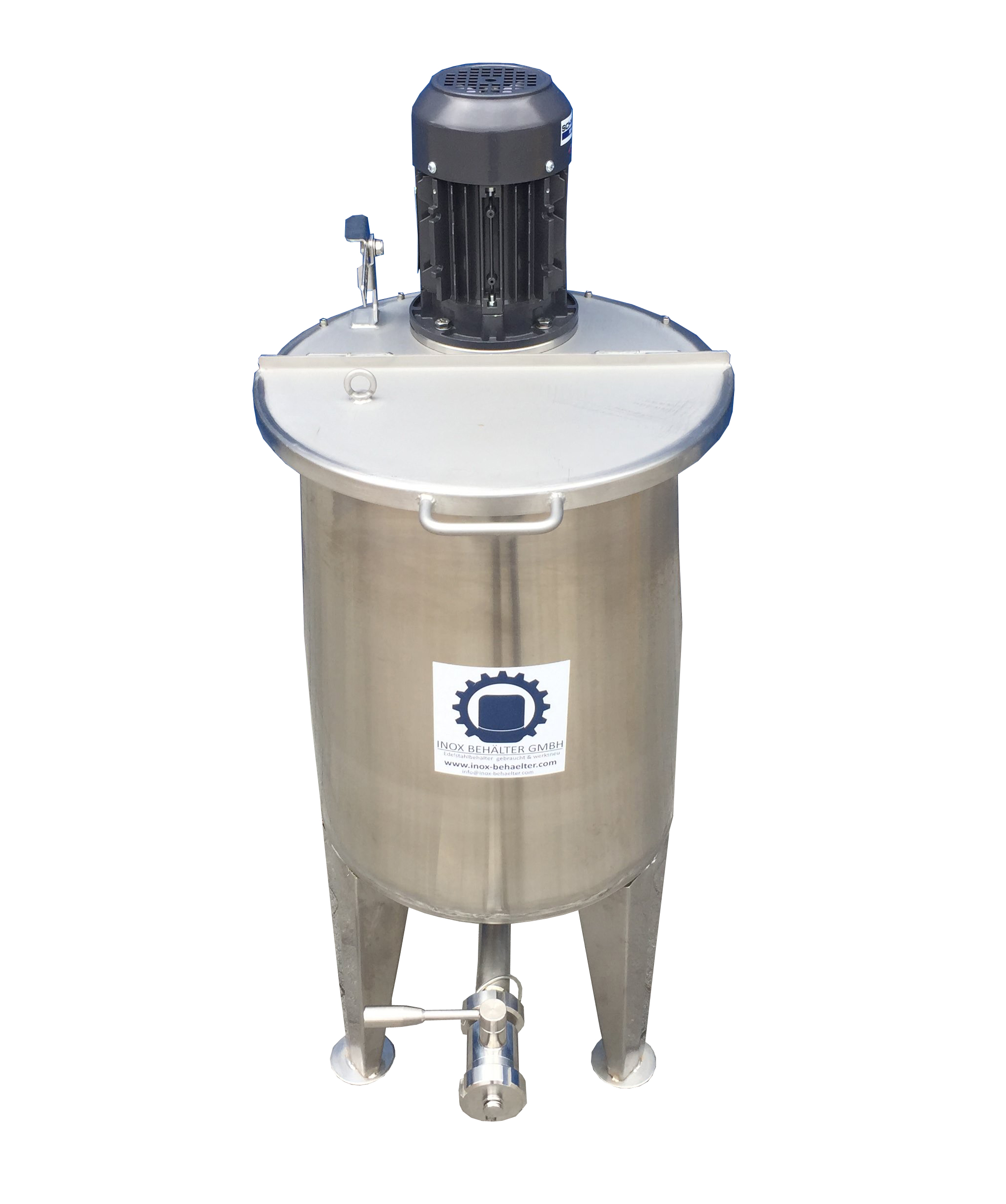

57L Stainless steel agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse
Technical description:
Brand new stainless steel agitator vessel
Suitable for liquids up to approx. 500mPas
Type: CILC50RWP
Volume: 57L
Type: Vertical design on feet
Design: Single wall
Material (in contact with liquid): 1.4301 stainless steel
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: Hinged cover, 1/2 screwed, 1/2 hinged
Bottom: Conical bottom with pipe drawn forward
Tank dimensions:
Tank diameter: 384mm
Total height: 830mm (plus agitator motor)
Cyl. height: 500mm
Height of the feet: 330mm
Equipment:

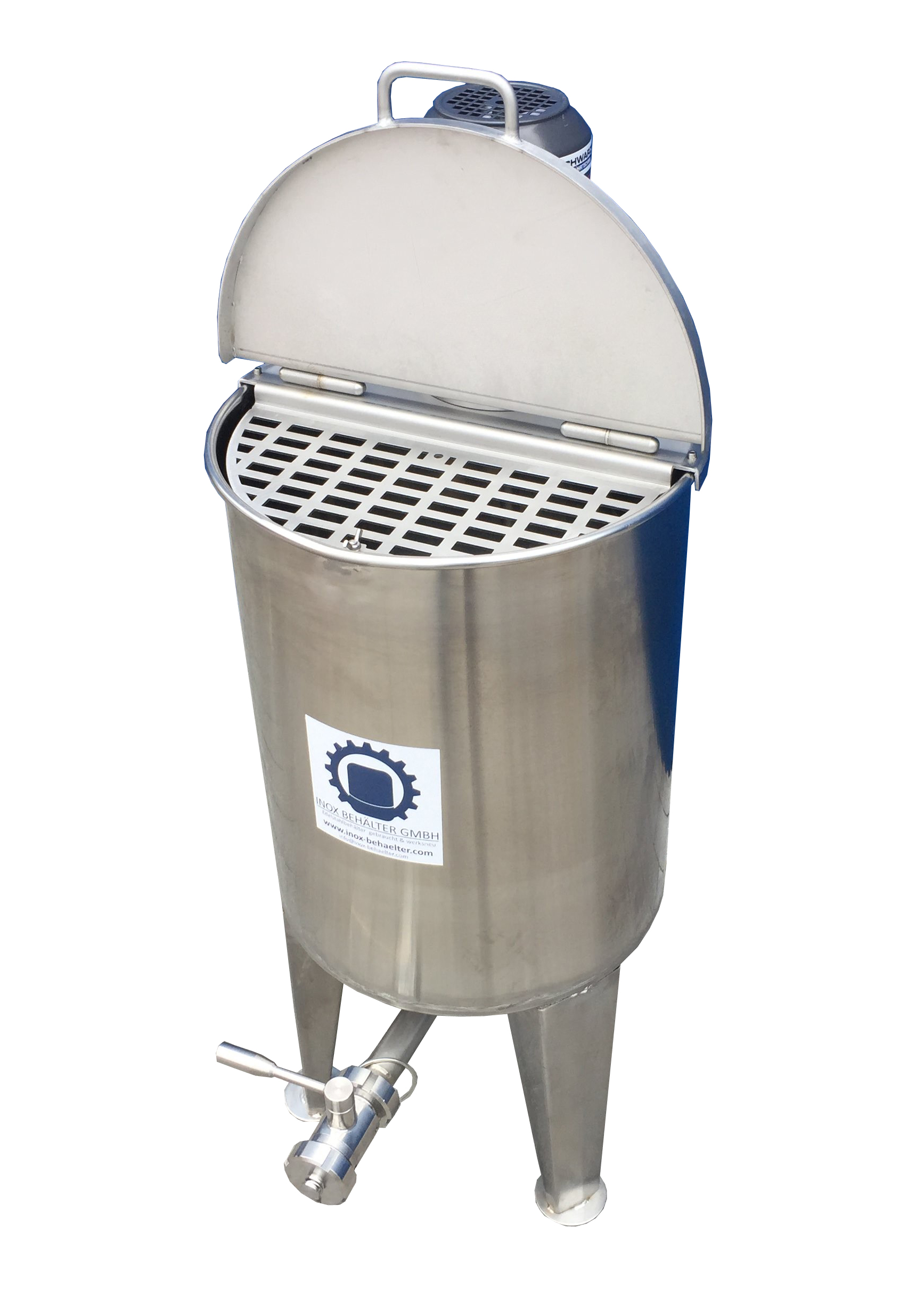

- Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
- Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851

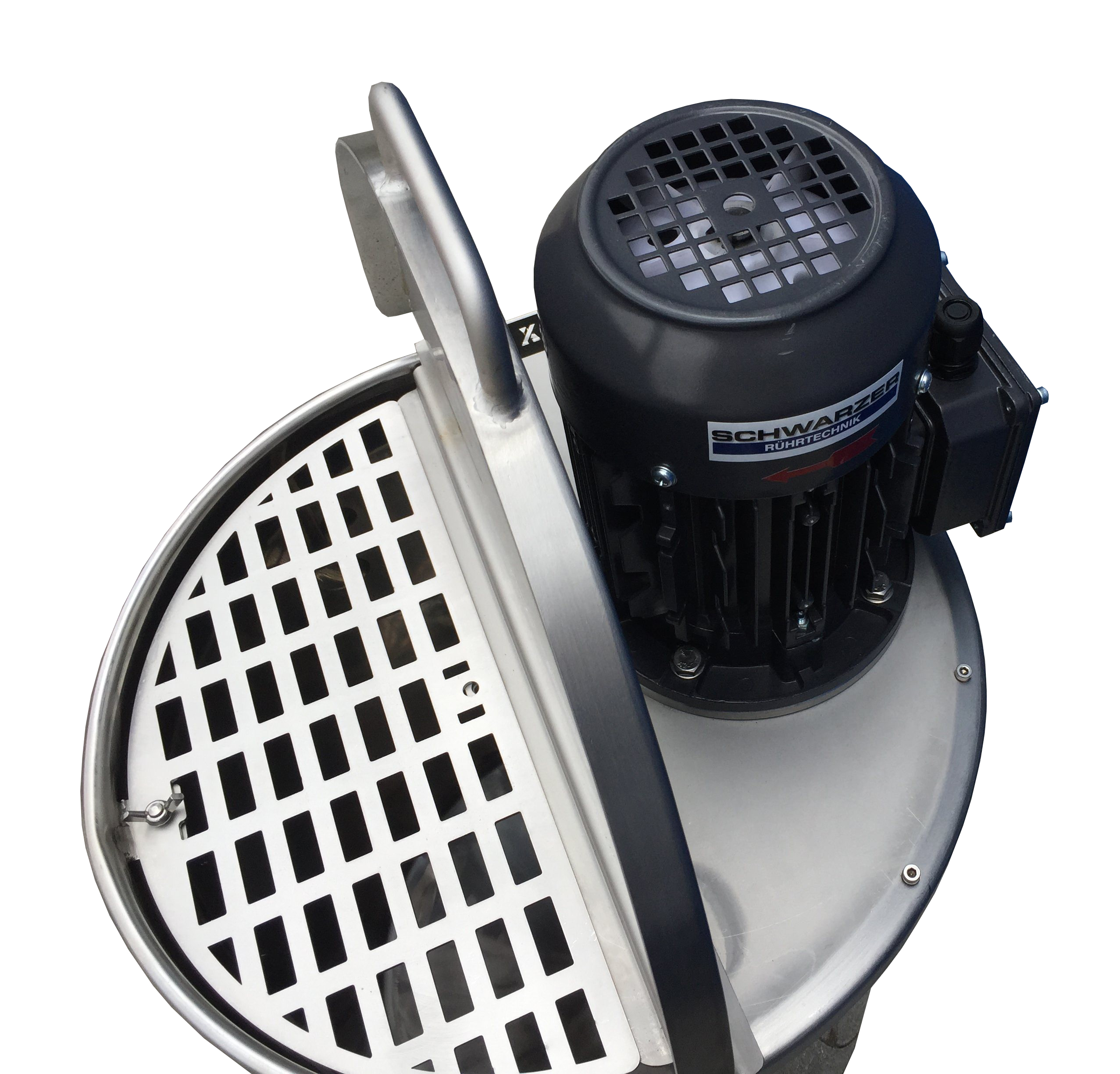

Agitator:
Propeller agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRT0-12-750
Power: 0,12 kW
Speed: 690 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø100mm screwed in at the end of the agitator shaft
-Stainless steel flange with V-ring seal, EPDM
Option for: Variable speed control by attached frequency converter: +625 EUR
