123L electrically heated agitator tank
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw
Technical description:

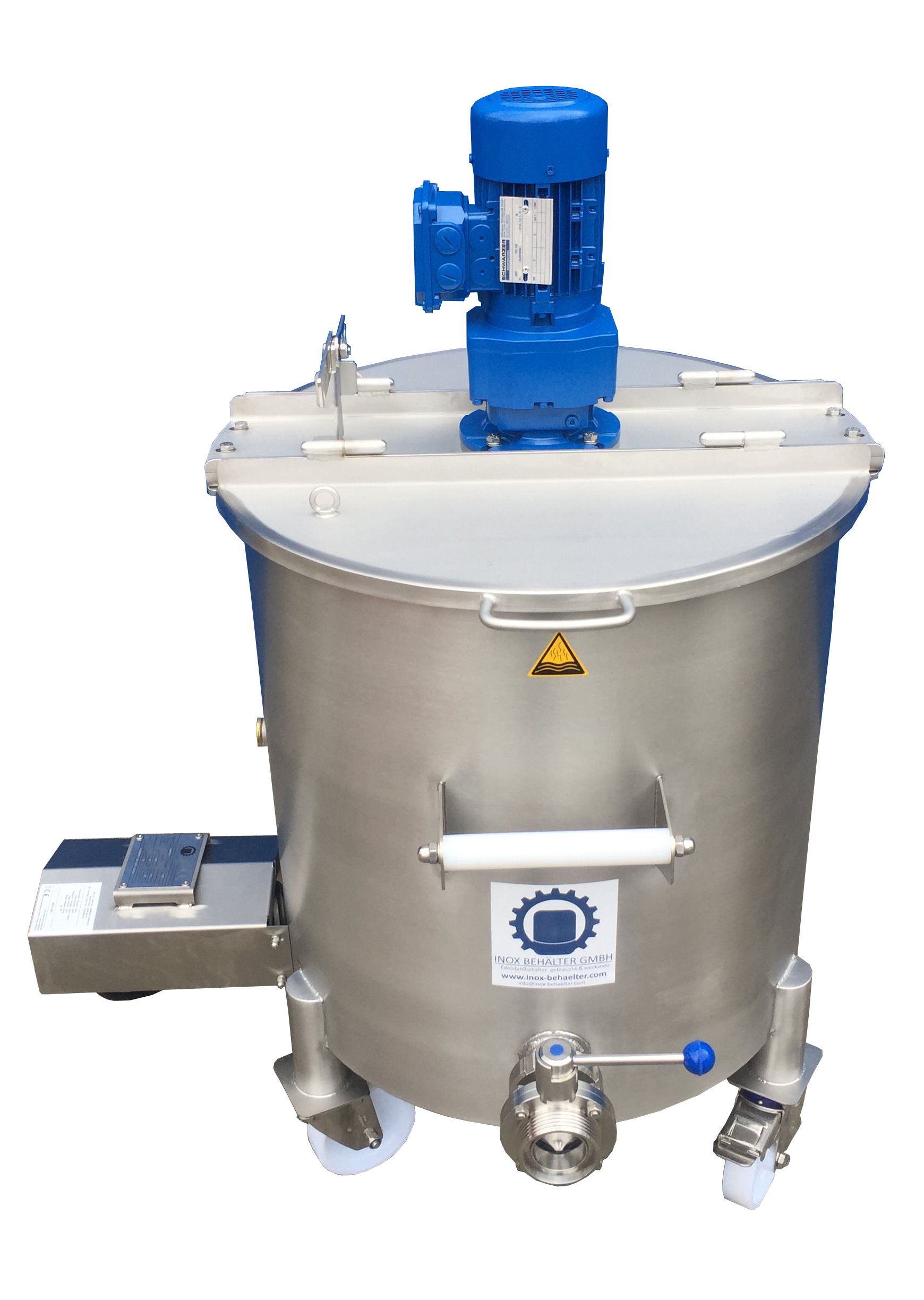

Factory new electrically heated stainless steel agitator vessel
EBB120RWA
Volume: 123L
Dimensions approx.: Ø 600mm x cyl. height 540mm
Total height: 860mm
Material: 1.4301 stainless steel V2A
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers

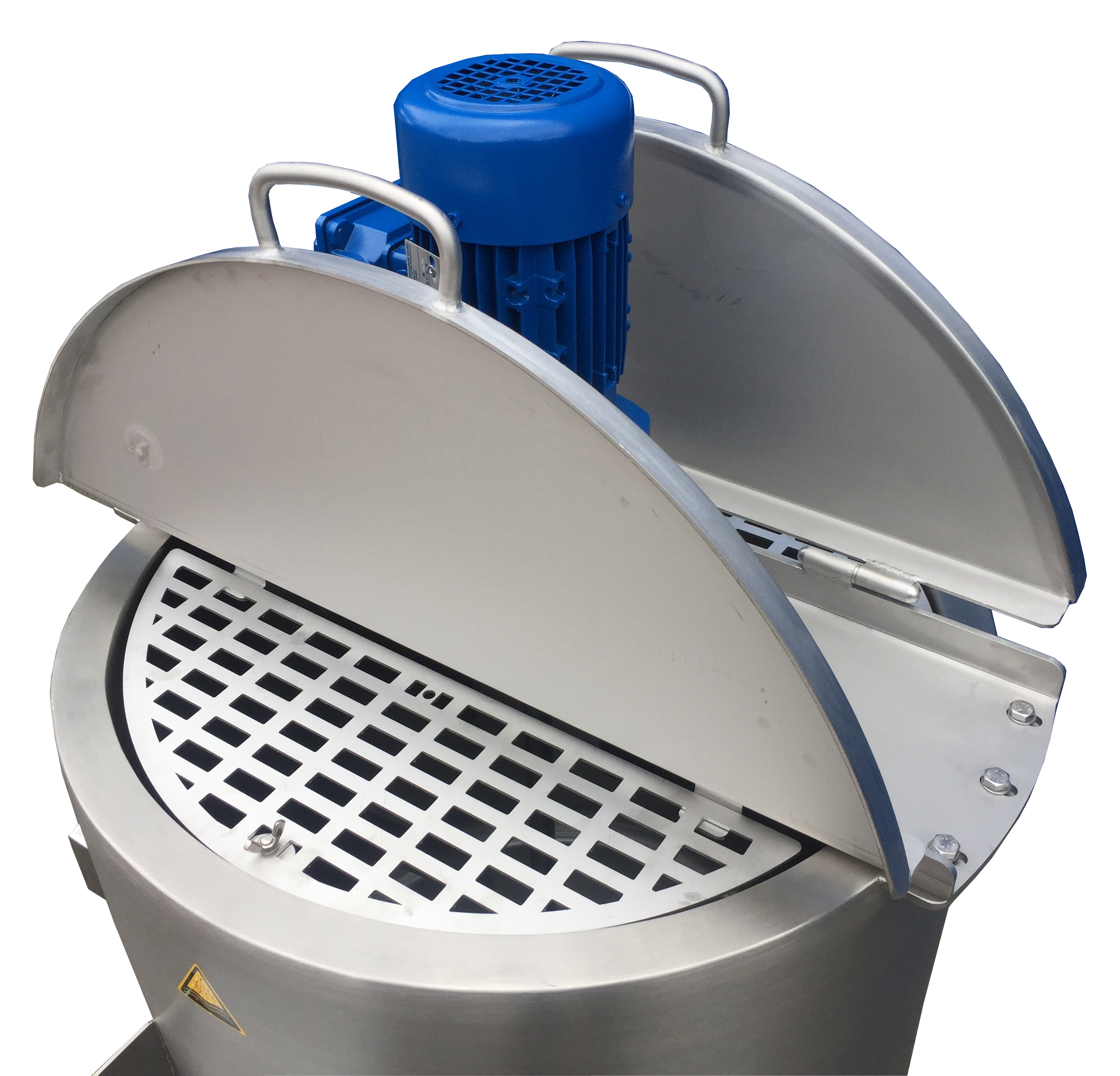

-Upper bottom: central cross beam for agitator with two hinged lid halves

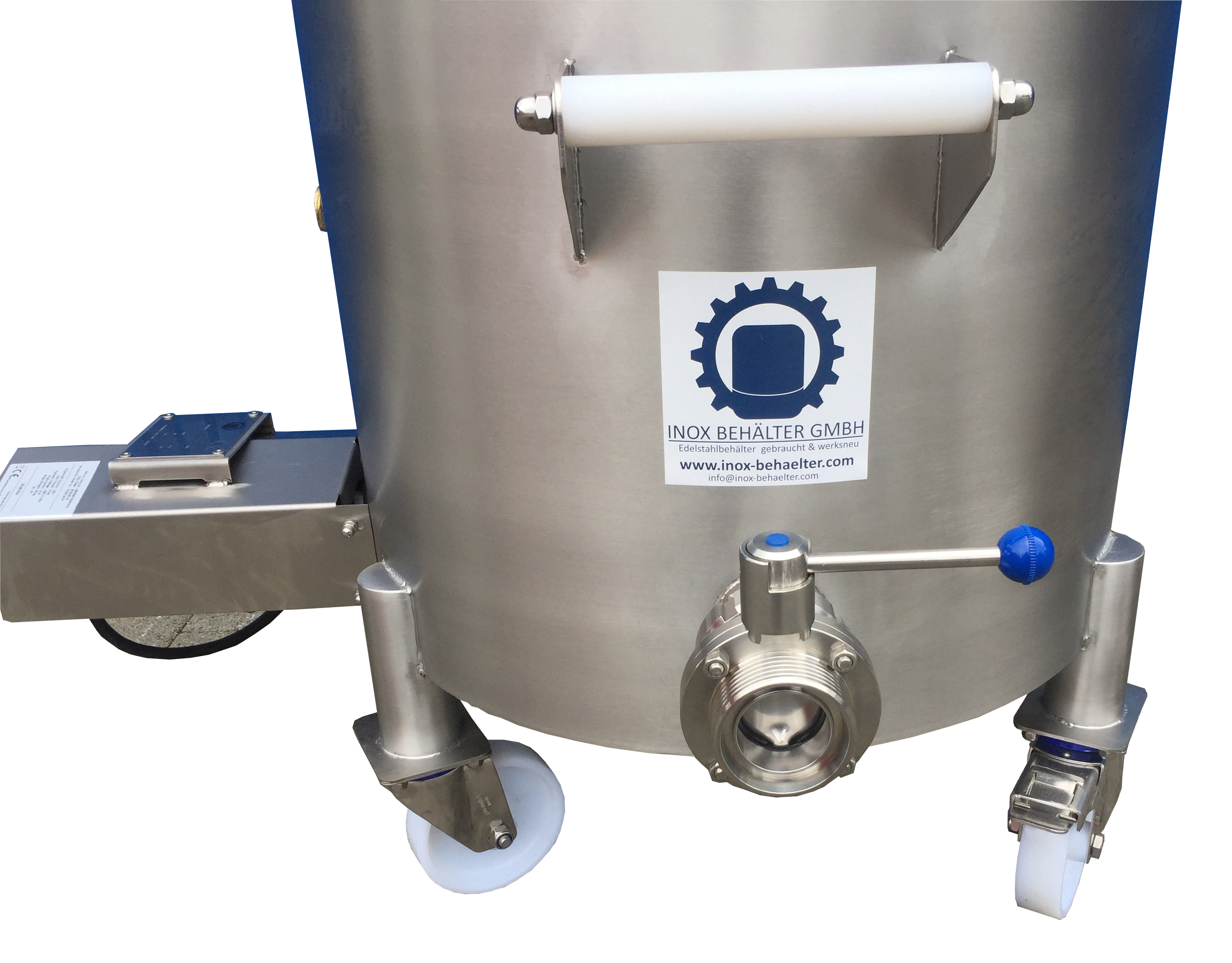

-Underground: Flat bottom with lateral outlet DN32 DIN11851
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate
Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug
Agitator: Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 kW
Speed: 21 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber"
-Massive agitator shaft fixed to the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range

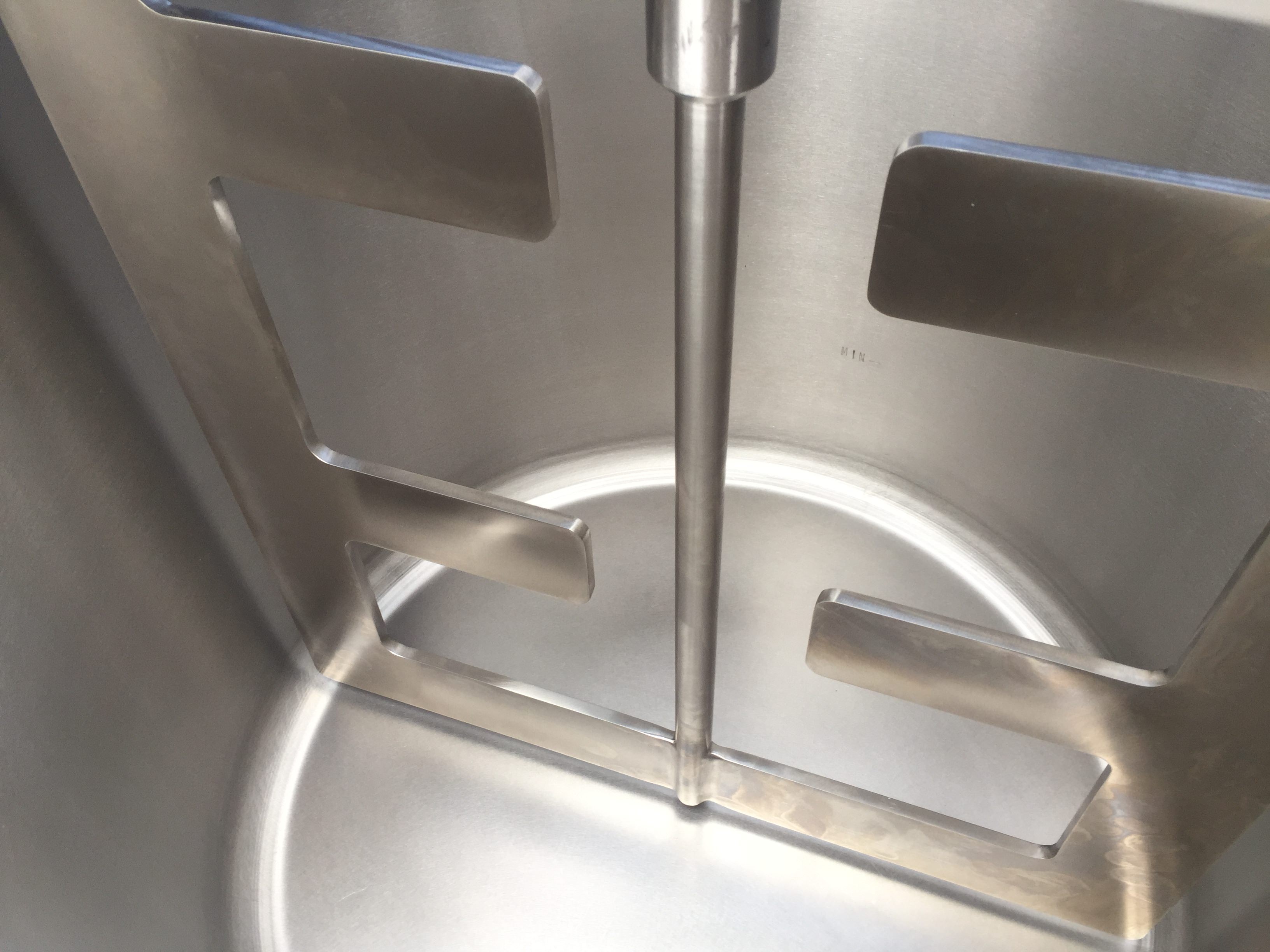

-1 piece space-filling anchor mixing element in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM
Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +475 EUR
