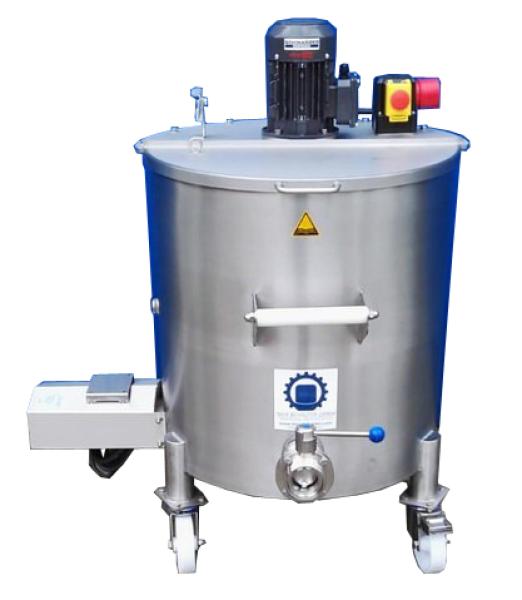

123L Electrically heated agitator vessel
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw
Technical description:
Factory new electrically heated stainless steel agitator vessel
EBB120RWP
Max. Viscosity: 500mPas
Volume: 123L
Dimensions approx.: Ø 600mm x cyl. height 625mm
Total height: 910mm (+ agitator motor)
Material: 1.4301 stainless steel V2A
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers

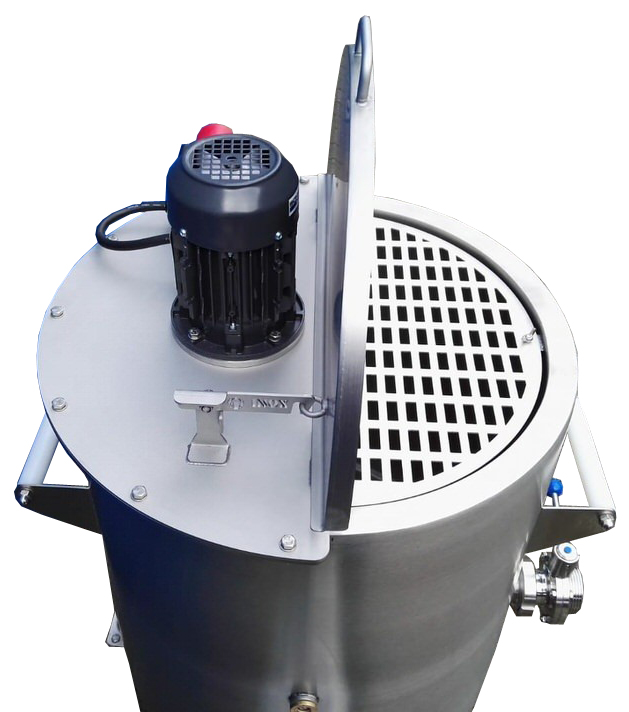

-Top shelf: hinged cover, 1/2 screwed, 1/2 hinged with stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate
Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.

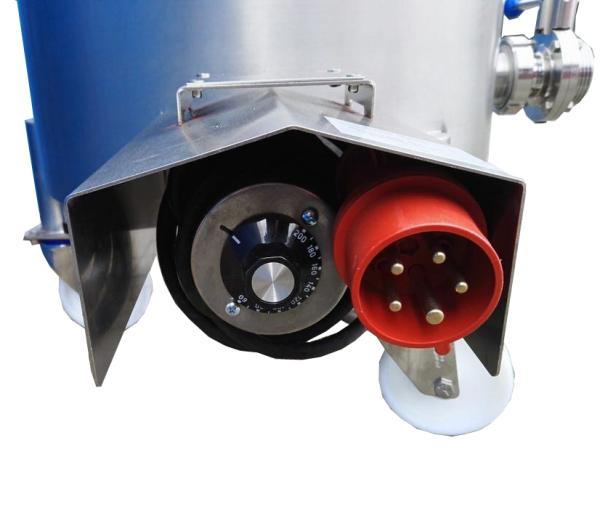

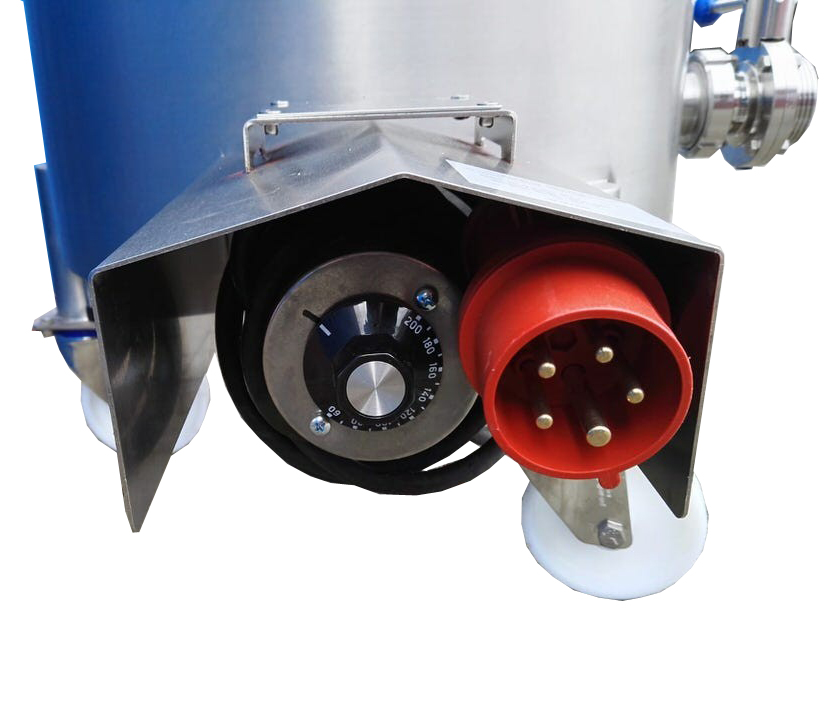

Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug
Agitator: Propeller agitator
Type: SRT4-1000
Make: Schwarzer Rührtechnik GmbH
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range

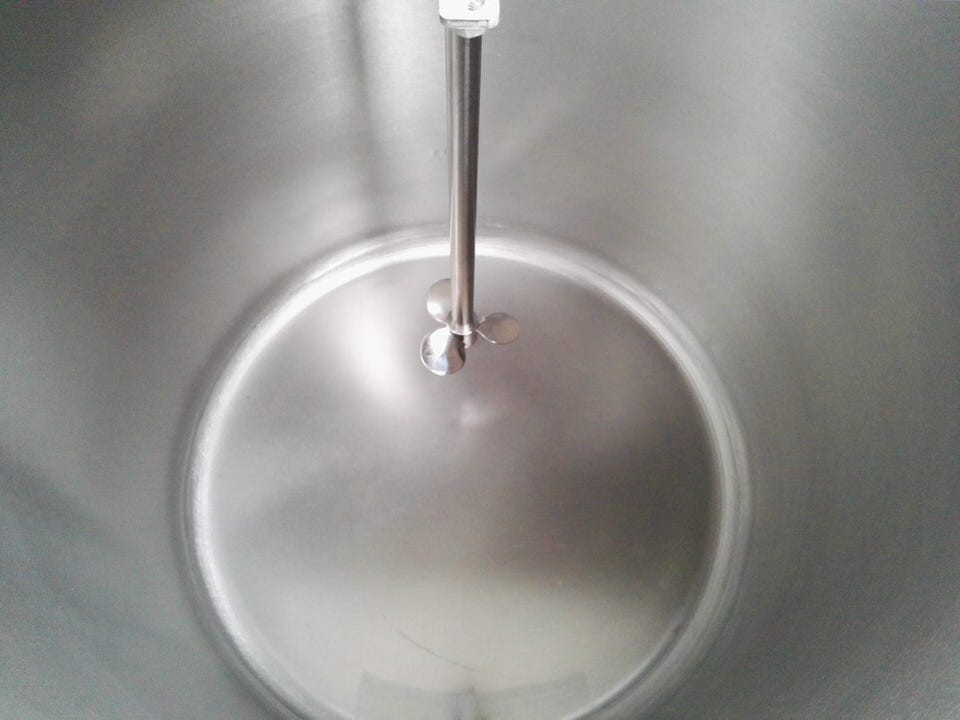

-1 piece 3-blade mixing propeller Ø 125mm screwed in at the end of the agitator shaft, mixing propeller made of cast stainless steel, surface mirror polished, seal shaft agitator EPDM
-Stainless steel flange with V-ring seal, EPDM
Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +475 EUR
