152L electrically heated agitator vessel with digital control
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw
Technical description:

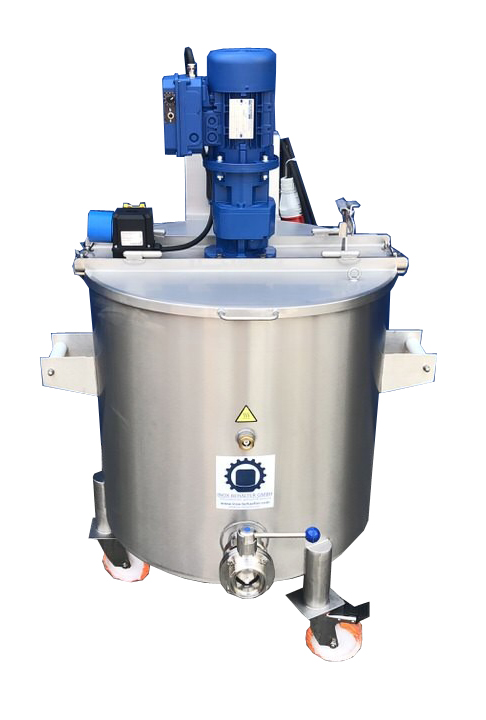

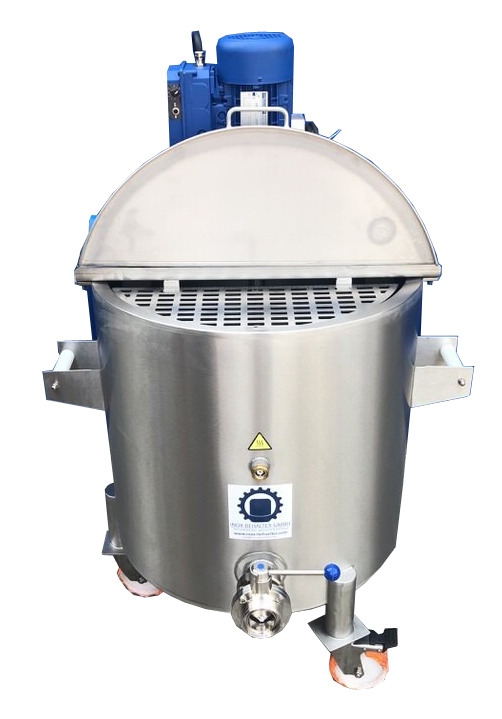

Electrically heated agitator vessel on rollers with digital control
EBB150RWA-M
Volume: 152L
Dimensions approx.: Ø 660mm x cyl. height 625mm
Total height: 910mm
Material: 1.4301 stainless steel V2A
Surface: IIIc / 2B, ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
Weld seams inside and outside ground flush with the sheet metal
-Upright design on three feet with castors
-Top shelf: Open, stainless steel dust cover with handle in the middle
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Double jacket with glycerine filling
Equipment:
2x handle to push
1x electric radiator 9KW

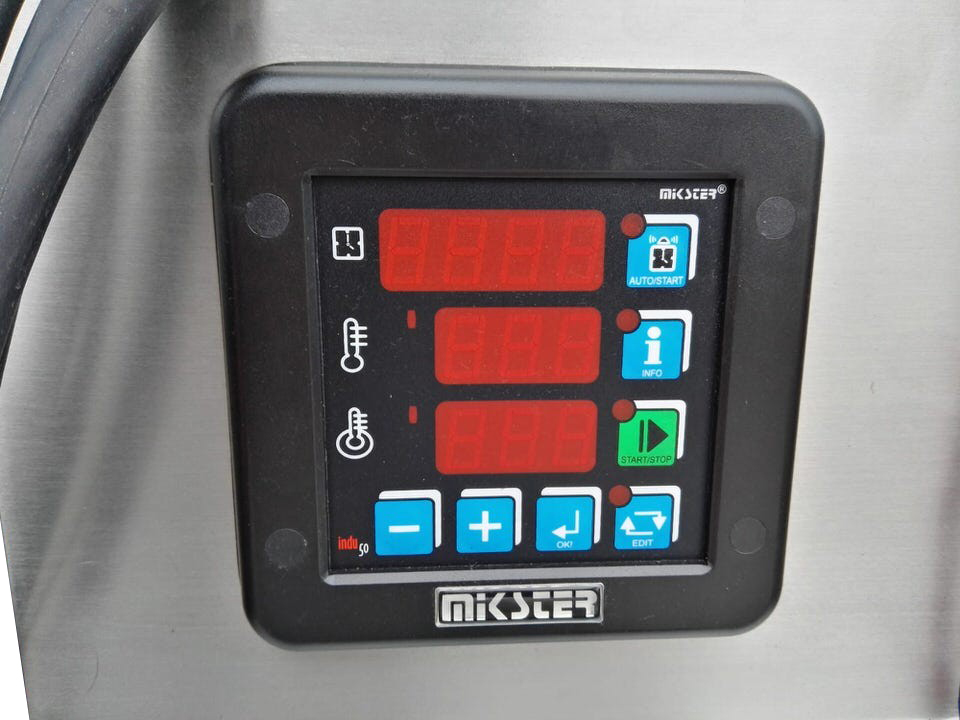

1x stainless steel control cabinet mounted on the side of the tank, digital control of the heating process "Mikster INDU
Preselection of heating temperature radiator, temperature sensor on inner wall of tank with digital display, timer
1x outlet fitting DN50 DIN11851 disc valve, seal EPDM
1x name plate
Agitator:
Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 kW
Speed: 21 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)
-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber
-Solid agitator shaft mounted on the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range

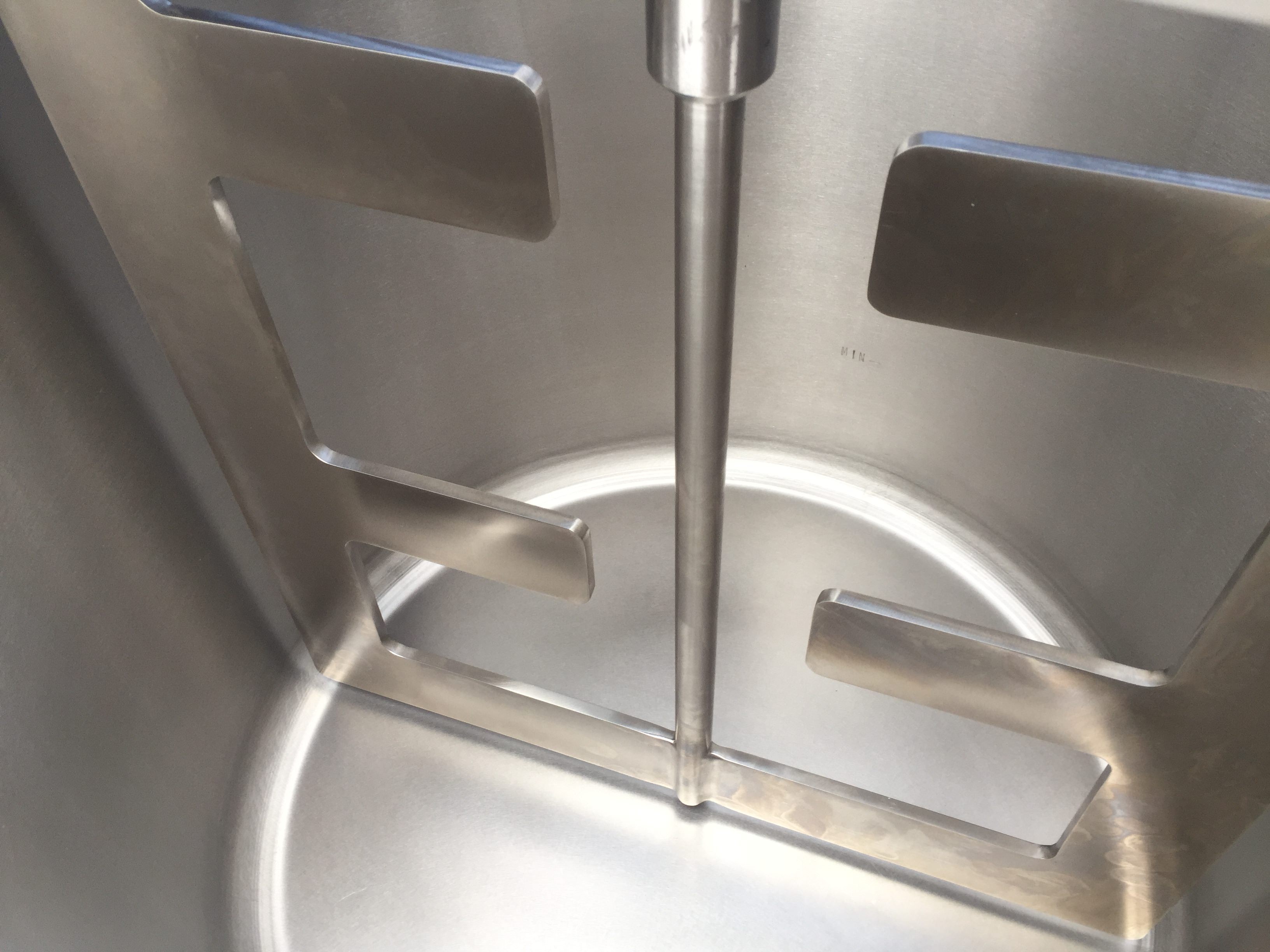

-1 piece space-filling anchor stirrer in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM
Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR
