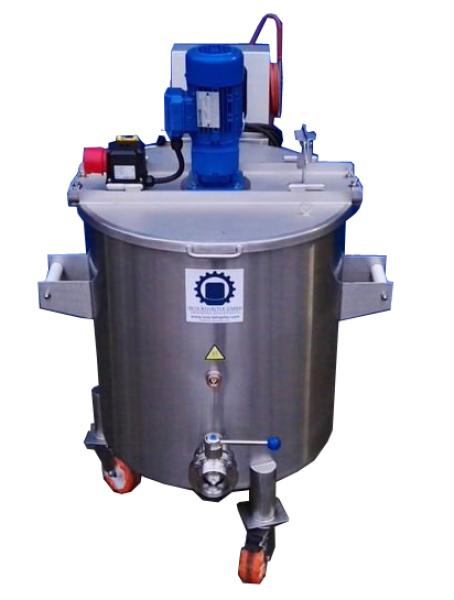

97L Electrically heated agitator vessel with digital control
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw
Technical description:
Electrically heated stainless steel agitator vessel on wheels with digital control
EBB90RWA-M
Volume: 97L
Dimensions approx.: Ø 480mm x cyl. height 540mm
Total height: 910mm plus switch cabinet/agitator motor
Material: 1.4301 stainless steel V2A
Surface: IIIc / 2B, ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
Weld seams inside and outside ground flush with the sheet metal
-Upright design on three feet with castors

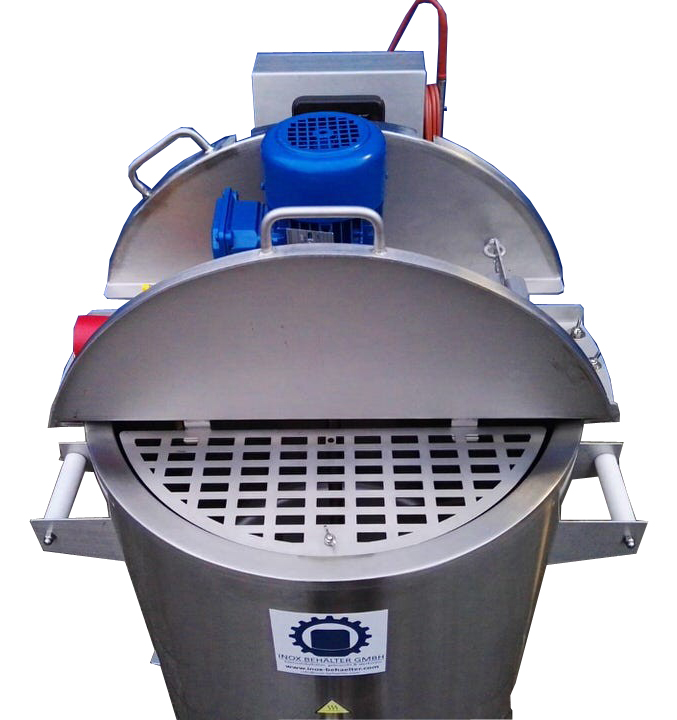

-Top shelf: Central cross member with two halves of hinged lid, stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Double jacket with glycerine filling
Equipment:
1x type plate
2x handle for pushing
1x electric radiator 8KW

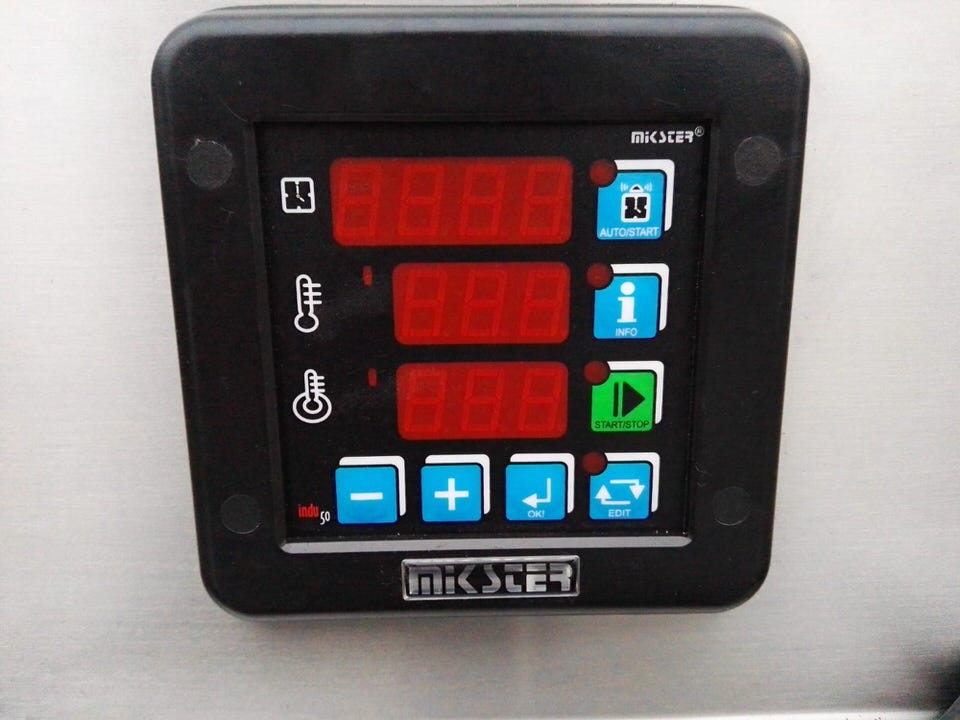

1x stainless steel control cabinet mounted on the side of the tank, digital control of the heating process "Mikster INDU
Preselection of heating temperature radiator, temperature sensor on inner wall of tank with digital display, timer, manual temperature sensor
1x outlet fitting DN50 DIN11851 disc valve, seal EPDM
Agitator:
Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 KW
Speed: 21 RPM
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel
-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber
-Massive agitator shaft fixed to the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece space-filling anchor mixing element in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM
Control:

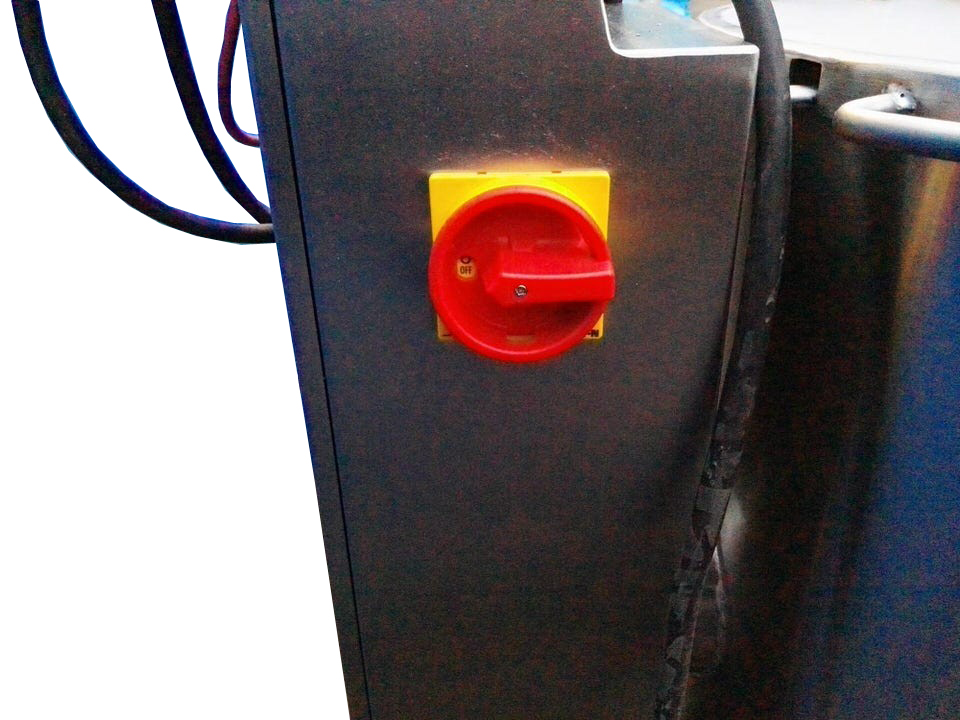

CEE plug switch on the container with zero voltage release and phase inverter, emergency stop
Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +450 EUR
