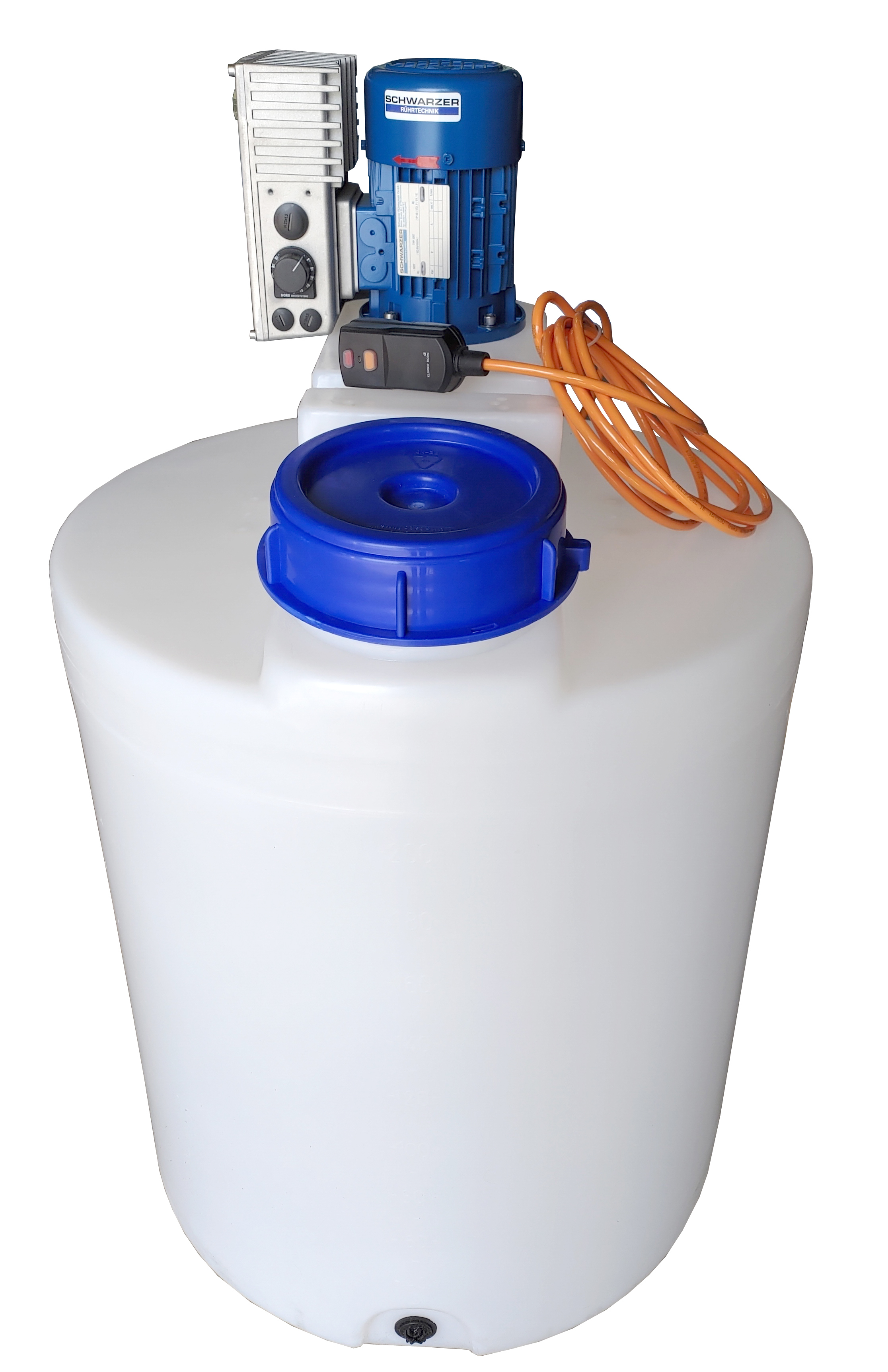

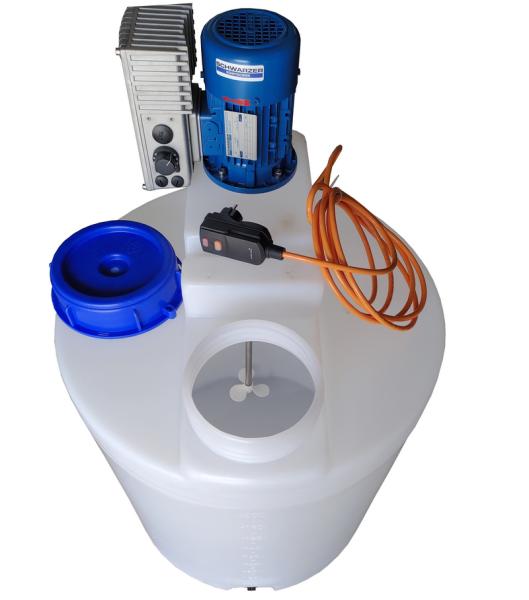

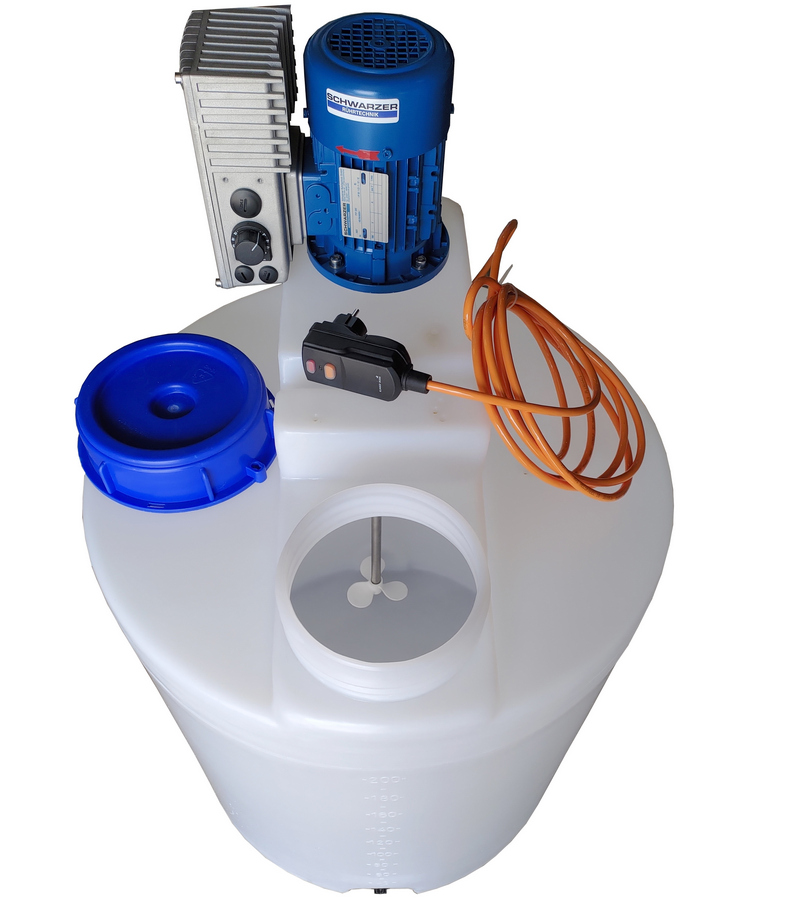

500 liter PE dosing tank with speed adjustable propeller agitator
For water-like liquids with a viscosity up to 600 m/Pas and a density up to 1.2 kg/cm³.
Outer-Ø 790mm x 1170mm high (dimensions without agitator)
Cylindrical container with screw cap, UV-stabilised polyethylene
Seamlessly manufactured using the rotary melting process.
Sintered-in liter scale
Resistant to maximum 60°C temperature.
Drainage: moulded threaded socket 3/4" with plug.
Colour natural-transparent.
High-speed mixer / Propeller agitator for liquids similar to water.
Power: 0,75 kW
Speed: 0-1410 rpm
Voltage: 1 PH 230V 50 Hz
Built-on frequency converter IP 55 with rotary control (potentiometer)
Material in contact with product: 1.4404 stainless steel (AISI316L)
Propeller PP Ø 150mm
5m supply cable with FI plug switch, with zero voltage release
High-speed mixer with solid, non-removable agitator shaft
Agitator shaft balanced for concentricity in the speed range
Total weight approx.: 48 Kg
Image representation may differ from original.
