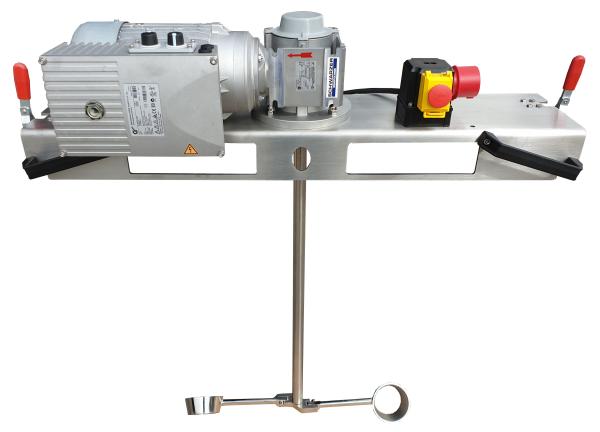

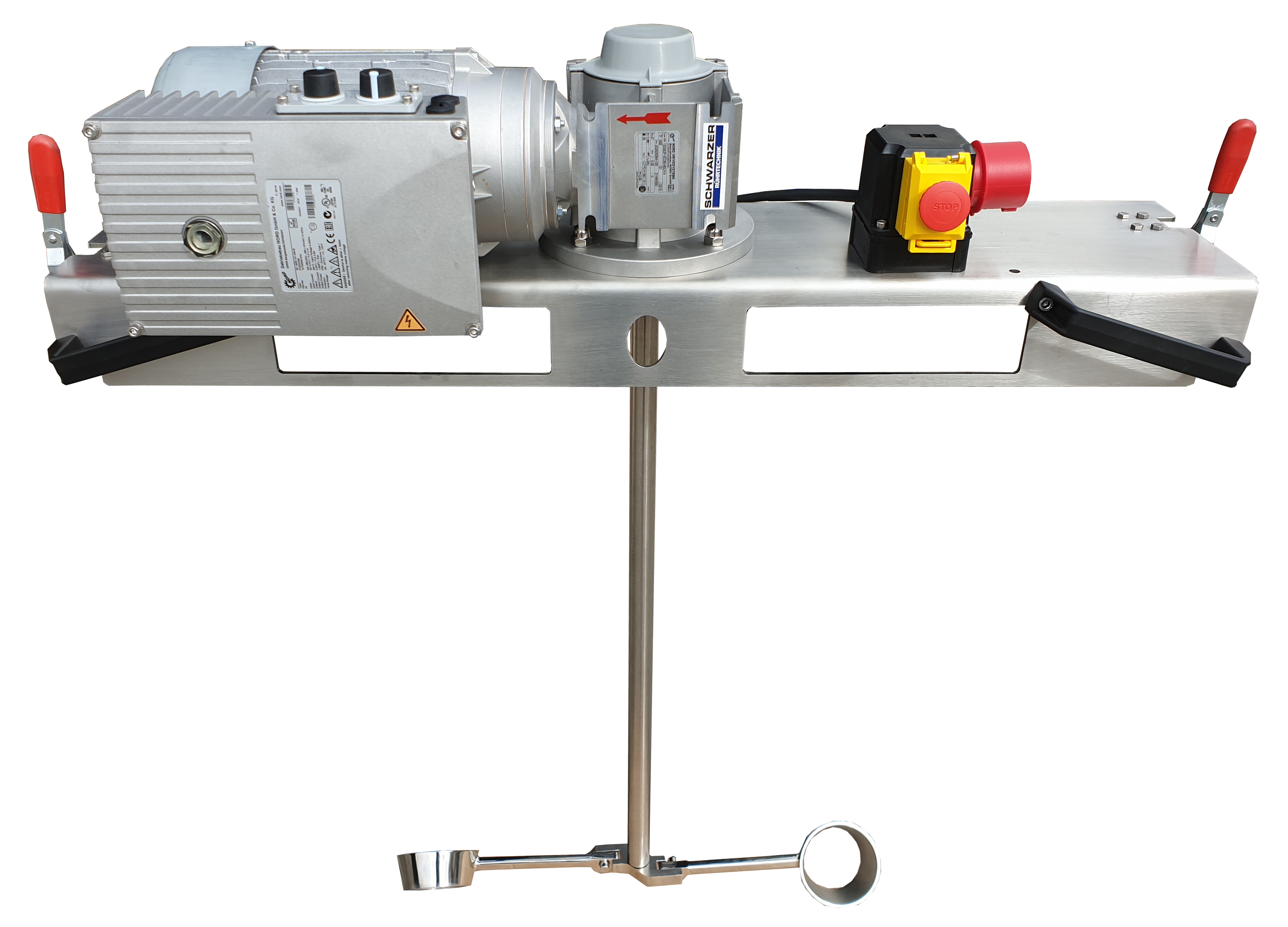

Worm gear container agitator for 1000L IBC.
Item number: IBC-0250
For liquids up to 10000 mPas in 1000L IBC. Density max. 1,2 KG / Liter
Power: 1,5 kW
Speed: 0-290 rpm
Voltage: 3PH 400V 50Hz.
Material in contact with product: 1.4404 stainless steel (AISI316L)
Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD.
Solid plug-in agitator shaft mounted in the hollow shaft gear unit.
Agitator shaft balanced for concentricity in the speed range.
1 piece cup stirrer IBC-BEC-600 Ø 600mm screwed in at the end of the agitator shaft.
Stirring arms can be dismantled without tools for easy cleaning. No screws in the product space.
Fits through Ø=140mm container openings.
Compact frequency inverter IP 55 NORD
Input 3 PH 400 V 50 Hz. Potentiometer for variable speed control.
1,5 KW 0-290 (0-50 Hz) rpm.
Preprogrammed for agitator operation.
Forklift traverse stainless steel 1.4301 (AISI304) 4mm thickness
with 2 openings for forklift forks, 2 tension hooks and 4 side handles.
CEE plug switch
on the traverse with zero voltage release and phase inverter.
