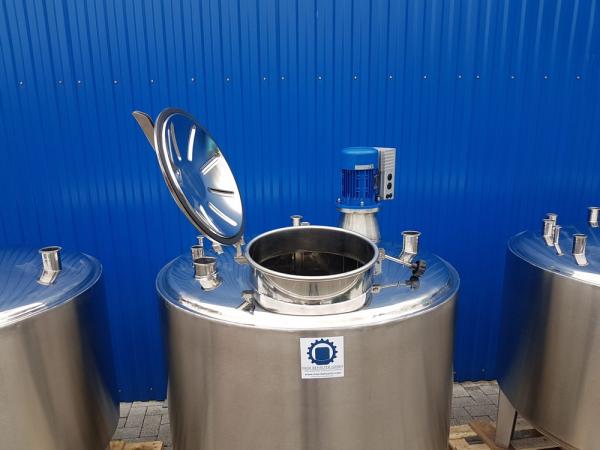

699L stainless steel agitator vessel with thermoplate and insulation
Overall description
| Item number | MTH750RWPTPISO |
|---|---|
| Condition | Factory new |
| Capacity | 699 l |
| Delivery time | Ex stock |
Technical data an dimensions
| Max. Operating pressure according to type plate | Atmospheric |
|---|---|
| Maximum operating temperature | 95°C |
| Inner diamater | 1080mm |
| Outer diameter | 1150mm |
| Cylindrical height | 625mm |
| Height outlet to ground | 240mm |
| Total height | 1280mm (plus agitator motor) |
| Total width | 1150mm |
| Stand feet height | 430mm |
Description
| Item number | MTH750RWPTPISO |
|---|---|
| Item type | Factory new stainless steel agitator vessel with propeller agitator, double jacket and insulation |
Material
| In contact with product | Stainless steel AISI316 |
|---|---|
| Other parts | Stainless steel AISI304 |
Construction type
| Construction type | Standing on feet |
|---|---|
| Number of fixations | 4 feet |
| Material feet/castors | Stainless steel AISI304 |

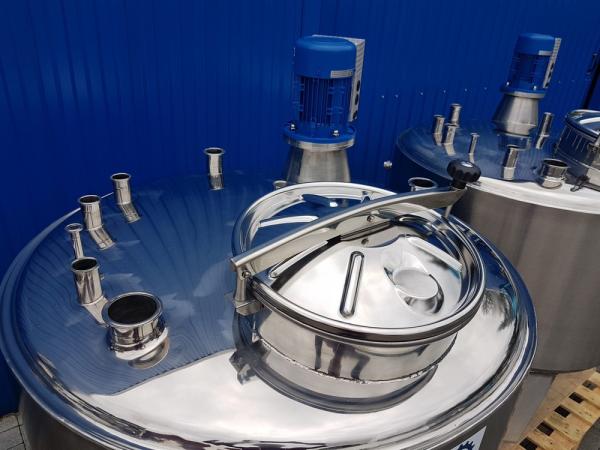

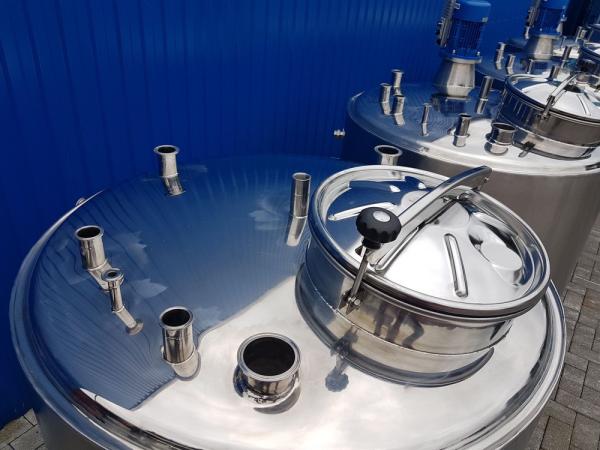

| Extras | Various nozzles, thermoplate / double jacket around cylinder and underbody, insulation, dome cover Ø 400mm |
Features
| Design | Double-jacket |
|---|---|
| Insulated | Yes |
| Pressure vessel | No |
| Spray head (CIP) | No |
| Technical drawing / documents | Yes |
| Type plate | Yes |
| Outlet | Flange DN65 |

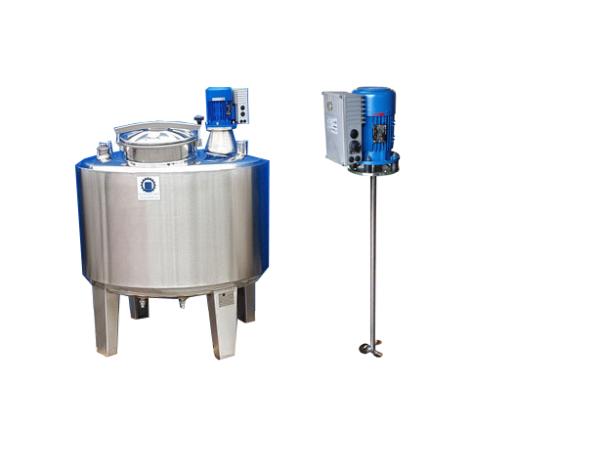

Agitator
| Agitator | Yes |
|---|---|
| Number of agitators | 1 |
| Position | On top of vessel |
| Power | 0.75 kW |
| RPM | 0-1690 rpm infinitely variable |
| Mixing element | Propeller |
| Miscellaneous | Operating voltage 3PH 400V |
