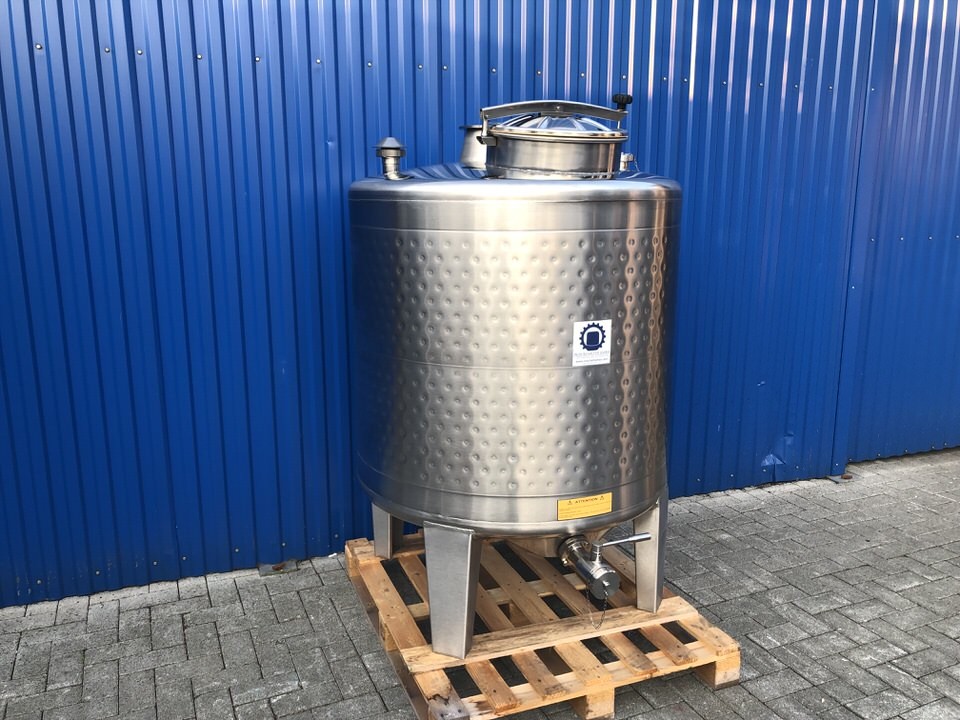

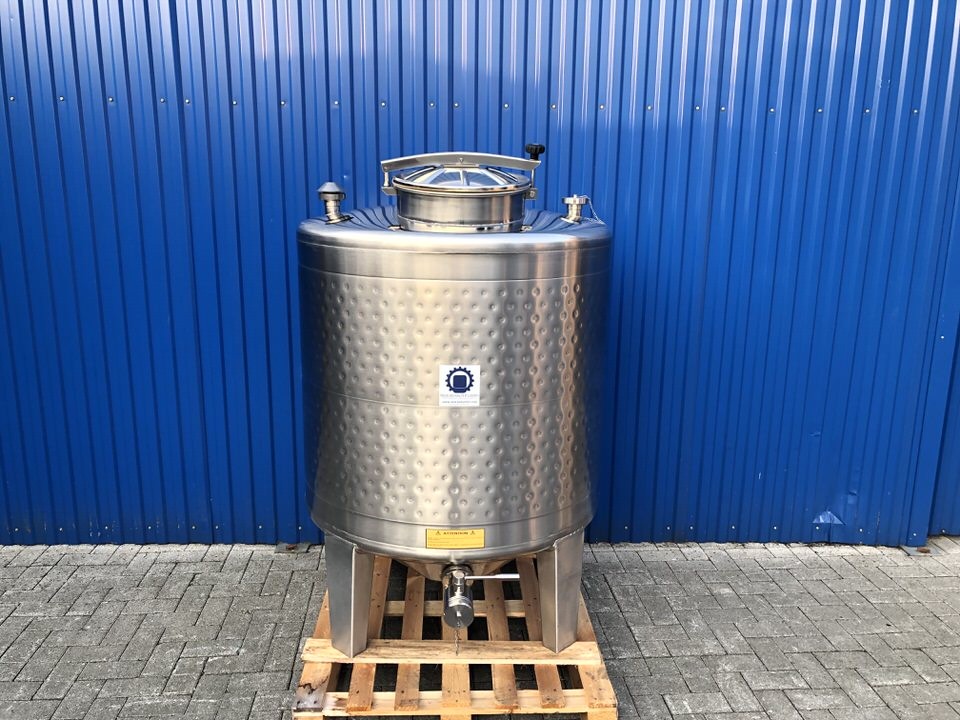

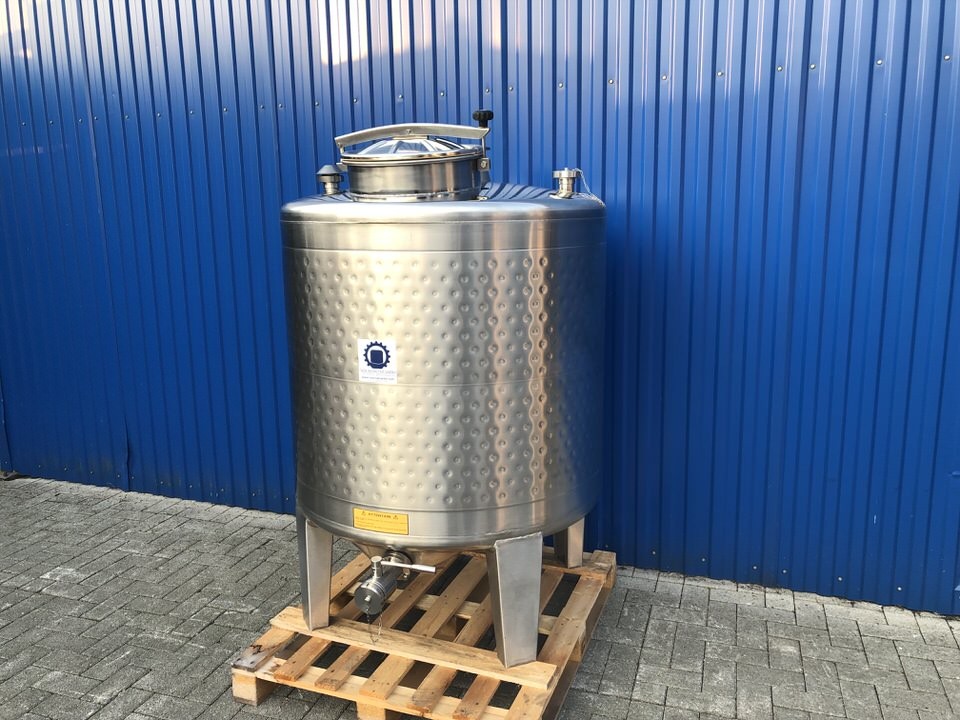

1000L stainless steel vessel with thermoplate

Item number	MTL1000TPRW
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Item number	MTL1000TPRW
Type of item	Factory new stainless steel vessel with thermoplate and agitator mounting

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304 V2A

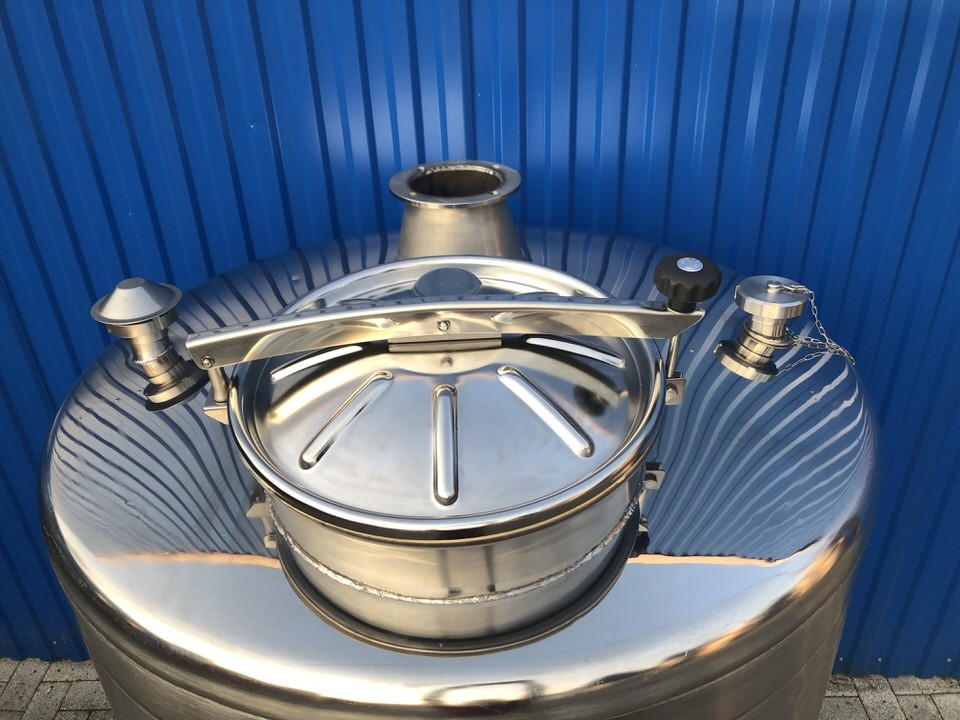

Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and deaeration valve

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator
