Name: 1000L stainless steel vessel with thermoplate and cone stirrer agitator
SKU: MTL1000TPRWB
Price: 7174.32 GBP
Availability: InStock

Main page » AISI tanks 500-1500L » 1000L stainless steel vessel with thermoplate and cone stirrer agitator

Preview: 1000L stainless steel vessel with thermoplate and cone stirrer agitator

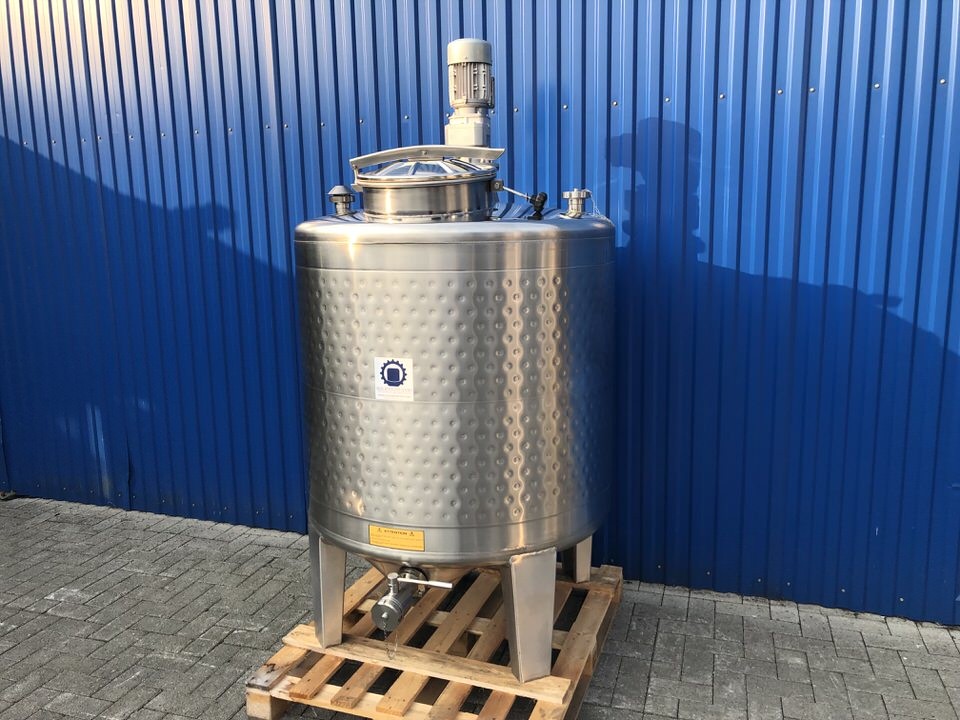

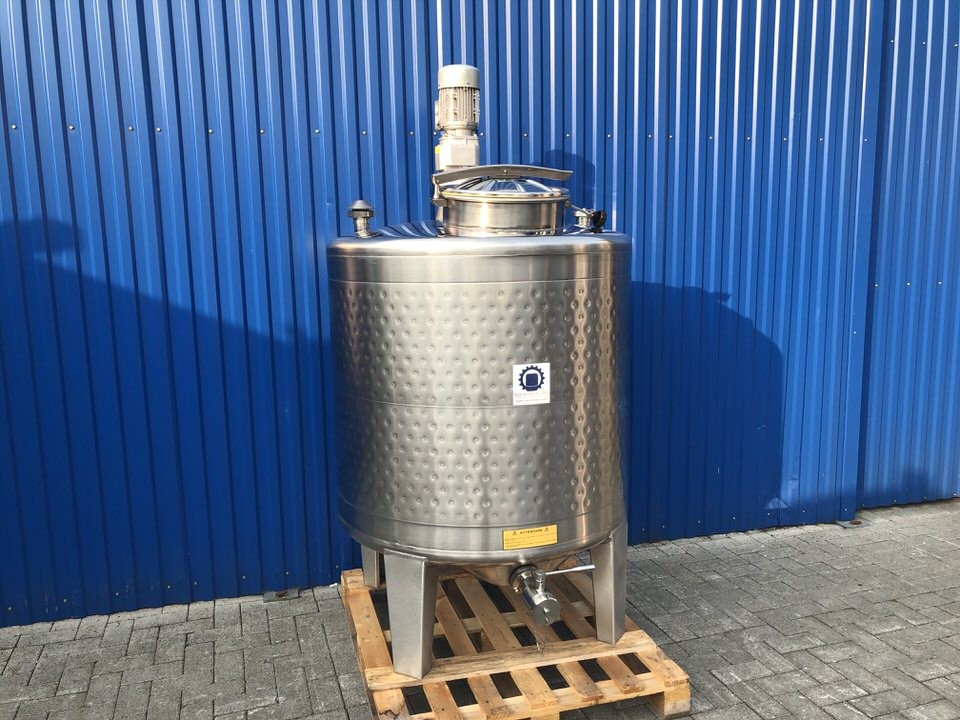

1000L stainless steel vessel with thermoplate and cone stirrer agitator

Mobile Preview: 1000L stainless steel vessel with thermoplate and cone stirrer agitator

Description

Description

General

Item number	MTL1000TPRWB
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRWB
Type of item	Factory new stainless steel agitator vessel with double-jacket

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304

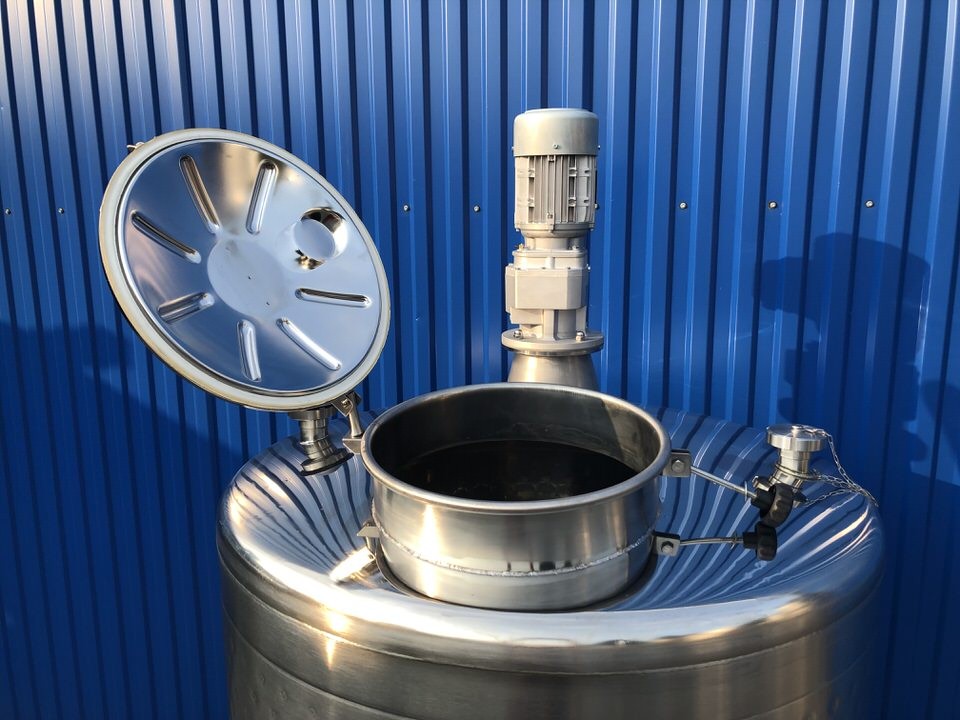

Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and venting valve, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

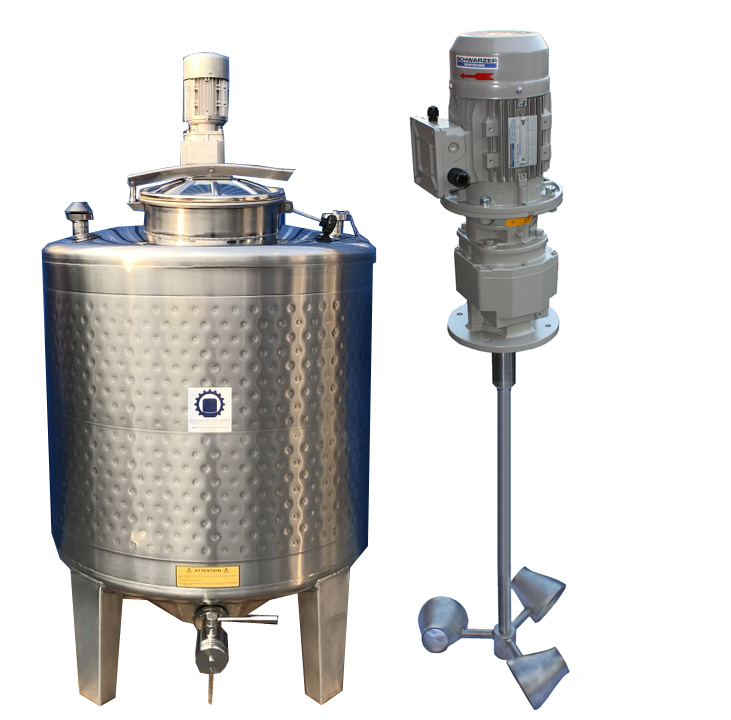

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	Cone stirrer
Miscellaneous	Voltage 3ph 400V
