Name: 1305L Stainless steel vessel with thermoplate
SKU: MTL1250TPRW
Price: 4349.94 GBP
Availability: InStock

Main page » AISI tanks 500-1500L » 1305L Stainless steel vessel with thermoplate

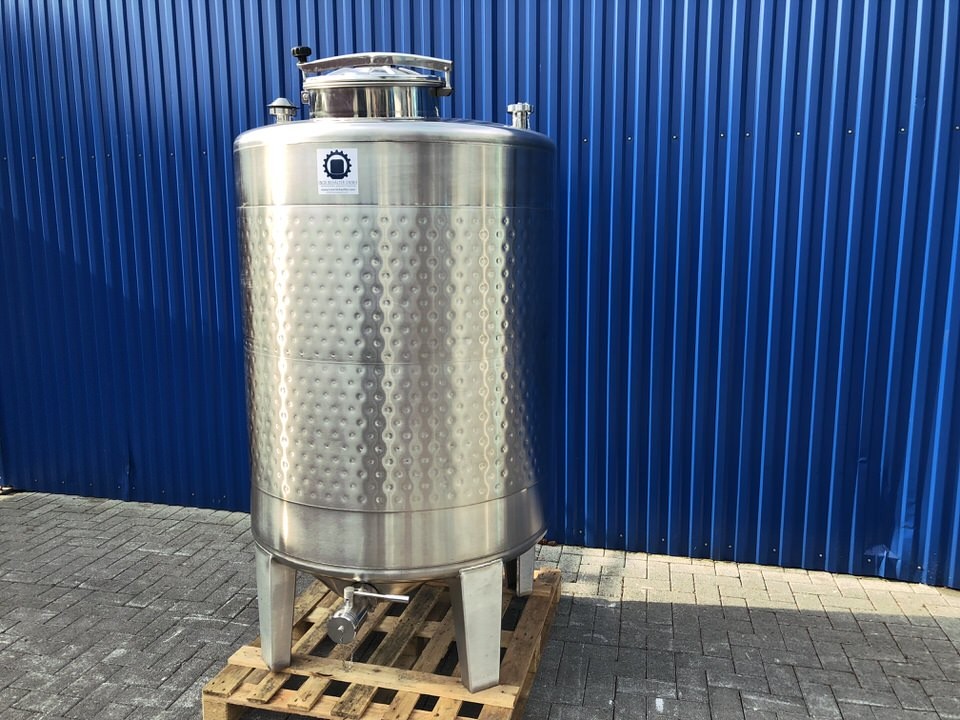

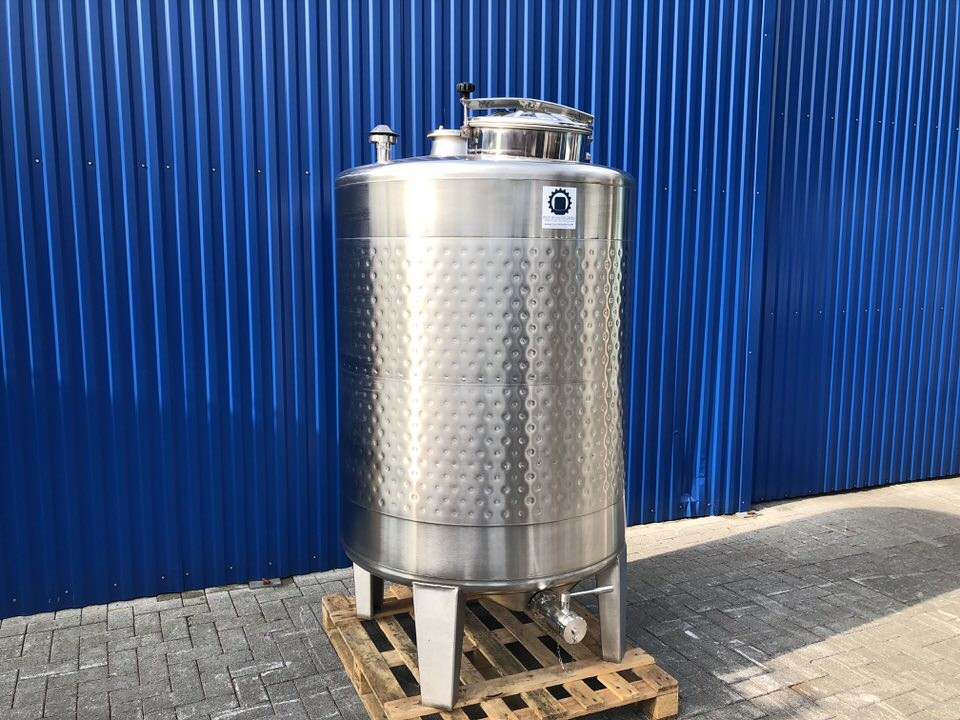

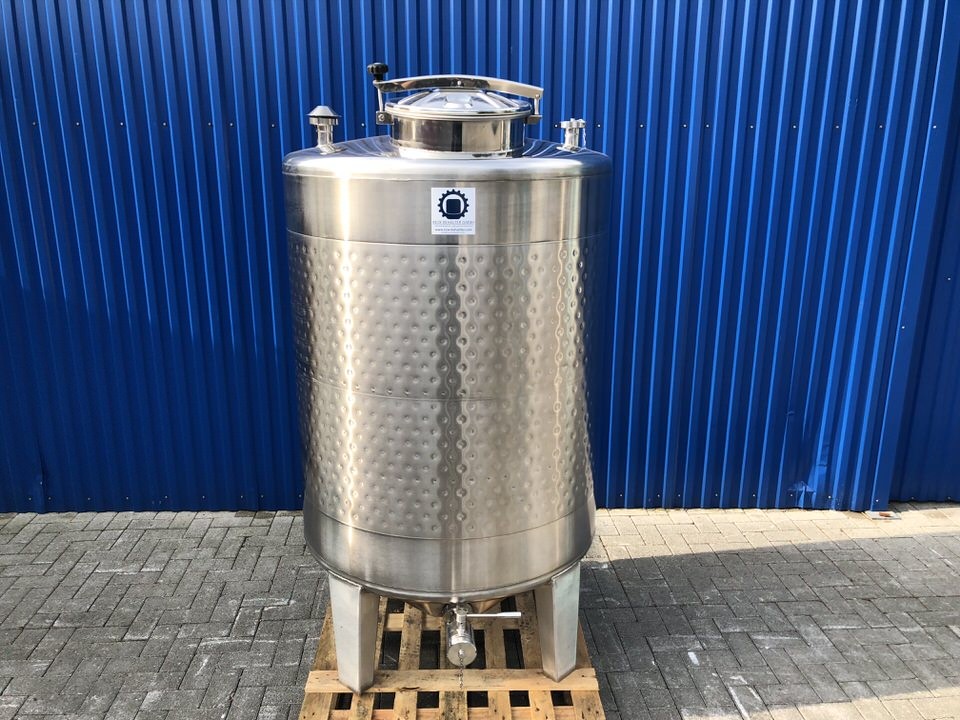

1305L Stainless steel vessel with thermoplate

Item number	MTL1250TPRW
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Item number	MTL1250TPRW
Type of item	Factory-new stainless steel vessel with thermoplate and agitator mounting

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304

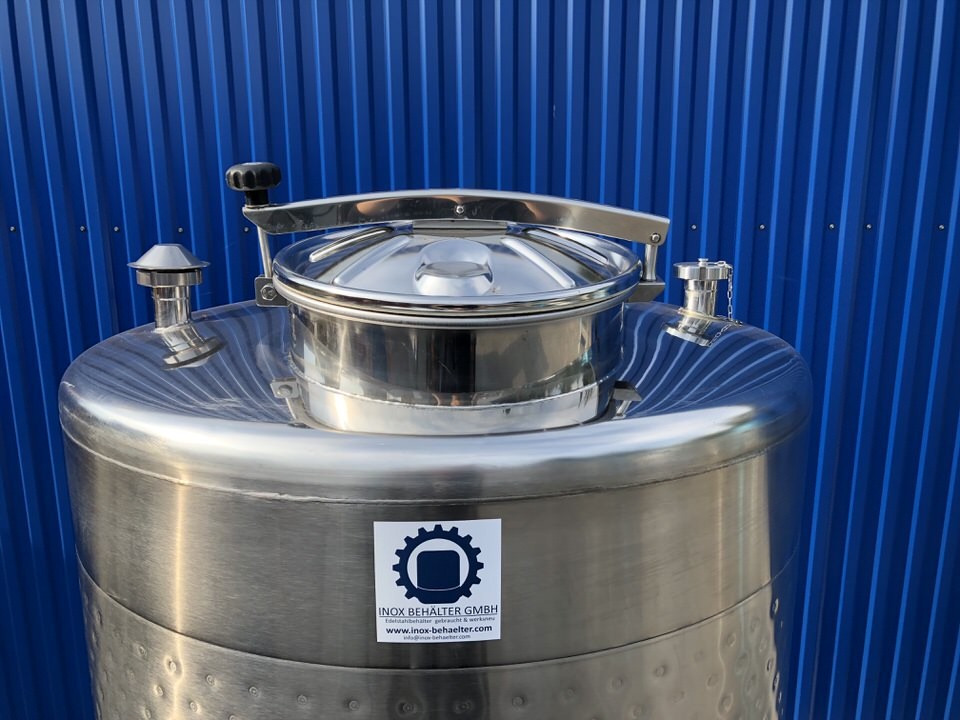

Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

For more information, please visit the home page for this product.
