Name: 1305L Stainless steel vessel with thermoplate and beam stirrer agitator
SKU: MTL1250TPRWS
Price: 7219.08 GBP
Availability: InStock

Main page » AISI tanks 500-1500L » 1305L Stainless steel vessel with thermoplate and beam stirrer agitator

Preview: 1305L Stainless steel vessel with thermoplate and beam stirrer agitator

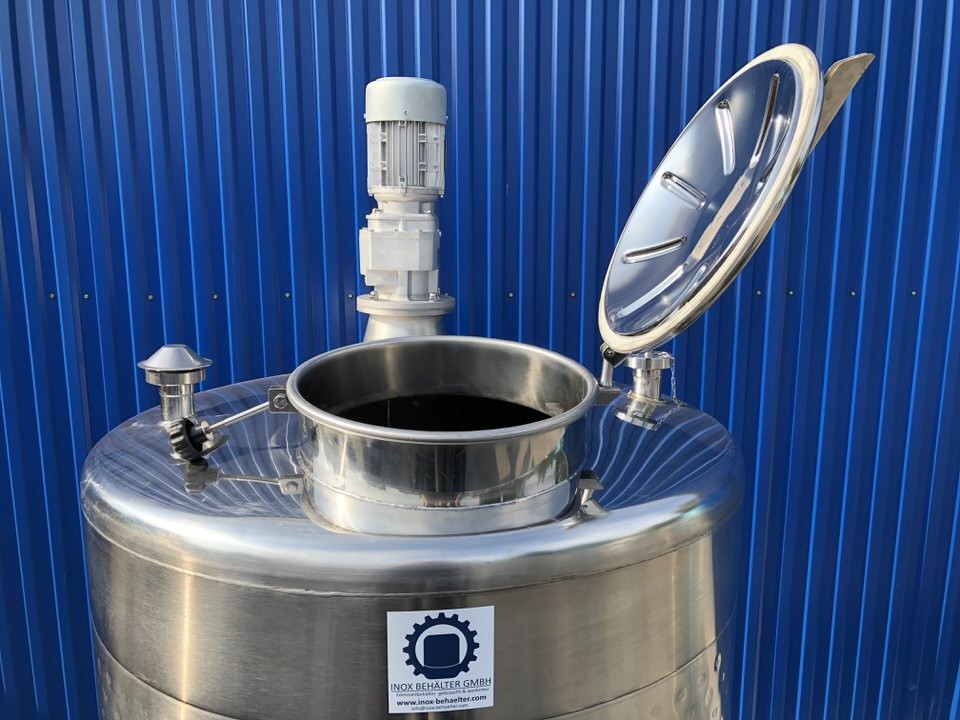

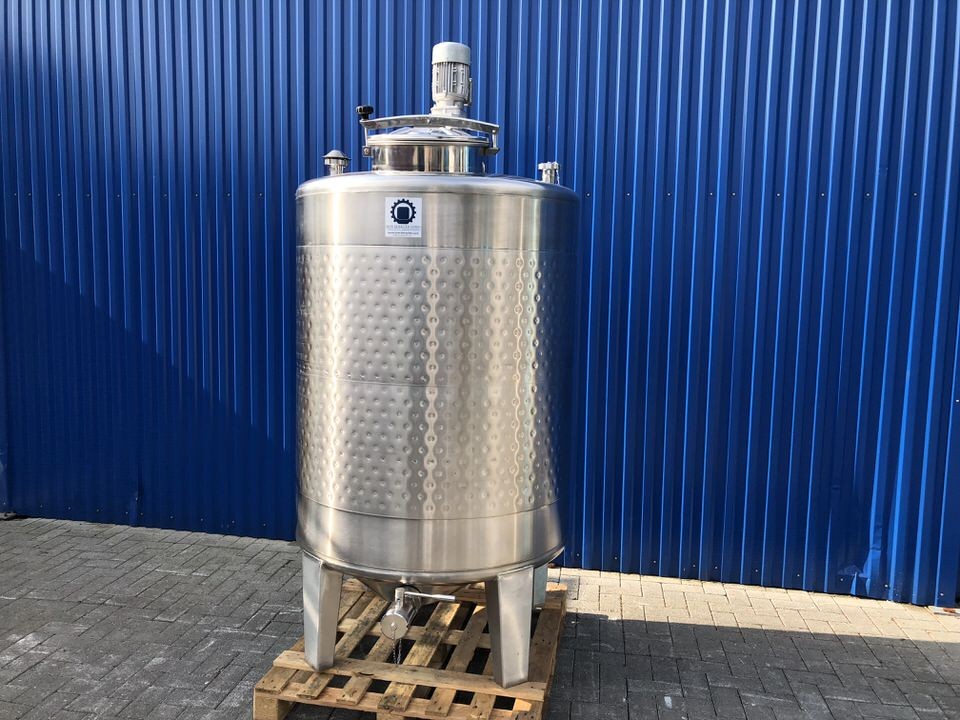

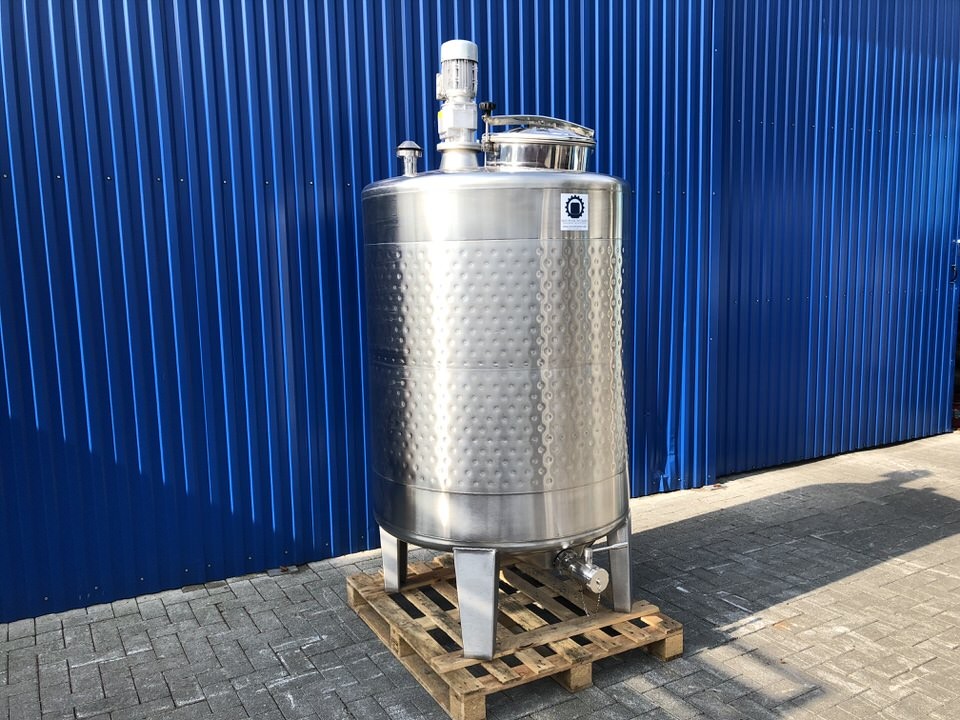

1305L Stainless steel vessel with thermoplate and beam stirrer agitator

Mobile Preview: 1305L Stainless steel vessel with thermoplate and beam stirrer agitator

Description

Description

General

Item number	MTL1250TPRWS
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to ground	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRWS
Type of item	Factory new stainless steel agitator vessel with beam stirrer agitator and thermoplate

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

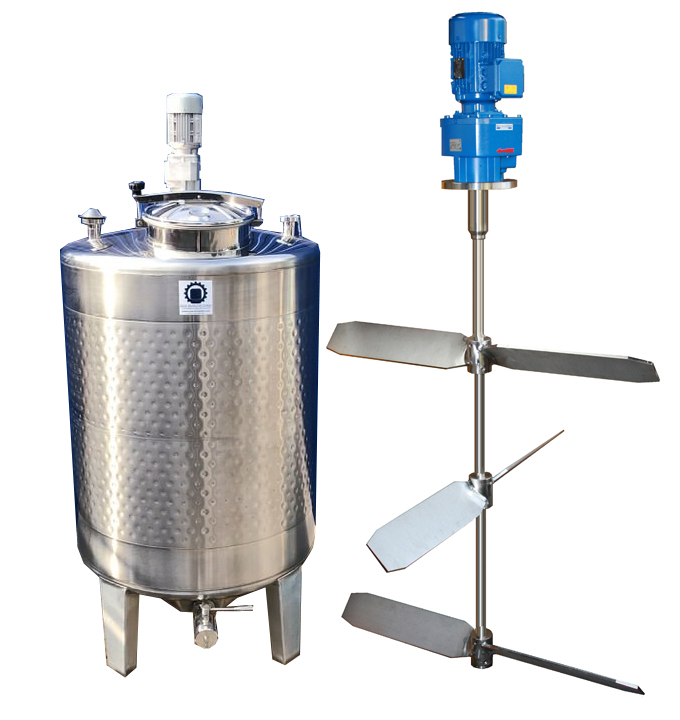

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	2x beam stirrer
Miscellaneous	Voltage 3ph 400V

For more information, please visit the home page for this product.
