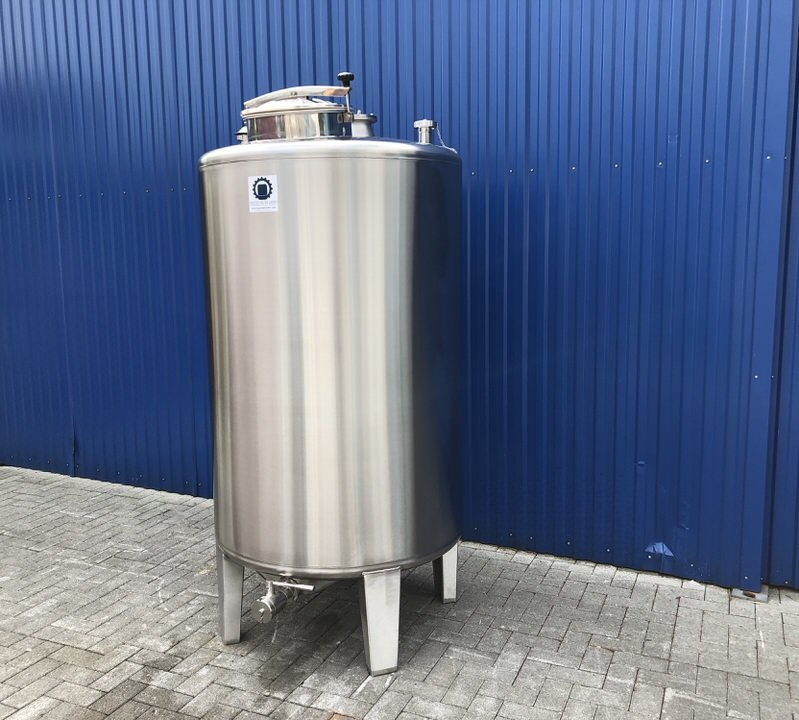

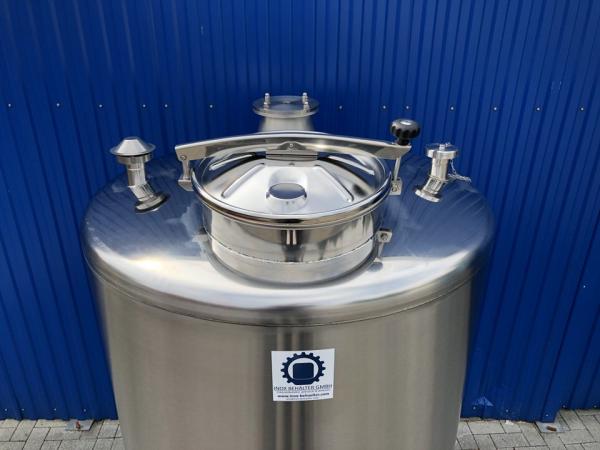

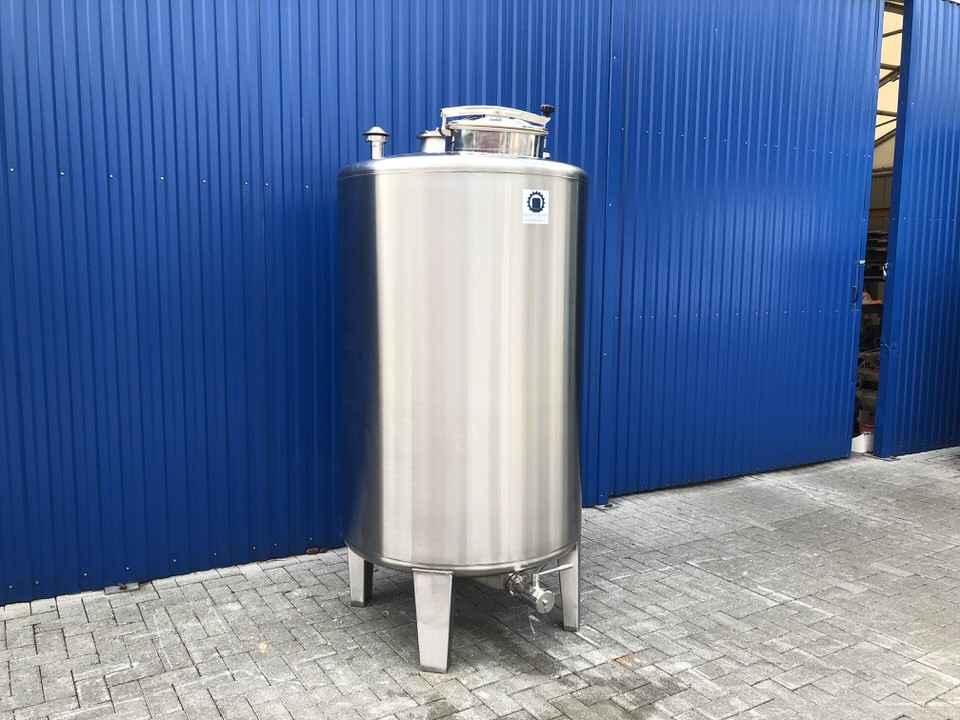

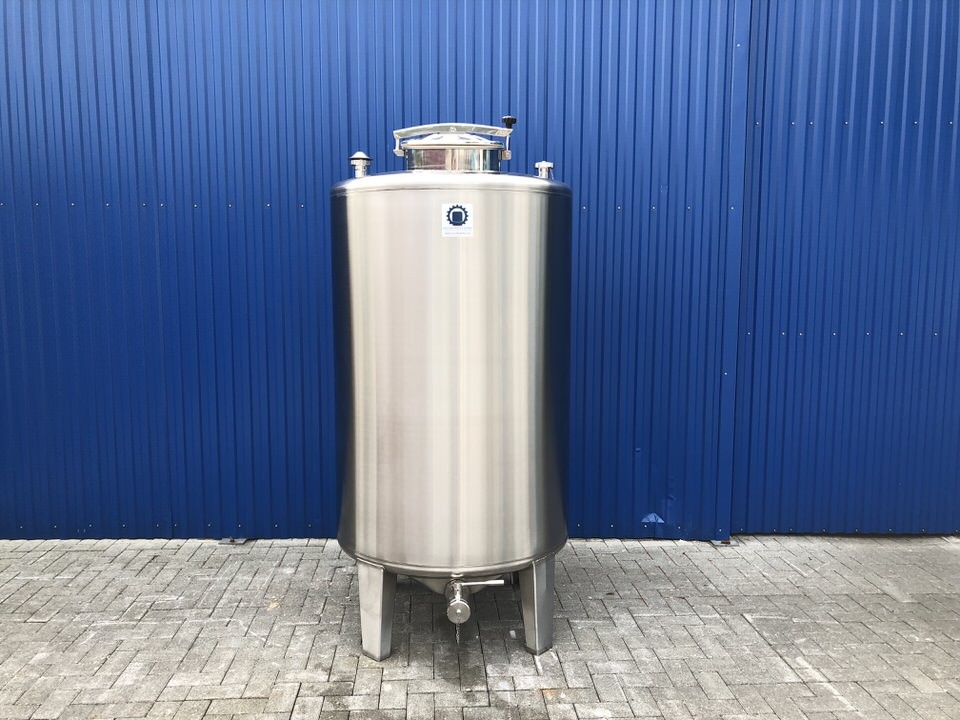

Name: 1533L stainless steel vessel with agitator mounting
SKU: MTL1500RW
Price: 3737.33 GBP
Availability: InStock

Main page » AISI tanks 500-1500L » 1533L stainless steel vessel with agitator mounting

1533L stainless steel vessel with agitator mounting

Item number	MTL1500RW
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Total height	2255mm (plus agitator motor)
Total width	1084mm

Item number	MTL1500RW
Type of item	Factory new stainless steel agitator vessel with agitator mounting

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator
