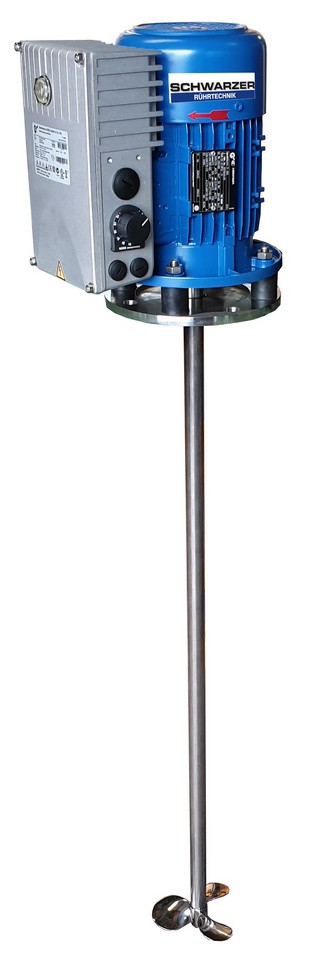

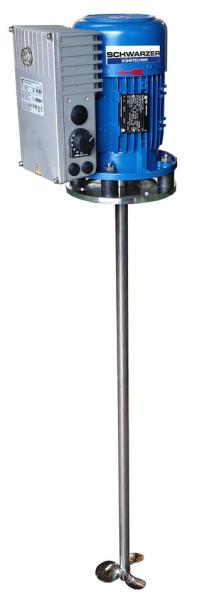

0,37 KW Agitator with frequency converter IP55 | High-speed mixer
High speed mixer / Propeller agitator for liquids similar to water.
Suitable for up to 300 liter tank volume for turbulent mixing.**
With mounted frequency converter IP55
With stainless steel protection flange
Suitable for up to 300 liter tank volume for turbulent mixing.**
With mounted frequency converter IP55
With stainless steel protection flange
- Power: 0,37 kW
- Speed: 0-1410 rpm infinitely variable
- Voltage input frequency inverter: 1 phase 230 V 50/60 Hz
- Rotary control: 0-100%
- Motor with 3 thermistors (PTC)
- Material in contact with product: 1.4404 stainless steel (AISI316)
- High-speed mixer with solid, non-removable agitator shaft
- Maximum shaft length: 950mm
- Agitator shaft balanced for concentricity in the speed range
- 1 piece 3-blade mixing propeller Ø=125mm screwed in at the end of the agitator shaft
- Mixing propeller made of cast stainless steel, mirror finish polished
- Flange dimensions: AØ=160mm/LKØ=130mm(4xØ=9,5mm)/ZØ=plain
