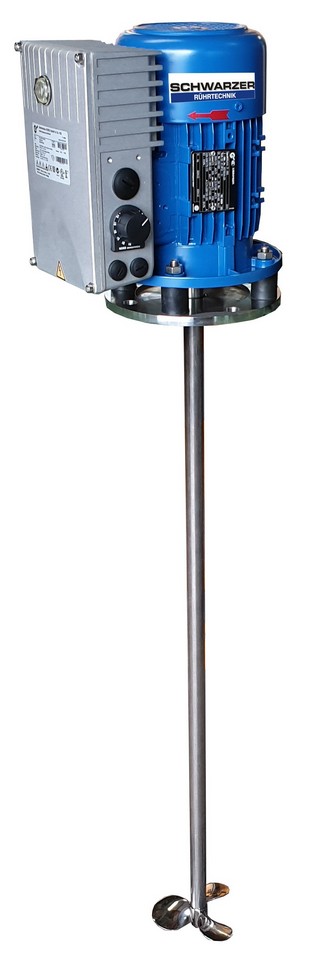

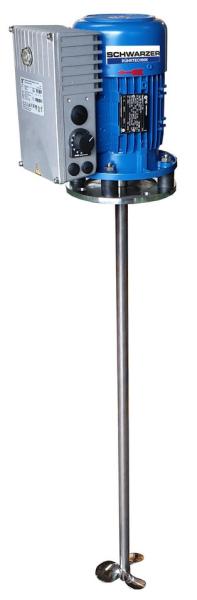

0,75 KW Agitator with frequency converter IP55 | High-speed mixer
High-speed mixer / Propeller agitators for liquids similar to water.
Suitable for up to 1000 liter tank volumes for turbulent mixing.**
With mounted frequency converter IP55
With stainless steel protection flange
Suitable for up to 1000 liter tank volumes for turbulent mixing.**
With mounted frequency converter IP55
With stainless steel protection flange
- Power: 0,75 kW
- Speed: 0-1410 rpm infinitely variable
- Voltage input frequency inverter: 3 phases 400 V 50/60 Hz
- Optional: Voltage input frequency inverter: 1 phase 230 V 50/60 Hz
- Rotary control: 0-100%
- Motor with 3 thermistors (PTC)
- Material in contact with product: 1.4404 stainless steel (AISI316)
- High-speed mixer with solid, non-removable agitator shaft
- Maximum shaft length: 1200mm
- Agitator shaft balanced for concentricity in the speed range
- 1 piece 3-blade mixing propeller Ø=150mm screwed in at the end of the agitator shaft
- Mixing propeller made of cast stainless steel, mirror finish polished
- Flange dimensions: AØ=200mm/LKØ=165mm(4xØ=11,5mm)/ZØ=plain
