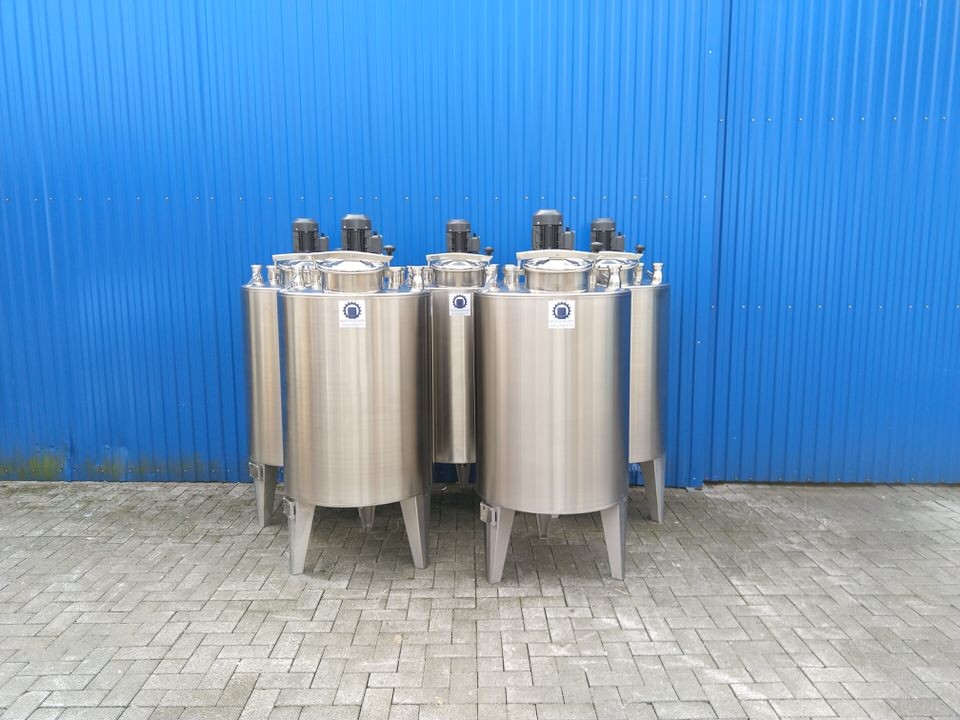

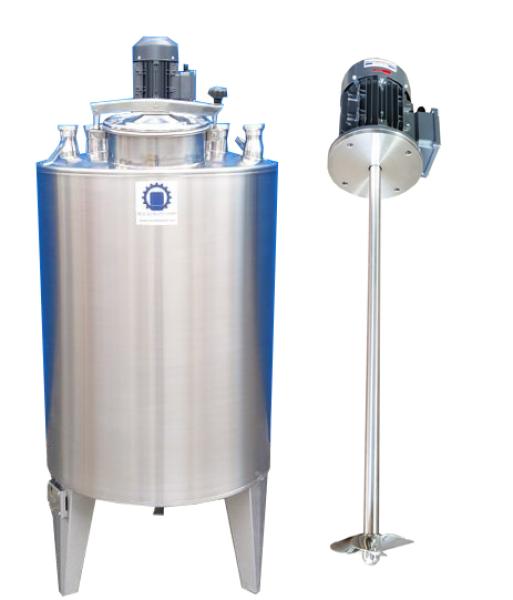

522L stainless steel agitator vessel
Overall description
| Item number | STOC500RWP_1 |
|---|---|
| Condition | Factory new |
| Capacity | 522 l |
| Maximum density | 1.3 Kg/dm³ |
| Delivery time | Ex stock |
Technical data and dimensions
| Max. operating pressure according to type plate | Atmospheric |
|---|---|
| Maximum operating temperature | 95°C |
| Inner diameter | 790mm |
| Outer diamater | 793mm |
| Cylindrical height | 1000mm |
| Overall height | 1655mm |
| Stand feet height | 400mm |
Description
| Item number | STOC500RWP_1 |
|---|---|
| Item type | Factory new storage vessel |
Material
| In contact with product | Stainless steel AISI304 |
|---|---|
| Other parts | Stainless steel AISI304 |
Construction type
| Construction type | Standing on feet |
|---|---|
| Number of fixations | 3 feet |
| Material feet/castors | Stainless steel AISI304 |

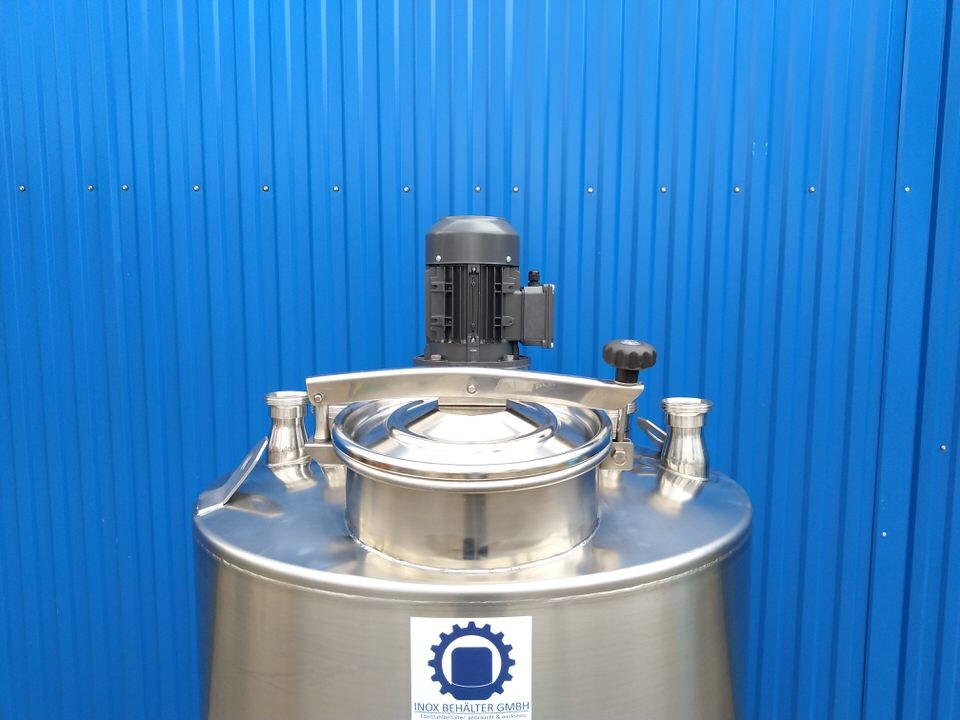

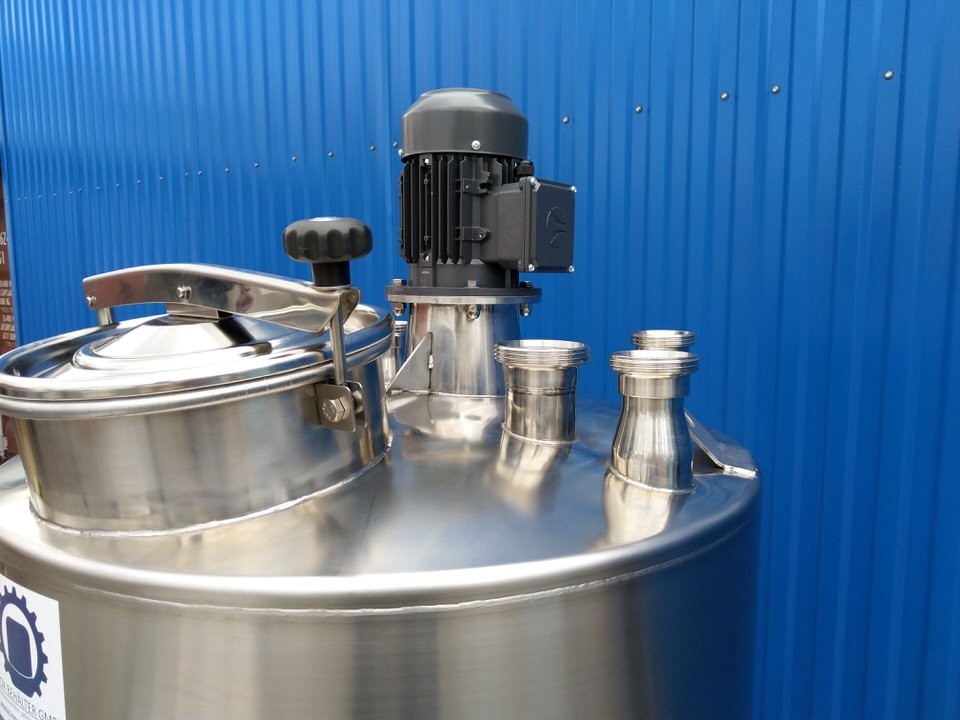

| Extras | Dome cover Ø 300mm, vent valve, DN50 DIN11851 spigot on top, DN25 DIN11851 outlet |
Features
| Design | Single-jacket |
|---|---|
| Insulated | No |
| Pressure vessel | No |
| Spray head (CIP) | No |
| Technical drawing / documents | Yes |
| Type plate | No |
| Outlet | DN50 DIN11851 |
| Outlet valve | Ball valve |
Agitator
| Agitator | Yes |
|---|---|
| Number of agitators | 1 |
| Mixing element | Propeller |
