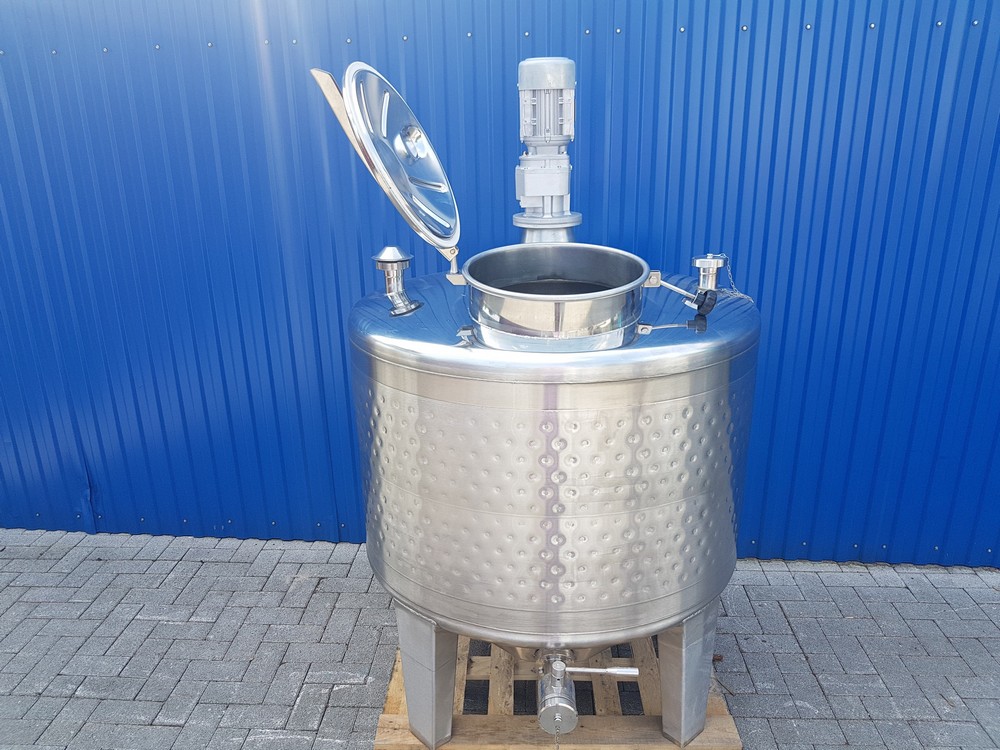

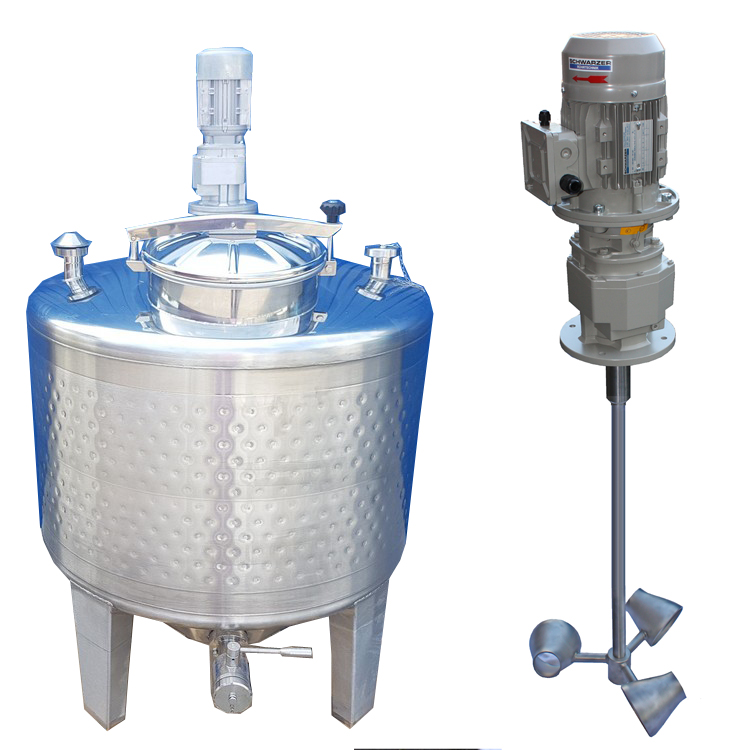

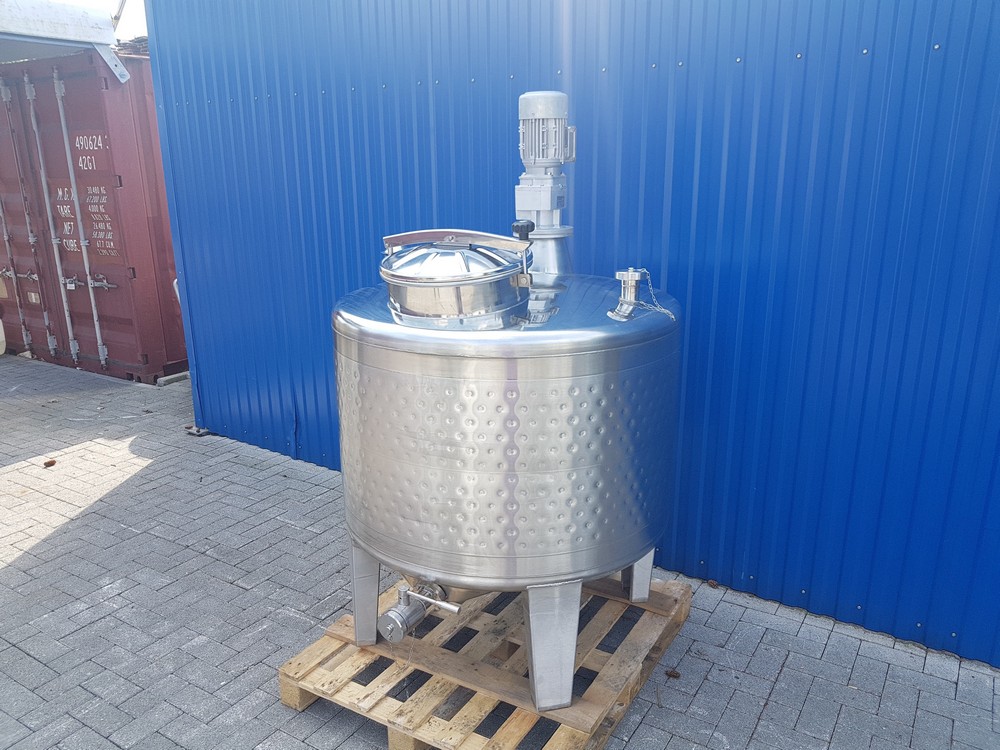

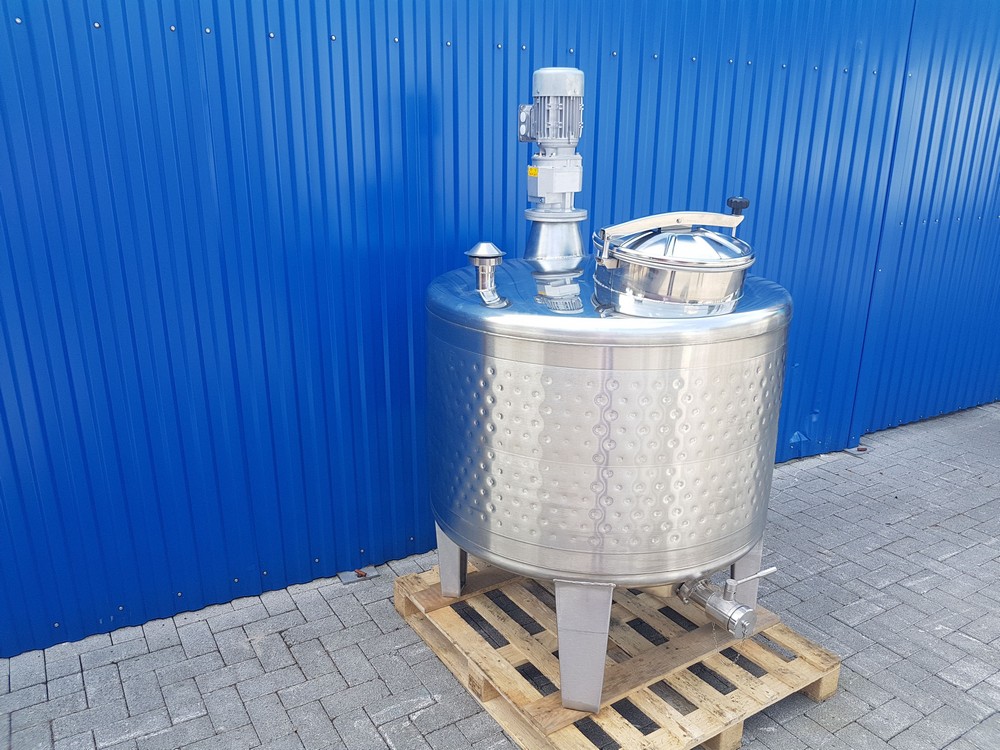

734L Stainless steel vessel with thermoplate and cone stirrer agitator
Overall description
Technical data and dimensions
Description
Material
Construction type
Features
Agitator
| Item number | MTL750TPRWB |
| Condition | Factory new |
| Capacity | 734 l |
| Maximum density | 1.4 Kg/dm³ |
| Delivery time | Ex stock 2-3 days, otherwise 25 days |
Technical data and dimensions
| Max. operating pressure according to type plate | Atmospheric |
| Maximum operating temperature | 95°C |
| Inner diameter | 1080mm |
| Outer diameter | 1084mm |
| Cylindrical height | 625mm |
| Overall height | 1380mm (plus agitator motor) |
| Overall width | 1084mm |
| Stand feet height | 425mm |
Description
| Item number | MTL750TPRWB |
| Item type | Factory new stainless steel agitator vessel with thermoplate and cone stirrer |
Material
| In contact with product | Stainless steel AISI304 |
| Other parts | Stainless steel AISI304 |
Construction type
| Construction type | Standing on feet |
| Number of fixations | 4 feet |
| Material feet/castors | Stainless steel AISI304 |
| Extras | Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3 Bar |
Features
| Design | Double-jacket |
| Insulated | No |
| Pressure vessel | No |
| Spray head (CIP) | No |
| Technical drawing / documents | Yes |
| Type plate | Yes |
| Outlet | DN50 DIN11851 |
| Outlet valve | Ball valve or disc valve (selectable) |
Agitator
| Agitator | Yes |
| Number of agitators | 1 |
| Positioning | On top of vessel |
| Power | 0.75 kW |
| Speed | 190 rpm |
| Stirrer | Cone stirrer |
| Miscellaneous | Operating voltage 3ph 400V |
