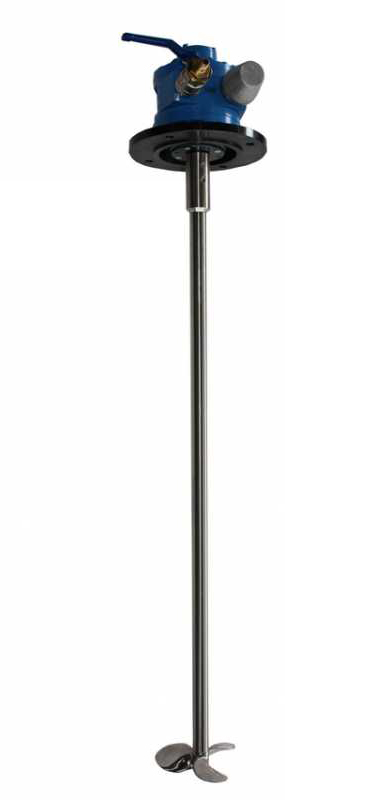

Pneumatic high speed mixer 2,7 KW AISI316
Pneumatic high speed mixer shaft + propeller material AISI316
High speed mixer type:SRTPN2-70
Shaft length: maximum 1100mm.
Agitator shaft removable by with sleeve coupling.
Stirring element: propeller, 1 pcs.Ø=150mm highly polished.
Total agitator weight approx.: 10 Kg
Pneumatic motor 300-3000 UPM 2,7 KW at 6 bar. For intermittent operation.
Air consumption 3600 liters per minute at 6 bar.
Motor with stopcock to regulate the compressed air supply.
Flange dimensions:
AØ=200mm/LKØ=165mm(4xØ=11,5mm)/ZØ=130mm
High speed mixer type:SRTPN2-70
Shaft length: maximum 1100mm.
Agitator shaft removable by with sleeve coupling.
Stirring element: propeller, 1 pcs.Ø=150mm highly polished.
Total agitator weight approx.: 10 Kg
Pneumatic motor 300-3000 UPM 2,7 KW at 6 bar. For intermittent operation.
Air consumption 3600 liters per minute at 6 bar.
Motor with stopcock to regulate the compressed air supply.
Flange dimensions:
AØ=200mm/LKØ=165mm(4xØ=11,5mm)/ZØ=130mm
