AISI tanks 500-1500L

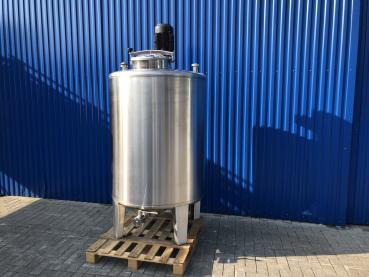

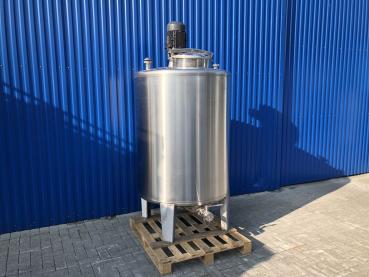

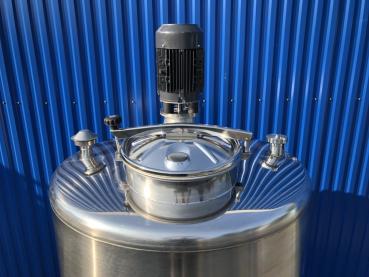

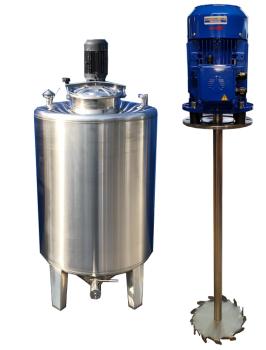

1305L Stainless steel vessel with dissolver agitator

General

Item number	MTL1250RWD
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to floor	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250RWD
Type of item	Factory new stainless steel vessel with dissolver agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection piece, agitator flange connection piece IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	5.5 kW
Speed	1500 rpm
Stirrer	Dissolver disc
Miscellaneous	Voltage 3ph 400V

£ 6,278.28

excl. 20% tax

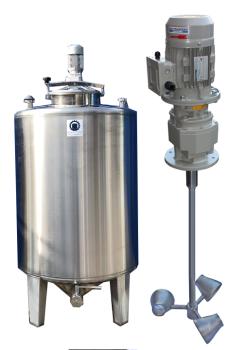

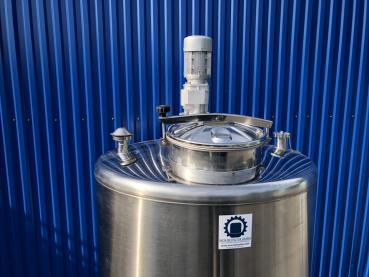

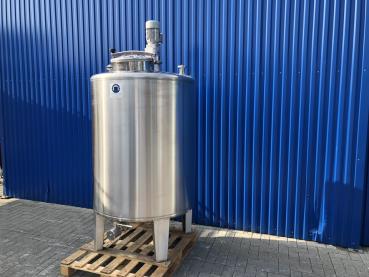

1305L Stainless steel vessel with cone stirrer agitator

General

Item number	MTL1250RWB
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to floor	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250RWB
Type of item	Factory new stainless steel vessel with cone stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection piece, agitator flange connection piece IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	Cone stirrer
Miscellaneous	Voltage 3ph 400V

£ 6,572.65

excl. 20% tax

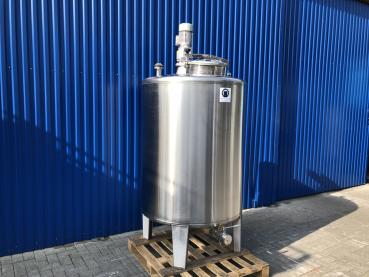

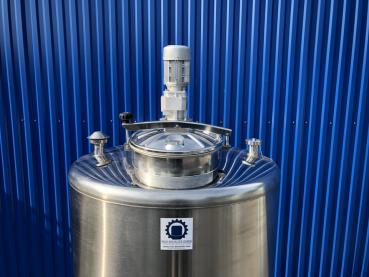

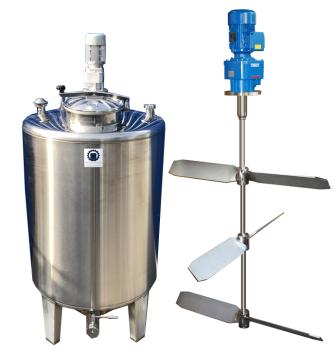

1305L Stainless steel vessel with beam stirrer agitator

General

Item number	MTL1250RWS
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to floor	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250RWS
Type of item	Factory new stainless steel vessel with beam stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection piece, agitator flange connection piece IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	2x cone stirrer
Miscellaneous	Voltage 3ph 400V

£ 6,402.59

excl. 20% tax

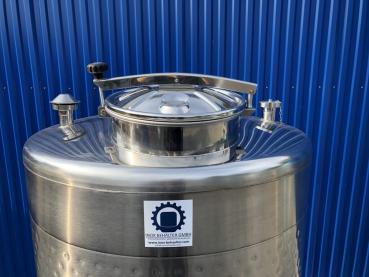

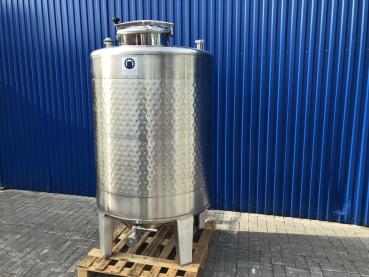

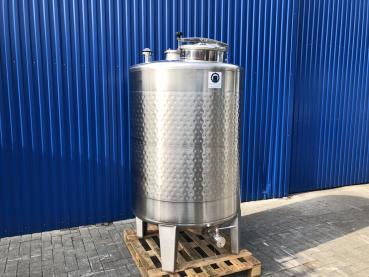

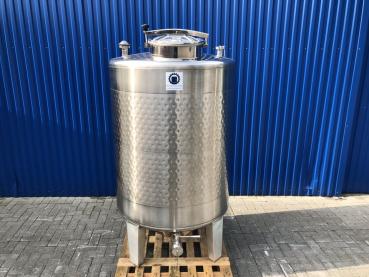

1305L Stainless steel vessel with thermoplate

General

Item number	MTL1250TPRW
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRW
Type of item	Factory-new stainless steel vessel with thermoplate and agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator

£ 4,349.94

excl. 20% tax

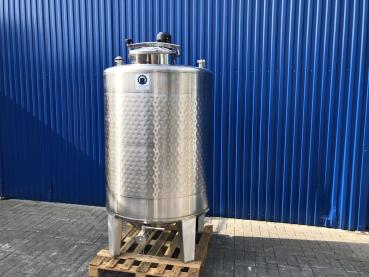

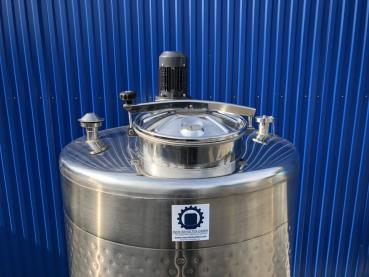

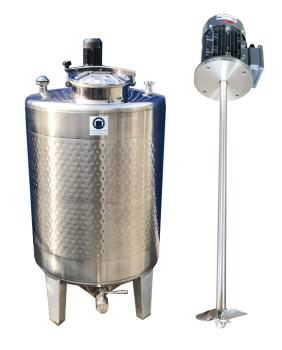

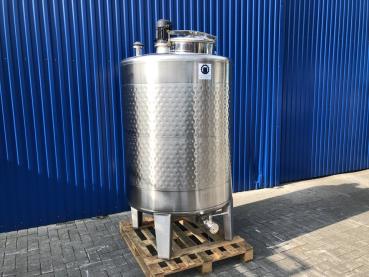

1305L Stainless steel vessel with thermoplate and propeller agitator

General

Item number	MTL1250TPRWP
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to ground	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRWP
Type of item	Factory-new stainless steel agitator vessel with propeller agitator and thermoplate

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	1.1 kW
Speed	1410 rpm
Stirrer	Propeller
Miscellaneous	Voltage 3ph 400V

£ 5,358.37

excl. 20% tax

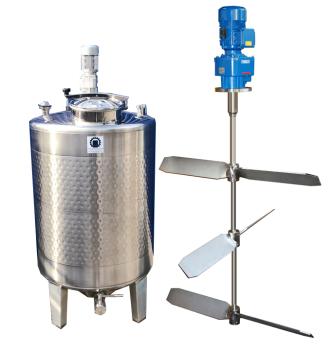

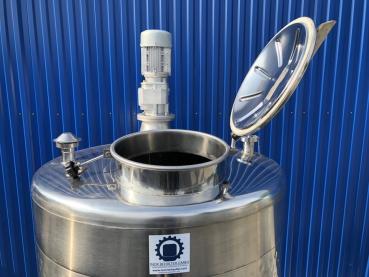

1305L Stainless steel vessel with thermoplate and beam stirrer agitator

General

Item number	MTL1250TPRWS
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to ground	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRWS
Type of item	Factory new stainless steel agitator vessel with beam stirrer agitator and thermoplate

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	2x beam stirrer
Miscellaneous	Voltage 3ph 400V

£ 7,219.08

excl. 20% tax

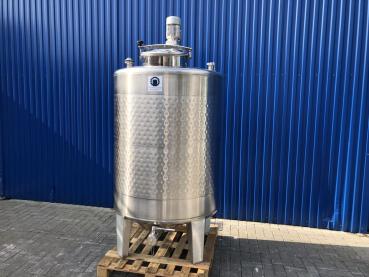

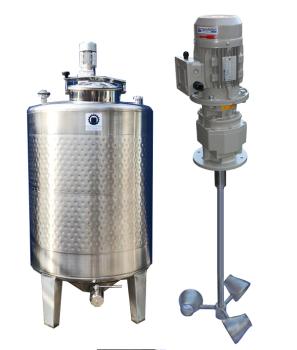

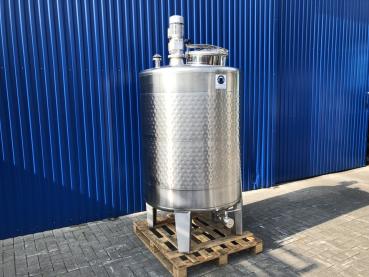

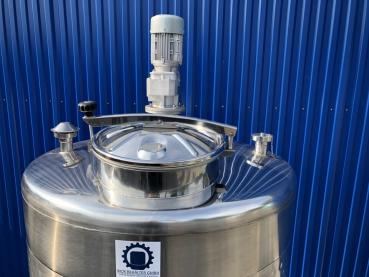

1305L stainless steel vessel with thermoplate and cone stirrer agitator

General

Item number	MTL1250TPRWB
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to ground	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRWB
Type of item	Factory new stainless steel agitator vessel with cone stirrer agitator and thermoplate

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	Cone stirrer
Miscellaneous	Voltage 3ph 400V

£ 7,360.15

excl. 20% tax

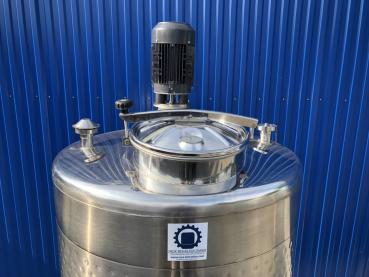

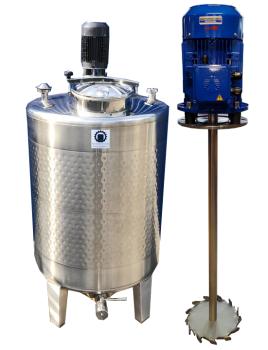

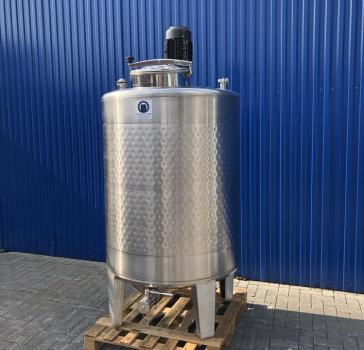

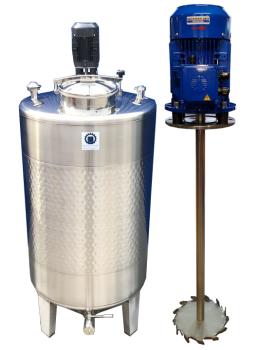

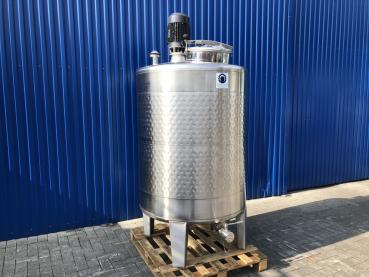

1305L stainless steel vessel with thermoplate and dissolver agitator

General

Item number	MTL1250TPRWD
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to ground	ca. 300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250TPRWD
Type of item	Factory new stainless steel agitator vessel with dissolver agitator and thermoplate

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	5.5 kW
Speed	1410 rpm
Stirrer	Dissolver disc
Miscellaneous	Voltage 3ph 400V

£ 6,958.52

excl. 20% tax

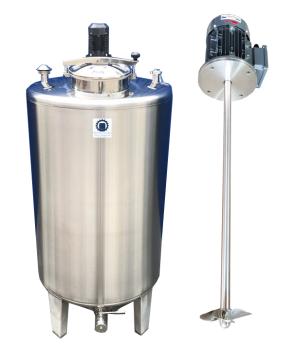

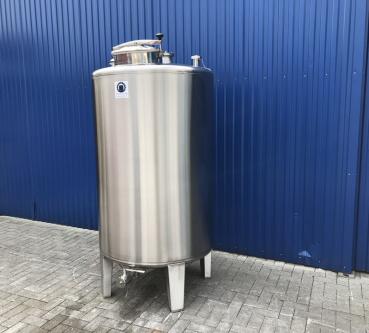

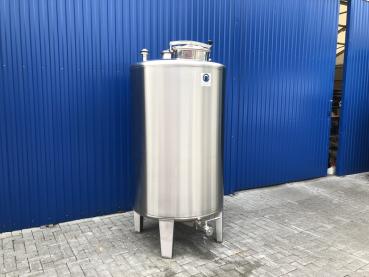

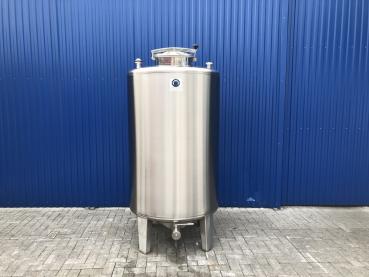

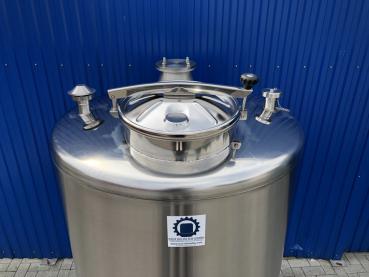

1533L stainless steel vessel with agitator mounting

General

Item number	MTL1500RW
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Total height	2255mm (plus agitator motor)
Total width	1084mm

Description

Item number	MTL1500RW
Type of item	Factory new stainless steel agitator vessel with agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator

£ 3,737.33

excl. 20% tax

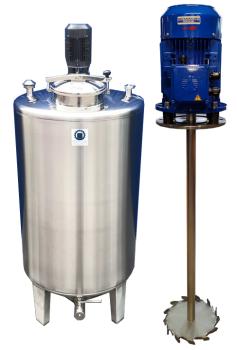

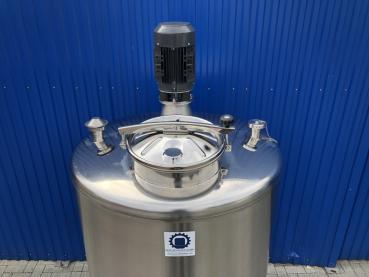

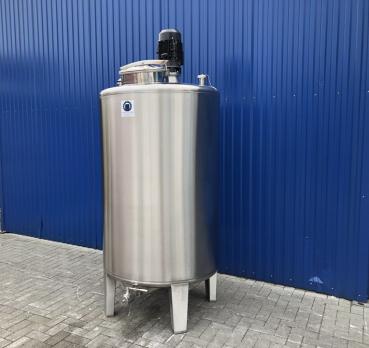

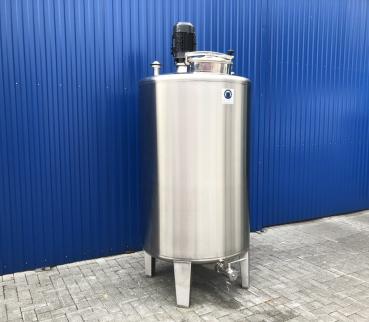

1533L stainless steel vessel with dissolver agitator

General

Item number	MTL1500RWD
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500RWD
Type of item	Factory new stainless steel agitator vessel with dissolver disc agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	5,5 kW
Speed	1500 rpm
Stirrer	Dissolver disc
Miscellaneous	Voltage 3ph 400V

£ 7,204.16

excl. 20% tax

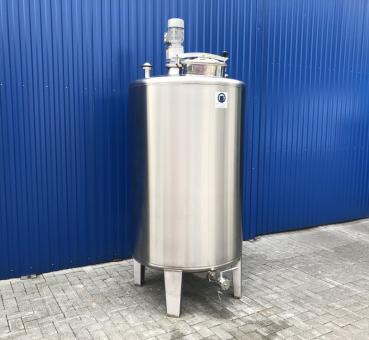

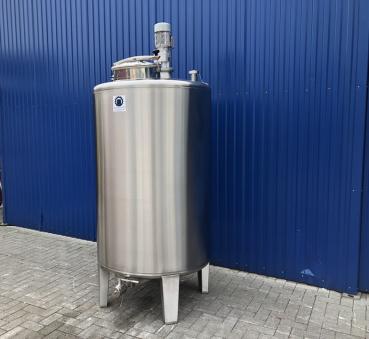

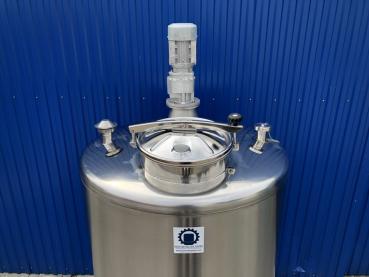

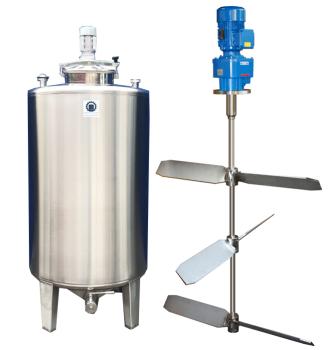

1533L stainless steel vessel with beam stirrer agitator

General

Item number	MTL1500RWS
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500RWS
Type of item	Factory new stainless steel agitator vessel with beam stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0,75 kW
Speed	190 rpm
Stirrer	2x beam stirrer
Miscellaneous	Voltage 3ph 400V

£ 7,286.70

excl. 20% tax

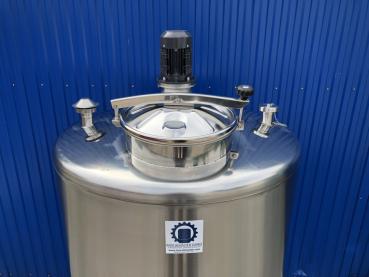

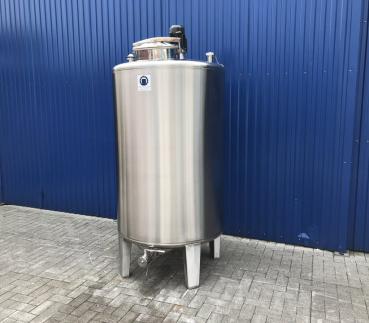

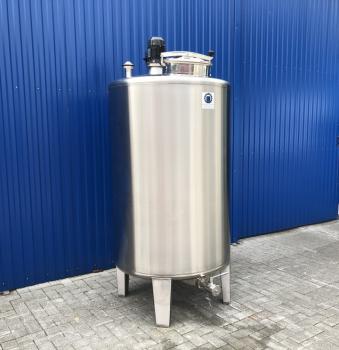

1533L stainless steel vessel with propeller agitator

General

Item number	MTL1500RWP
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500RWP
Type of item	Factory new stainless steel agitator vessel with propeller agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	1.1 kW
Speed	1410 rpm
Stirrer	Propeller
Miscellaneous	Voltage 3ph 400V

£ 5,325.55

excl. 20% tax

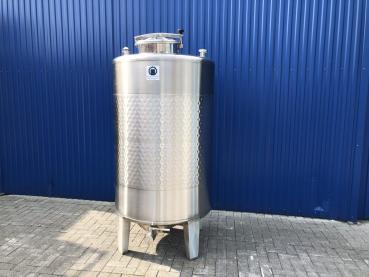

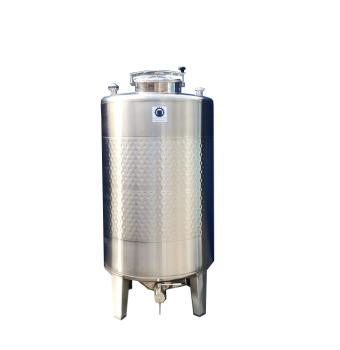

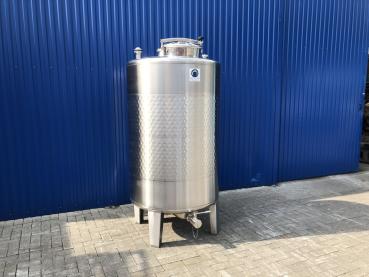

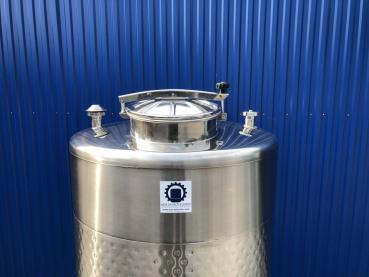

1533L stainless steel vessel with thermoplate

General

Item number	MTL1500TPRW
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Total height	2255mm
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500TPRW
Type of item	Factory-new stainless steel vessel with thermoplate and agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator

£ 4,599.56

excl. 20% tax

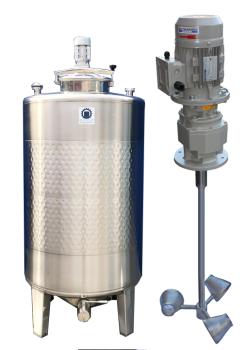

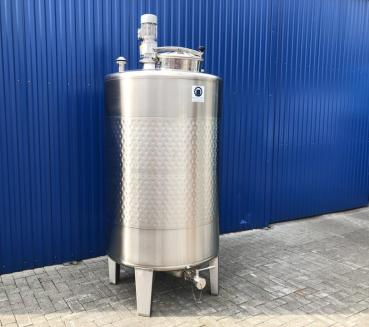

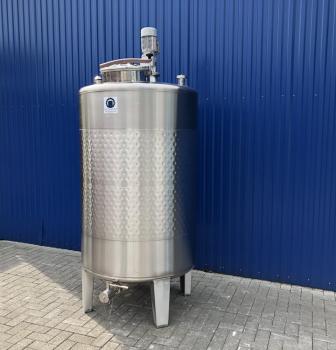

1533L stainless steel vessel with thermoplate and cone stirrer agitator

General

Item number	MTL1500TPRWB
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500TPRWB
Type of item	Factory-new stainless steel vessel with thermoplate and beam stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	1.5 kW
Speed	189 rpm
Stirrer	Cone stirrer
Miscellaneous	Voltage 3ph 400V

£ 8,625.30

excl. 20% tax

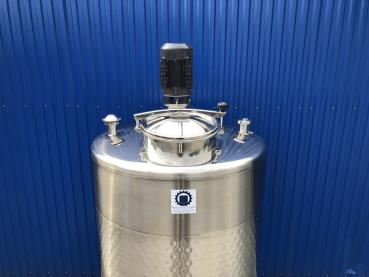

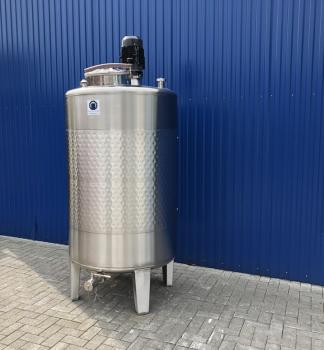

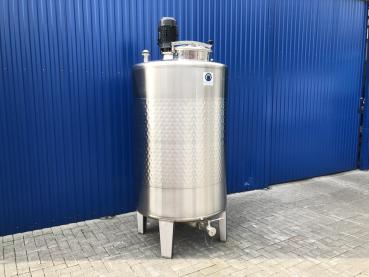

1533L stainless steel vessel with thermoplate and dissolver disc agitator

General

Item number	MTL1500TPRWD
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500TPRWD
Type of item	Factory-new stainless steel vessel with thermoplate and dissolver disc agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	5.5 kW
Speed	1410 rpm
Stirrer	Dissolver disc
Miscellaneous	Voltage 3ph 400V

£ 8,103.19

excl. 20% tax

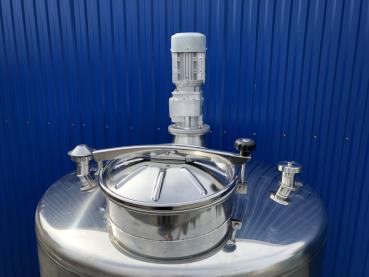

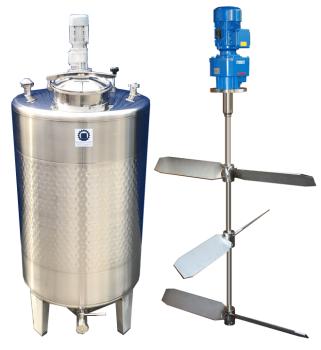

1533L stainless steel vessel with thermoplate and beam stirrer agitator

General

Item number	MTL1500TPRWS
Condition	Factory new
Capacity	1533 l
Maximum density	1.2 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1500mm
Height outlet to ground	ca. 300mm
Total height	2255mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1500TPRWS
Type of item	Factory-new stainless steel vessel with thermoplate and beam stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	1.1 kW
Speed	190 rpm
Stirrer	2x beam stirrer
Miscellaneous	Voltage 3ph 400V

£ 9,180.34

excl. 20% tax

17 to 32 (from a total of 32)
