Heated AISI tank 90-150L

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Factory new electrically heated stainless steel agitator vessel
EBB90RWP
Max. Viscosity: 500mPas
Volume: 97L
Dimensions approx.: Ø 540mm x cyl. height 625mm
Total height: 910mm (+ agitator motor)
Material: 1.4301 stainless steel (AISI304)
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers

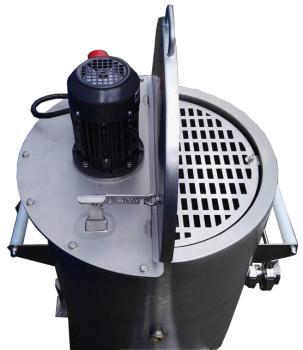

-Top shelf: hinged cover, 1/2 screwed, 1/2 hinged with stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate

Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 6 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug

Agitator: Propeller agitator
Type: SRT4-1000
Make: Schwarzer Rührtechnik GmbH
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range

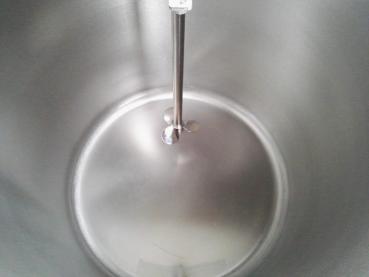

-1 piece 3-blade mixing propeller Ø 125mm screwed in at the end of the agitator shaft, mixing propeller made of cast stainless steel, surface mirror finish polished, seal shaft - agitator EPDM
-Stainless steel flange with V-ring seal, EPDM

Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +450 EUR

£ 4,165.00

excl. 20% tax

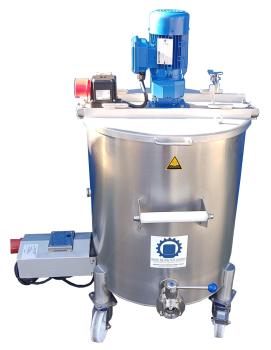

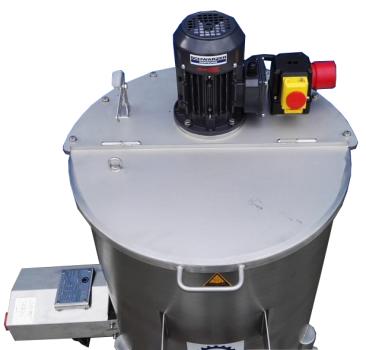

97L electrically heated agitator vessel

£ 4,930.00

excl. 20% tax

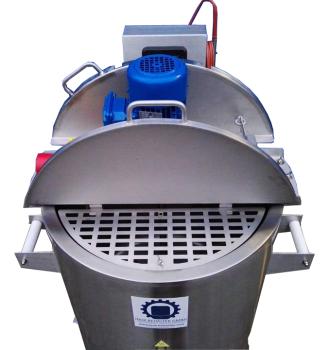

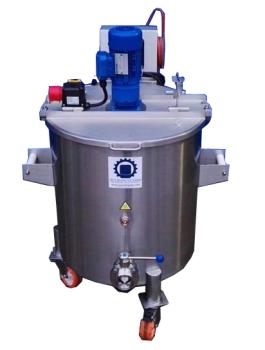

97L Electrically heated agitator vessel with digital control

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Electrically heated stainless steel agitator vessel on wheels with digital control
EBB90RWA-M
Volume: 97L
Dimensions approx.: Ø 480mm x cyl. height 540mm
Total height: 910mm plus switch cabinet/agitator motor
Material: 1.4301 stainless steel V2A
Surface: IIIc / 2B, ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
Weld seams inside and outside ground flush with the sheet metal
-Upright design on three feet with castors
-Top shelf: Central cross member with two halves of hinged lid, stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Double jacket with glycerine filling

Equipment:

1x type plate
2x handle for pushing
1x electric radiator 8KW

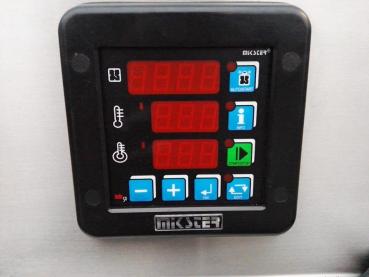

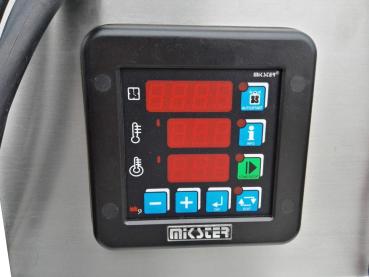

1x stainless steel control cabinet mounted on the side of the tank, digital control of the heating process "Mikster INDU
Preselection of heating temperature radiator, temperature sensor on inner wall of tank with digital display, timer, manual temperature sensor

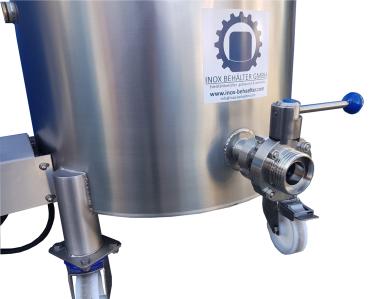

1x outlet fitting DN50 DIN11851 disc valve, seal EPDM

Agitator:
Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 KW
Speed: 21 RPM
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel

-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber
-Massive agitator shaft fixed to the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece space-filling anchor mixing element in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM

Control:

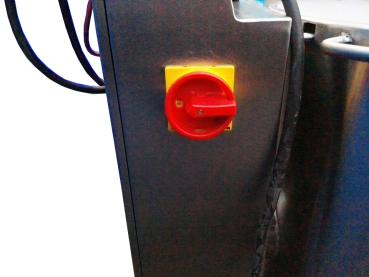

CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +450 EUR

£ 6,120.00

excl. 20% tax

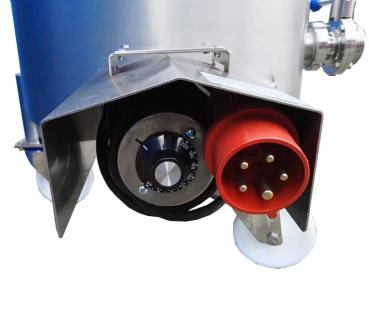

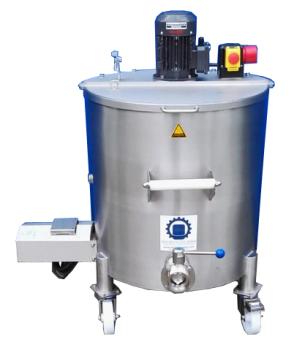

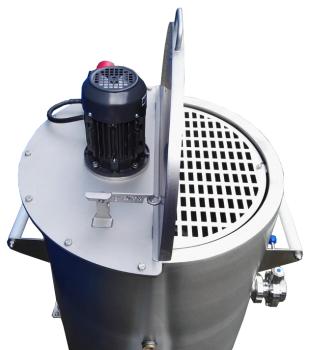

123L Electrically heated agitator vessel

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Factory new electrically heated stainless steel agitator vessel
EBB120RWP
Max. Viscosity: 500mPas
Volume: 123L
Dimensions approx.: Ø 600mm x cyl. height 625mm
Total height: 910mm (+ agitator motor)
Material: 1.4301 stainless steel V2A
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers
-Top shelf: hinged cover, 1/2 screwed, 1/2 hinged with stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate

Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug

Agitator: Propeller agitator
Type: SRT4-1000
Make: Schwarzer Rührtechnik GmbH
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø 125mm screwed in at the end of the agitator shaft, mixing propeller made of cast stainless steel, surface mirror polished, seal shaft agitator EPDM
-Stainless steel flange with V-ring seal, EPDM

Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +475 EUR

£ 4,335.00

excl. 20% tax

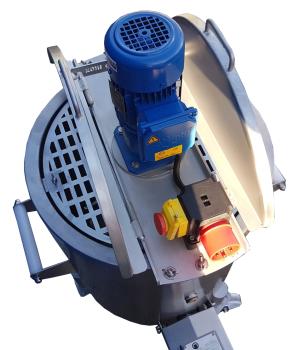

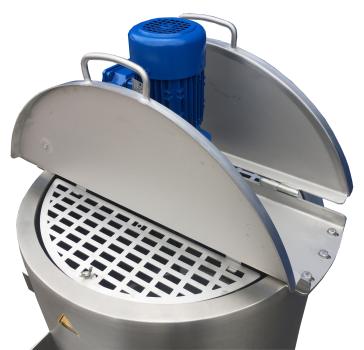

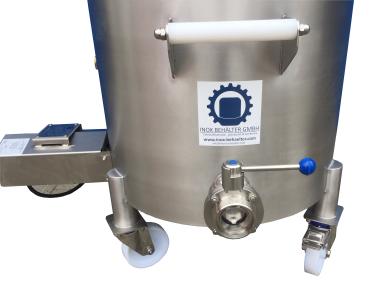

123L electrically heated agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Factory new electrically heated stainless steel agitator vessel
EBB120RWA
Volume: 123L
Dimensions approx.: Ø 600mm x cyl. height 540mm
Total height: 860mm
Material: 1.4301 stainless steel V2A
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers
-Upper bottom: central cross beam for agitator with two hinged lid halves
-Underground: Flat bottom with lateral outlet DN32 DIN11851
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate

Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug

Agitator: Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 kW
Speed: 21 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber"
-Massive agitator shaft fixed to the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece space-filling anchor mixing element in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM

Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +475 EUR

£ 5,542.00

excl. 20% tax

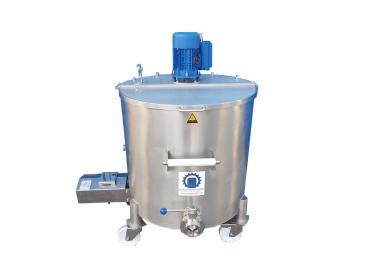

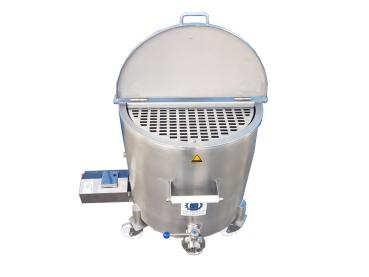

152L electrically heated agitator vessel

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Factory new electrically heated stainless steel agitator vessel
EBB150RWP
Max. Viscosity: 500mPas
Volume: 152L
Dimensions approx.: Ø 660mm x cyl. height 625mm
Total height: 910mm (+ agitator motor)
Material: 1.4301 stainless steel (AISI304)
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers
-Top shelf: hinged cover, 1/2 screwed, 1/2 hinged with stainless steel sheet metal grids as protection against tampering (removable)
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate

Heating system: Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug

Agitator: Propeller agitator
Type: SRT4-1000
Make: Schwarzer Rührtechnik GmbH
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Solid agitator shaft mounted on the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range

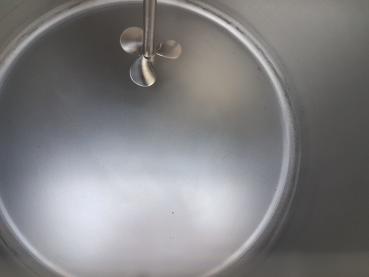

-1 piece 3-blade mixing propeller Ø 125mm screwed in at the end of the agitator shaft, mixing propeller made of cast stainless steel, surface mirror finish polished, seal shaft-agitator shaft EPDM
-Stainless steel flange with V-ring seal, EPDM

Control:

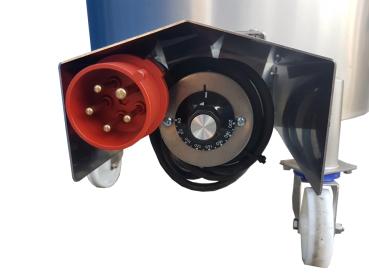

CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR

£ 4,887.50

excl. 20% tax

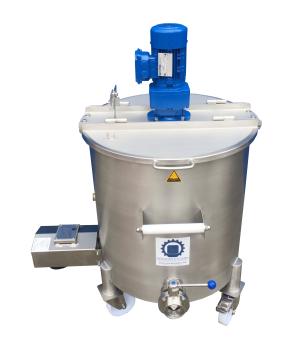

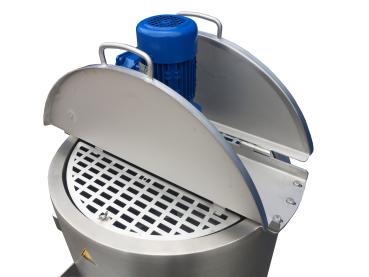

152L electrically heated agitator vessel

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Factory new electrically heated stainless steel agitator vessel
EBB150RWA
Volume: 152L
Dimensions approx.: Ø 660mm x cyl. height 625mm
Total height: 910mm
Material: 1.4301 stainless steel (AISI304)
Surface: Sanded matt inside and outside
Weld seams ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
-Upright design on rollers
-Upper bottom: central traverse for agitator with two hinged lid halves

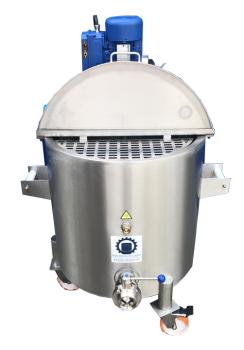

-Stainless steel sheet metal grids underneath the hinged cover as protection against tampering
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Agitator flange socket on the top
-2x handle to push
-1x Nameplate

Heating system:
Indirect heating
Double jacket around the tank with glycerine filling as heat transfer medium.
Heating is effected by electric heating elements in the double jacket.
Control range starting at 60°C
Power: 9 kW
Operating voltage: 3PH 400V
Incl. supply cable 16A CEE plug

Agitator:
Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 kW
Speed: 21 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber
-Solid agitator shaft mounted on the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range

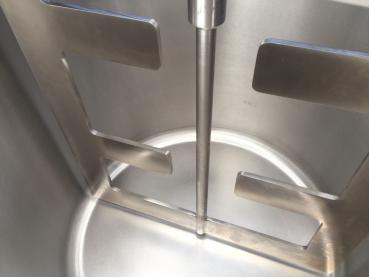

-1 piece space-filling anchor stirrer in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM

Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR

£ 5,712.00

excl. 20% tax

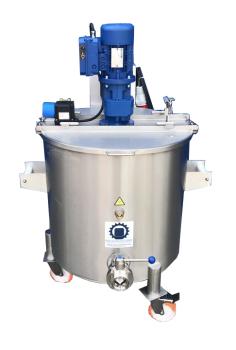

152L electrically heated agitator vessel with digital control

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw

Technical description:

Electrically heated agitator vessel on rollers with digital control
EBB150RWA-M
Volume: 152L
Dimensions approx.: Ø 660mm x cyl. height 625mm
Total height: 910mm
Material: 1.4301 stainless steel V2A
Surface: IIIc / 2B, ground
Operating temperature max.: 110°C
Operating pressure tank: ATM
Weld seams inside and outside ground flush with the sheet metal
-Upright design on three feet with castors
-Top shelf: Open, stainless steel dust cover with handle in the middle
-Underground: Flat bottom with lateral outlet DN50 DIN11851 and disc valve
-Double jacket with glycerine filling

Equipment:

2x handle to push
1x electric radiator 9KW
1x stainless steel control cabinet mounted on the side of the tank, digital control of the heating process "Mikster INDU
Preselection of heating temperature radiator, temperature sensor on inner wall of tank with digital display, timer
1x outlet fitting DN50 DIN11851 disc valve, seal EPDM
1x name plate

Agitator:
Slow running anchor agitator
Type: SRTGMK/0.12-21
Make: Schwarzer Rührtechnik GmbH
Power: 0,12 kW
Speed: 21 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Gear unit and motor in latest aluminium technology, make Getriebebau NORD
Gear units with food-grade approved oil filling "Klüber
-Solid agitator shaft mounted on the agitator motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece space-filling anchor stirrer in the vessel, weld seams ground, arranged close to the wall
-Stainless steel flange with shaft sealing ring, EPDM

Control:
CEE plug switch on the container with zero voltage release and phase inverter, emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR

£ 7,055.00

excl. 20% tax

1 to 8 (from a total of 8)
