AISI tanks 50-500L

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse

Technical description:

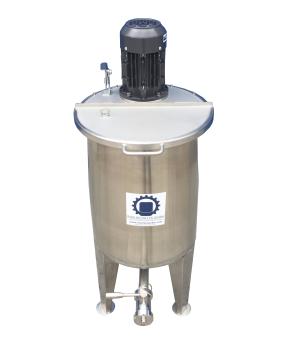

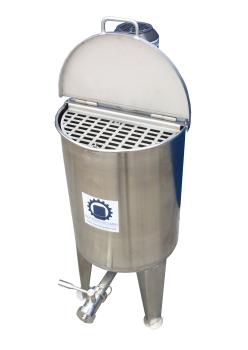

Brand new stainless steel agitator vessel
Suitable for liquids up to approx. 500mPas
Type: CILC50RWP

Volume: 57L
Type: Vertical design on feet
Design: Single wall
Material (in contact with liquid): 1.4301 stainless steel
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: Hinged cover, 1/2 screwed, 1/2 hinged

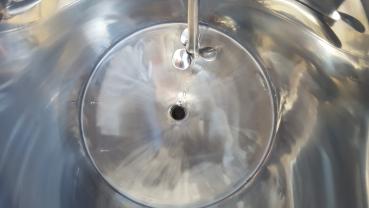

Bottom: Conical bottom with pipe drawn forward

Tank dimensions:

Tank diameter: 384mm
Total height: 830mm (plus agitator motor)
Cyl. height: 500mm
Height of the feet: 330mm

Equipment:

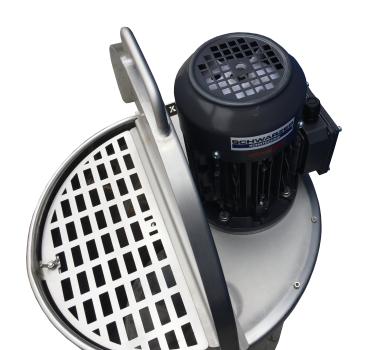

- Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
- Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851

Agitator:

Propeller agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRT0-12-750
Power: 0,12 kW
Speed: 690 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø100mm screwed in at the end of the agitator shaft
-Stainless steel flange with V-ring seal, EPDM

Option for: Variable speed control by attached frequency converter: +625 EUR

£ 1,785.00

excl. 20% tax

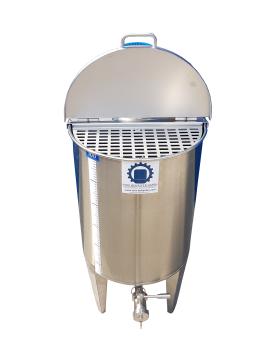

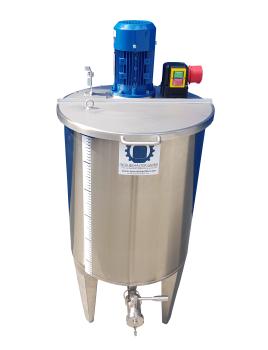

109L stainless steel agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 500mPas
Type: CILC100BRWP

Volume: 109L
Type: Vertical design on feet
Design: Single wall
Material (in contact with product): 1.4301 stainless steel (AISI304)
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: hinged cover, 1/2 screwed, 1/2 hinged

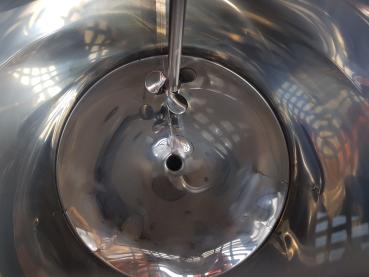

Bottom: conical bottom with pipe DN25 DIN11851 pulled forward

Tank dimensions:

Container diameter: 477mm
Total height: 930mm (plus agitator motor)
Cyl. height: 600mm
Height of the feet: 330mm

Equipment:

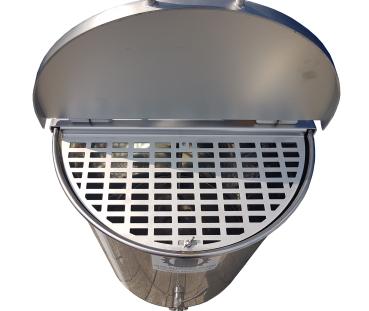

-Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
-Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851

Agitator:

Propeller agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRT0-25-1000
Power: 0,25 kW
Speed: 980 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Massive agitator shaft attached to the stirrer motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø125mm screwed in at the end of the agitator shaft
-Stainless steel flange with V-ring seal, EPDM

Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, phase inverter, zero voltage trigger

Option for: Variable speed control by attached frequency converter: +625 EUR
Option for: outlet and ball valve DN50 DIN11851: +80 EUR

£ 1,972.85

excl. 20% tax

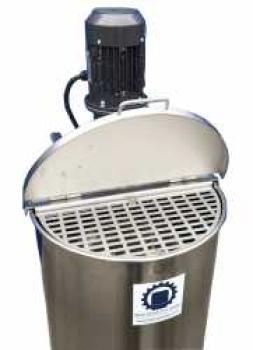

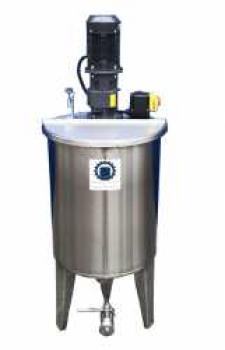

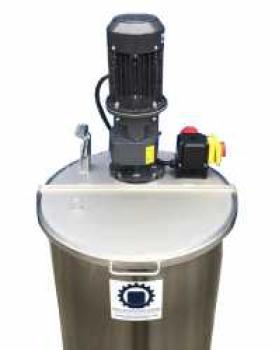

109L stainless steel agitator tank

An offer from INOX Behälter GmbH
http://www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 2000mPas
Type: CILC100BRWS

Volume: 109L
Type: Vertical design on feet
Design: Single wall
Material (in contact with product): 1.4301 stainless steel (AISI304)
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: hinged cover, 1/2 screwed, 1/2 hinged
Bottom: conical bottom with pipe DN25 DIN11851 pulled forward

Tank dimensions:

Container diameter: 477mm
Total height: 930mm (plus agitator motor)
Cyl. height: 600mm
Height of the feet: 330mm

Equipment:

-Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
-Latching function for hinged lid
-1x outlet valve DN25 ball valve DIN11851

Agitator:

Slow running gear agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRTGMK/0.12-100
Power: 0,12 kW
Speed: 100 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the gear motor with sleeve coupling, removable
-Agitator shaft balanced for concentricity in the speed range

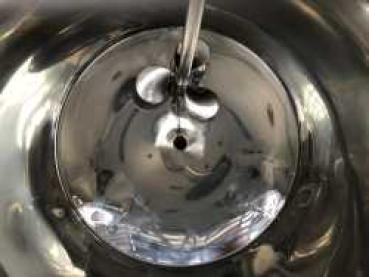

-1 piece of 3-blade mixing propeller Ø175mm screwed in at the end of the agitator shaft. Mixing propeller made of cast stainless steel, surface mirror finish polished
-Stainless steel flange with V-ring seal, EPDM

Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, phase inverter, zero voltage trigger

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: outlet and ball valve DN50 DIN11851: +80 EUR

£ 2,056.63

excl. 20% tax

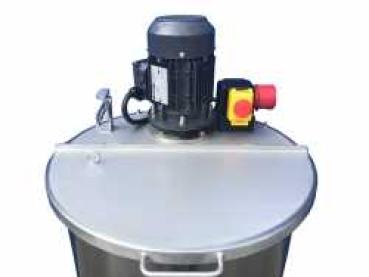

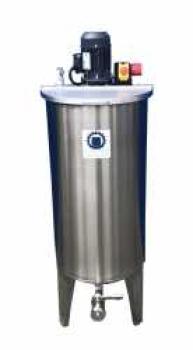

162L stainless steel agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 500mPas
Type: CILC150RWP

Volume: 162L
Type: Vertical design on feet
Design: Single wall
Material (in contact with product): 1.4301 stainless steel (AISI304)
Surface: Satin finish outside, BA (IIId) inside
Welded seams inside: Pickled, passivated and brushed
Operating pressure: Atmospheric
Top panel: hinged cover, 1/2 screwed, 1/2 hinged
Bottom: conical bottom with pipe drawn forward DN32 DIN11851

Tank dimensions:

Container diameter: 477mm
Total height: 1230mm (plus agitator motor)
Cyl. height: 900mm
Height of the feet: 330mm

Equipment:

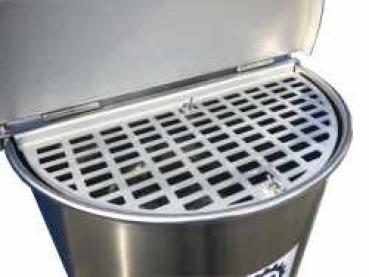

-Hinged cover with stainless steel sheet metal grating as protection against tampering, screwed, removable
-Latching function for hinged lid
-1x outlet valve DN32 ball valve DIN11851

Agitator:

Propeller agitator
Make: Schwarzer Rührtechnik GmbH
Type: SRT0-25-1500
Power: 0,25 kW
Speed: 1410 rpm
Operating voltage: 3PH 400V
Material in contact with product: 1.4301 stainless steel (AISI304)

-Massive agitator shaft attached to the stirrer motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø100mm screwed in at the end of the agitator shaft
-Stainless steel flange with V-ring seal, EPDM, motor oscillating on 4x neoprene rubber-metal buffers

Agitator control:
CEE plug switch on the container, on/off switch, emergency stop, phase inverter, zero voltage trigger

Option for: Variable speed control by attached frequency converter: +665 EUR

£ 1,564.85

excl. 20% tax

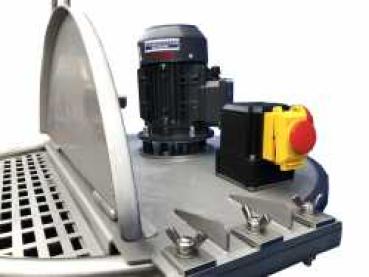

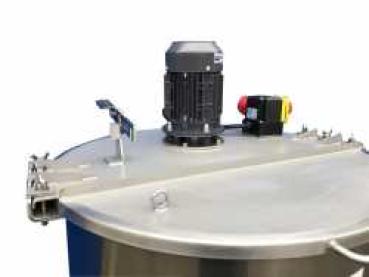

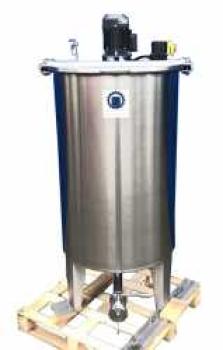

337L stainless steel agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 500mPas
Type: CILC300RWP

Volume: 337L
Dimensions approx.: Ø 650mm x cyl. height 1000mm
Total height approx.: 1390mm (plus agitator motor)
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA (IIId), outside satin
Weld seams in the container pickled, passivated and brushed
-Upright design on three feet
-Top shelf: hinged lid, 2/3 screwed, 1/3 hinged
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable
-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Outlet fitting ball valve DN50 DIN11851
-Agitator flange on the upper bottom
-Type plate

Agitator:

Propeller agitator for low viscosity liquids
Type: SRT0-37-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,37 kW
Speed: 1410 rpm
Voltage: 3PH 400V

-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø 125mm at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, gasket V-ring, EPDM, motor oscillating on neoprene rubber metal buffers

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop

Option for: Variable speed control by attached frequency converter: +665 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +300 EUR

£ 2,497.19

excl. 20% tax

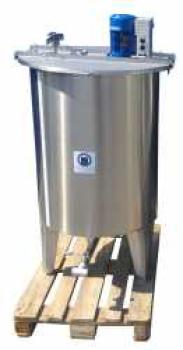

510L stainless steel agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 600mPas
Type: CILC500RWP

Volume: 510L
Dimensions approx.: Ø 790mm x cyl. height 1000mm
Total height approx.: 1400mm (plus agitator motor
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA (IIId), outside satin
Weld seams in the container pickled, passivated and brushed
-Upright design on three feet

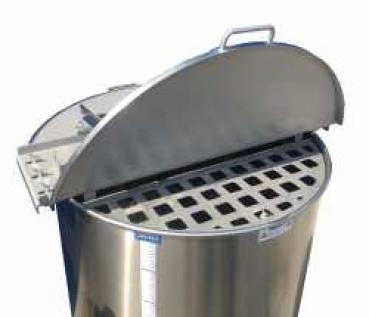

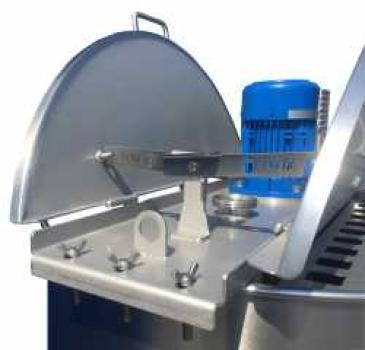

-Top shelf: hinged lid, central cross-member with 2 hinged lid halves with latching function (can be locked in 90° open position)
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable

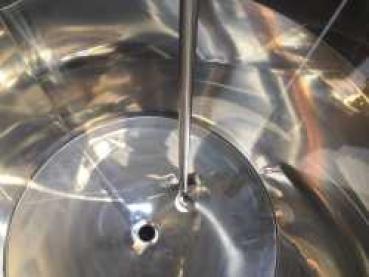

-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Drainage fitting ball valve 1DN50 DIN11851
-Agitator flange on the upper bottom
-1x spare socket DN50 DIN11851 on the top with blind cap
-Type plate

Agitator:

Propeller agitator for low viscosity media
Type: SRT0-75-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 1410 rpm
Voltage: 3PH 400V

-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller Ø 150mm at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, sealing V-ring, EPDM

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop

Option for: Variable speed control by attached frequency converter: +745 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR

£ 3,458.87

excl. 20% tax

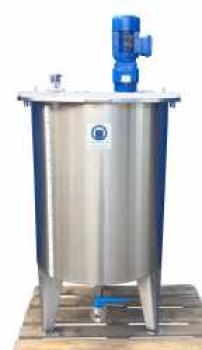

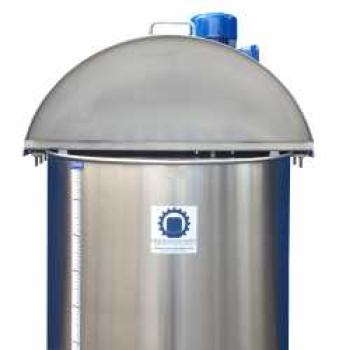

510L stainless steel agitator tank

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

Technical description:

Brand new stainless steel agitator vessel
Suitable for liquids up to 3000mPas
Type: CILC500RWS

Volume: 510L
Dimensions approx.: Ø 790mm x cyl. height 1000mm
Total height approx.: 1650mm
Material: 1.4301 stainless steel (AISI304)
Surface: Inside BA, outside satin
Weld seams in the container pickled, passivated and brushed, outside brushed
-Upright design on three feet

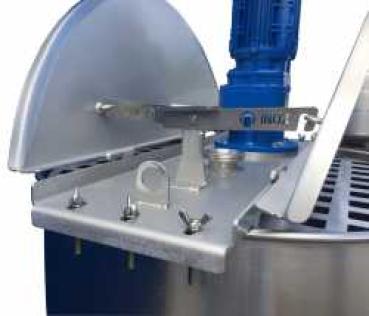

-Top shelf: hinged lid, central cross-member with 2 hinged lid halves with latching function (can be locked in 90° open position)
-Sheet metal grates underneath the hinged cover as protection against trapping, screwed, removable
-Underside: conical bottom with central outlet and forward pulled pipeline DN50 DIN11851
-Outlet fitting ball valve DN50 DIN11851
-Agitator flange on the upper bottom
-1x spare socket DN50 DIN11851 on the top with blind cap
-Type plate

Agitator:

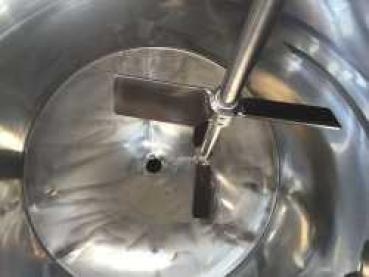

Beam agitator
Type: SRTGMK/0.75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kW
Speed: 190 rpm
Voltage: 3PH 400V

-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the agitator motor with sleeve coupling
-Agitator shaft balanced for concentricity in the speed range
-2 pieces 2-blade beam stirrer Ø 395mm height adjustable on the shaft, weld seams stained, passivated and brushed
-Stainless steel flange, sealing V-ring, EPDM

Agitator control:
CEE plug switch on the container with on/off switch, phase inverter, zero voltage release and emergency stop

Option for: Variable speed control by attached frequency converter: +745 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR

£ 4,107.29

excl. 20% tax

1 to 7 (from a total of 7)
