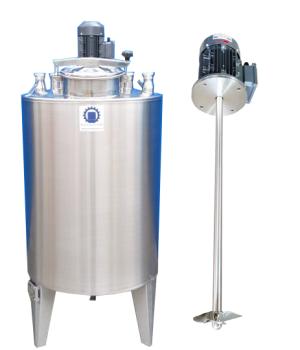

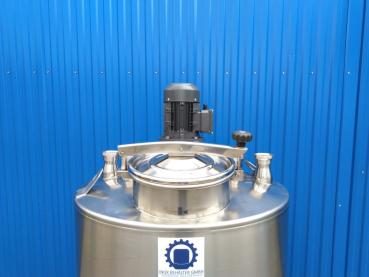

AISI tanks 500-1500L

Overall description

Item number	STOC500RWP_1
Condition	Factory new
Capacity	522 l
Maximum density	1.3 Kg/dm³
Delivery time	Ex stock

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	790mm
Outer diamater	793mm
Cylindrical height	1000mm
Overall height	1655mm
Stand feet height	400mm

Description

Item number	STOC500RWP_1
Item type	Factory new storage vessel

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	3 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 300mm, vent valve, DN50 DIN11851 spigot on top, DN25 DIN11851 outlet

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	No
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Mixing element	Propeller

£ 5,552.29

excl. 20% tax

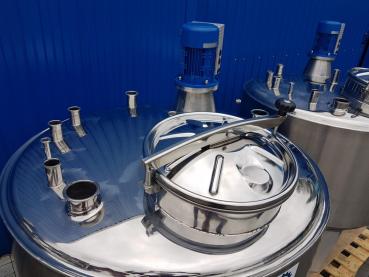

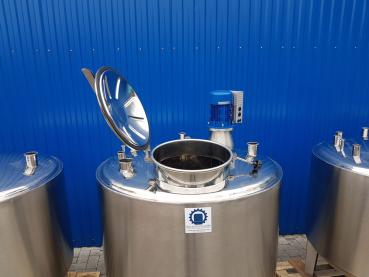

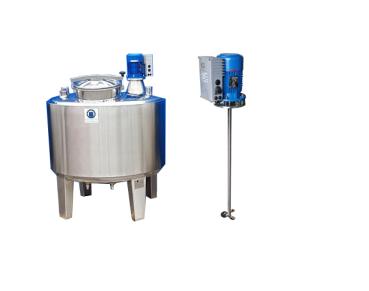

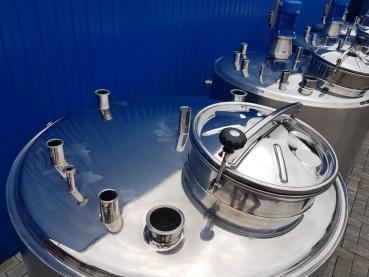

699L stainless steel agitator vessel with thermoplate and insulation

Overall description

Item number	MTH750RWPTPISO
Condition	Factory new
Capacity	699 l
Delivery time	Ex stock

Technical data an dimensions

Max. Operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diamater	1080mm
Outer diameter	1150mm
Cylindrical height	625mm
Height outlet to ground	240mm
Total height	1280mm (plus agitator motor)
Total width	1150mm
Stand feet height	430mm

Description

Item number	MTH750RWPTPISO
Item type	Factory new stainless steel agitator vessel with propeller agitator, double jacket and insulation

Material

In contact with product	Stainless steel AISI316
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Various nozzles, thermoplate / double jacket around cylinder and underbody, insulation, dome cover Ø 400mm

Features

Design	Double-jacket
Insulated	Yes
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	Flange DN65

Agitator

Agitator	Yes
Number of agitators	1
Position	On top of vessel
Power	0.75 kW
RPM	0-1690 rpm infinitely variable
Mixing element	Propeller
Miscellaneous	Operating voltage 3PH 400V

£ 6,748.68

excl. 20% tax

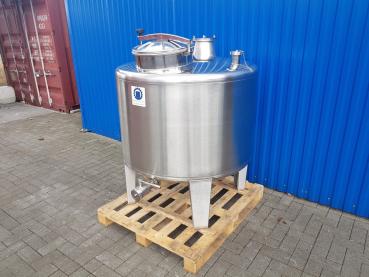

734L Stainless steel vessel

Overall description

Item number	MTL750RW
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	85°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RW
Item type	Factory new stainless steel vessel with agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI316

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and venting valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	No

£ 3,147.59

excl. 20% tax

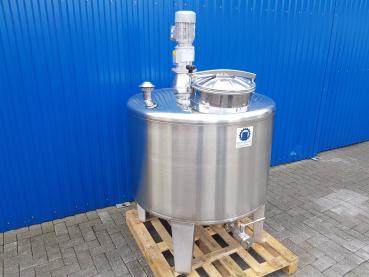

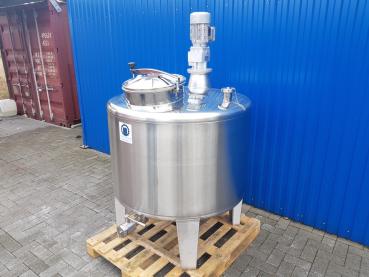

734L Stainless steel vessel with cone stirrer agitator

Overall description

Item number	MTL750RWB
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWB
Item type	Factory new stainless steel agitator vessel with cone stirrer agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top of vessel
Power	0.75 kW
Speed	190 rpm
Stirrer	Cone stirrer
Miscellaneous	Operating voltage 3ph 400V

£ 6,121.15

excl. 20% tax

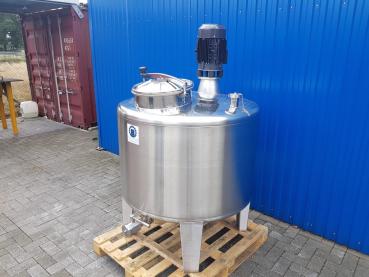

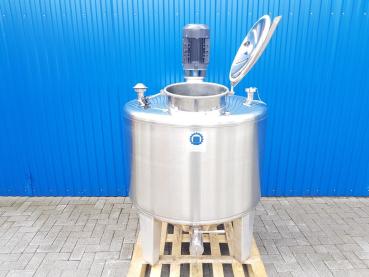

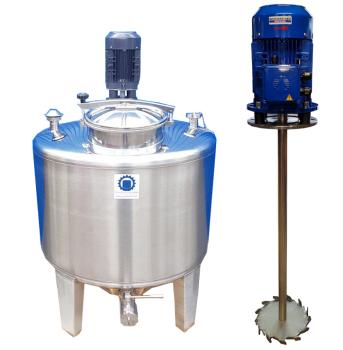

734L stainless steel vessel with dissolver agitator

Overall description

Item number	MTL750RWD
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWD
Item type	Factory new stainless steel agitator vessel with dissolver

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top of vessel
Power	5,5 kW
Speed	1500 rpm
Stirrer	Dissolver disc
Miscellaneous	Operating voltage 3ph 400V

£ 5,779.04

excl. 20% tax

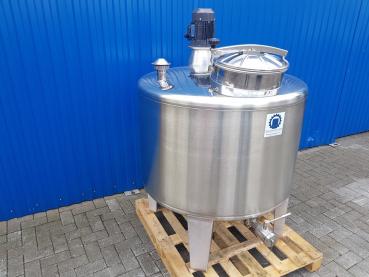

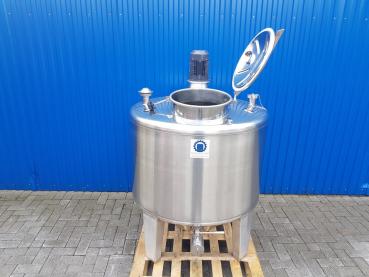

734L stainless steel vessel with propeller agitator

Overall description

Item number	MTL750RWP
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWD
Item type	Factory new stainless steel agitator vessel with propeller agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top of vessel
Power	0.75 kW
Speed	1500 rpm
Stirrer	Propeller
Miscellaneous	Operating voltage 3ph 400V

£ 4,190.82

excl. 20% tax

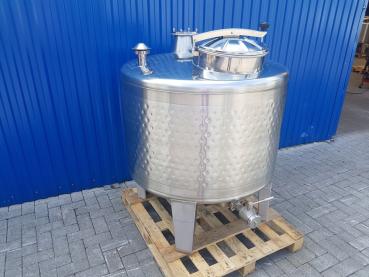

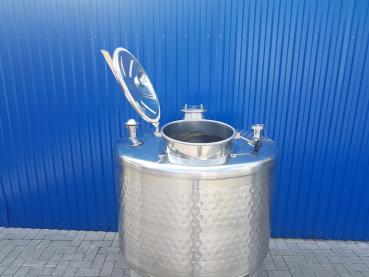

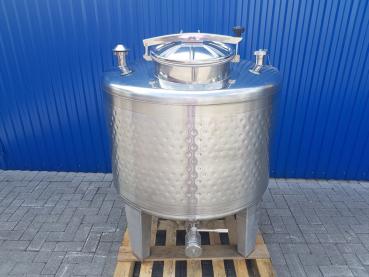

734L stainless steel vessel with thermoplate

Overall description

Item number	MTL750TPRW
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWD
Item type	Factory new stainless steel agitator vessel with thermoplate and agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 spigot, agitator flange spigot IEC200

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

£ 3,942.20

excl. 20% tax

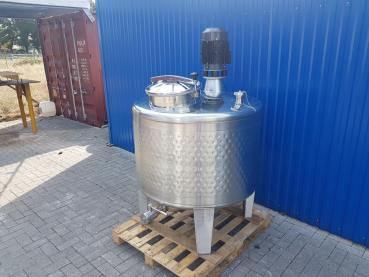

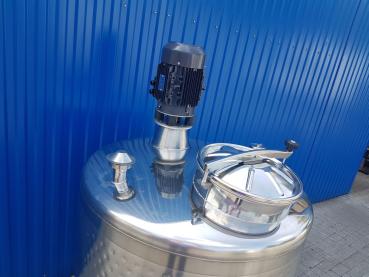

734L Stainless steel vessel with thermoplate and dissolver agitator

Overall description

Item number	MTL750TPRWD
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750RWD
Item type	Factory new stainless steel agitator vessel with thermoplate and dissolver

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3 Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top of vessel
Power	5.5 kW
Speed	1410 rpm
Stirrer	Dissolver disc
Miscellaneous	Operating voltage 3ph 400V

£ 6,548.78

excl. 20% tax

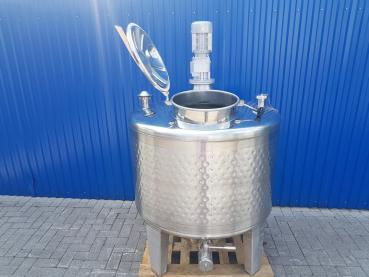

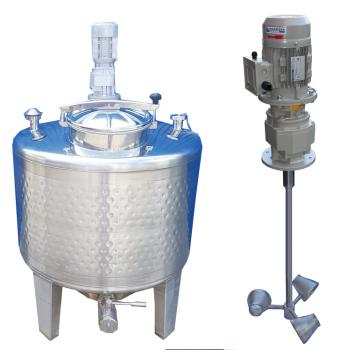

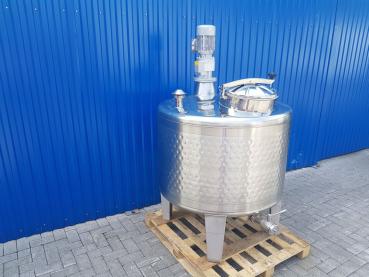

734L Stainless steel vessel with thermoplate and cone stirrer agitator

Overall description

Item number	MTL750TPRWB
Condition	Factory new
Capacity	734 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise 25 days

Technical data and dimensions

Max. operating pressure according to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	625mm
Overall height	1380mm (plus agitator motor)
Overall width	1084mm
Stand feet height	425mm

Description

Item number	MTL750TPRWB
Item type	Factory new stainless steel agitator vessel with thermoplate and cone stirrer

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Construction type

Construction type	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection, agitator flange connection IEC200, thermoplate around the cyl. part, operating pressure max. +3 Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head (CIP)	No
Technical drawing / documents	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top of vessel
Power	0.75 kW
Speed	190 rpm
Stirrer	Cone stirrer
Miscellaneous	Operating voltage 3ph 400V

£ 6,889.90

excl. 20% tax

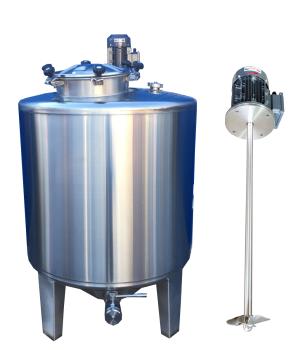

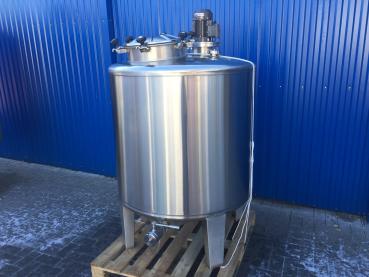

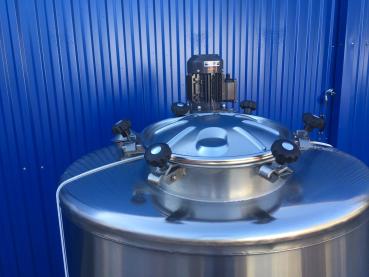

1000L stainless steel vessel with propeller agitator

General

Item number	MTL1000RWP
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	80°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (incl. agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000RWP
Type of item	Factory new stainless steel agitator vessel with propeller agitator

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material castors	Stainless steel AISI304 V2A
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and deaeration valve

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	1410 rpm
Stirrer	Propeller
Miscellaneous	Voltage 3ph 400V

£ 4,179.88

excl. 20% tax

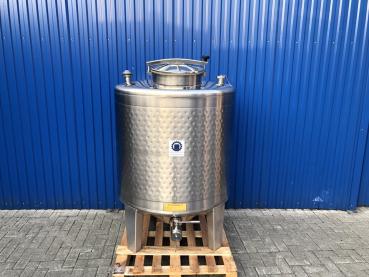

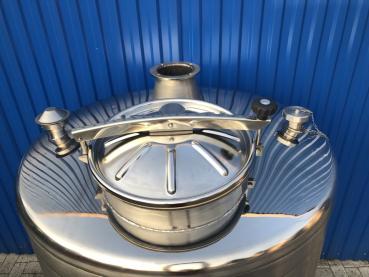

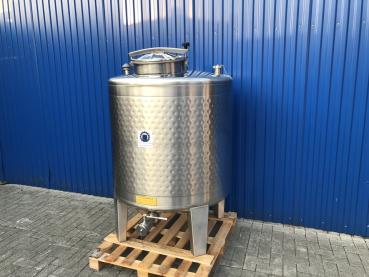

1000L stainless steel vessel with thermoplate

General

Item number	MTL1000TPRW
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRW
Type of item	Factory new stainless steel vessel with thermoplate and agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304 V2A
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and deaeration valve

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator

£ 4,026.73

excl. 20% tax

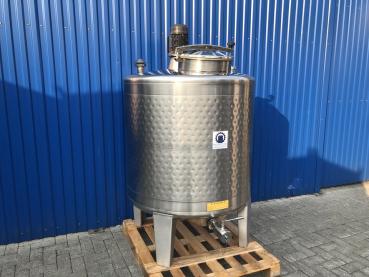

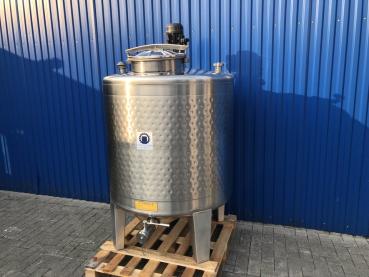

1000L stainless steel vessel with thermoplate and propeller agitator

General

Item number	MTL1000TPRWP
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	80°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRWP
Type of item	Factory new stainless steel agitator vessel with double jacket

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and venting valve, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	1410 rpm
Stirrer	Propeller
Miscellaneous	Voltage 3ph 400V

£ 5,132.61

excl. 20% tax

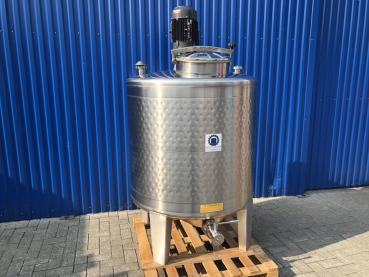

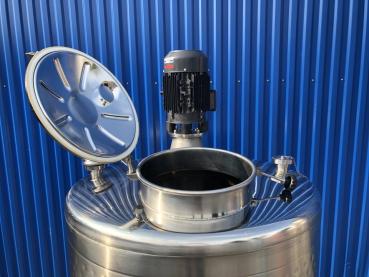

1000L stainless steel vessel with thermoplate and dissolver agitator

General

Item number	MTL1000TPRWD
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRWD
Type of item	Factory new stainless steel agitator vessel with double-jacket

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and venting valve, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	5.5 kW
Speed	1410 rpm
Stirrer	Dissolver disc
Miscellaneous	Voltage 3ph 400V

£ 6,776.52

excl. 20% tax

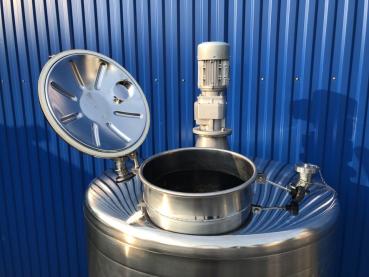

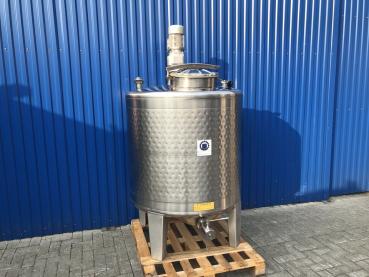

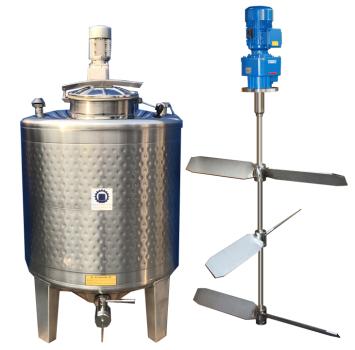

1000L stainless steel vessel with thermoplate and beam stirrer agitator

General

Item number	MTL1000TPRWS
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRWS
Type of item	Factory new stainless steel agitator vessel with double-jacket

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and venting valve, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	2x beam stirrers
Miscellaneous	Voltage 3ph 400V

£ 7,059.96

excl. 20% tax

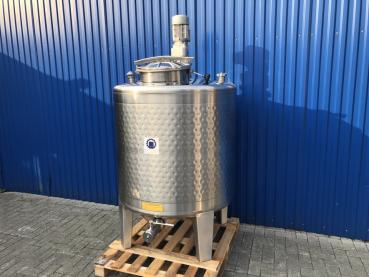

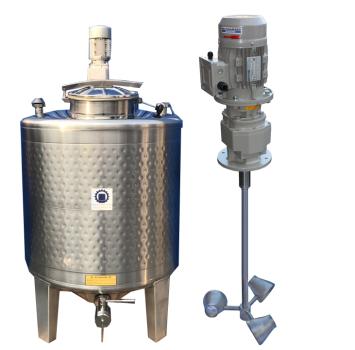

1000L stainless steel vessel with thermoplate and cone stirrer agitator

General

Item number	MTL1000TPRWB
Condition	Factory new
Capacity	1000 l
Maximum density	1.5 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1000mm
Height outlet to floor	320mm
Total height	1570mm (plus agitator motor)
Total width	1084mm
Height of feet	430mm

Description

Item number	MTL1000TPRWB
Type of item	Factory new stainless steel agitator vessel with double-jacket

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø400mm with clamping handles, inlet DN50 DIN11851, aeration and venting valve, thermoplate around the cyl. part, operating pressure max. +3Bar

Features

Design	Double-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve

Agitator

Agitator	Yes
Number of agitators	1
Positioning	On top
Power	0.75 kW
Speed	190 rpm
Stirrer	Beaker stirrer
Miscellaneous	Voltage 3ph 400V

£ 7,174.32

excl. 20% tax

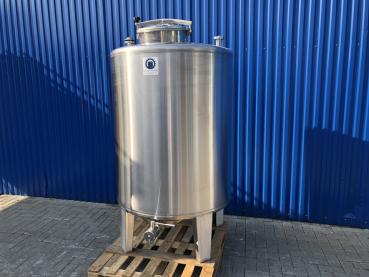

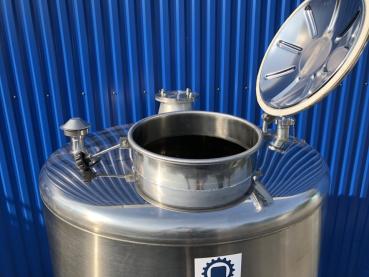

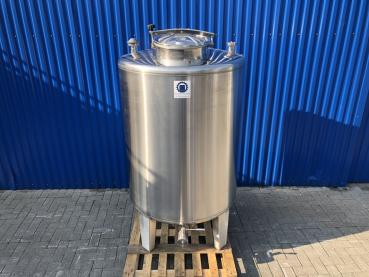

1305L stainless steel vessel

General

Item number	MTL1250RW
Condition	Factory new
Capacity	1305 l
Maximum density	1.4 Kg/dm³
Delivery time	Ex stock 2-3 days, otherwise approx. 25 business days

Technical data and dimensions

Max. operating pressure acc. to type plate	Atmospheric
Maximum operating temperature	95°C
Inner diameter	1080mm
Outer diameter	1084mm
Cylindrical height	1250mm
Height outlet to floor	300mm
Total height	2005mm (plus agitator motor)
Total width	1084mm
Height of feet	425mm

Description

Item number	MTL1250RW
Type of item	Factory new stainless steel vessel with agitator mounting

Material

In contact with product	Stainless steel AISI304
Other parts	Stainless steel AISI304

Design

Type of construction	Standing on feet
Number of fixations	4 feet
Material feet/castors	Stainless steel AISI304
Extras	Dome cover Ø 400mm, aeration and deaeration valve, DN50 DIN11851 connection piece, agitator flange connection piece IEC200

Features

Design	Single-jacket
Insulated	No
Pressure vessel	No
Spray head(CIP)	No
Technical drawing / documentation	Yes
Type plate	Yes
Outlet	DN50 DIN11851
Outlet valve	Ball valve or disc valve (selectable)

Agitator

Agitator

£ 3,397.21

excl. 20% tax

1 to 16 (from a total of 32)
